DOOR OPENING
ANGLE |
Dimension "A" | |
|---|---|---|
| inches | (mm.) | |
| TO 100° | 5-7/8 | 150 |
| 100° TO 180° | 3-1/8 | 80 |
| PREPARATION FOR FASTENERS | ||||
|---|---|---|---|---|
| Fastener | Opening | Drill Sizes | ||
| 1/ | /4"-20 Machine Screw |
Metal Door
or Frame |
#7 [.201" (5.10mm.) dia.] drill
1/4"-20 UNC Tap |
|
| Sex nuts and bolts |
Wood
or Composite Door |
3/8" (9.50mm) through;
9/16" (15.00mm.) diameter X 1/8" (3mm.) deep on face opposite to closer |
||
|
Through bolts
and grommet nuts |
From face opposite to closer: 9/32" (7.00mm.) through; 3/8" (9.50mm.) diameter X 1/2" (13mm.) deep; 5/8" (16.00mm.) diameter X 1/8" (3mm.) deep | |||

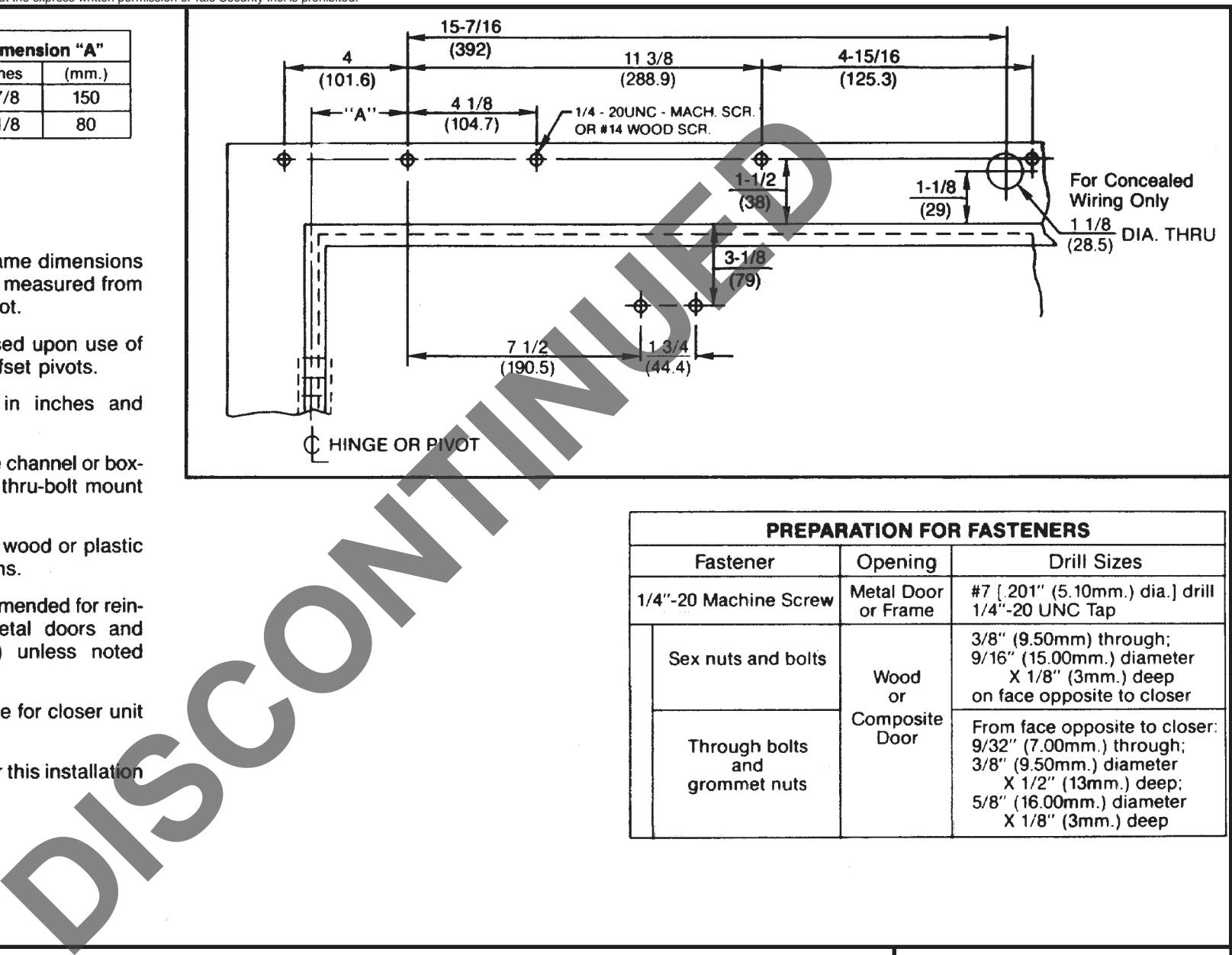

4220MPO or 4230MPO Combination Door Closer-Holder and Releasing Device Drop Application with Double Lever Closer Arm Stop (Push) Side of Door Installation
