ASSA ABLOY ACCENTRA 4220, 4230 Master (MPDO) or Slave (MPSO) Series, Drop Application w, Double_7342-1364

Yale® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company. Copyright © 1986, 2009, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.

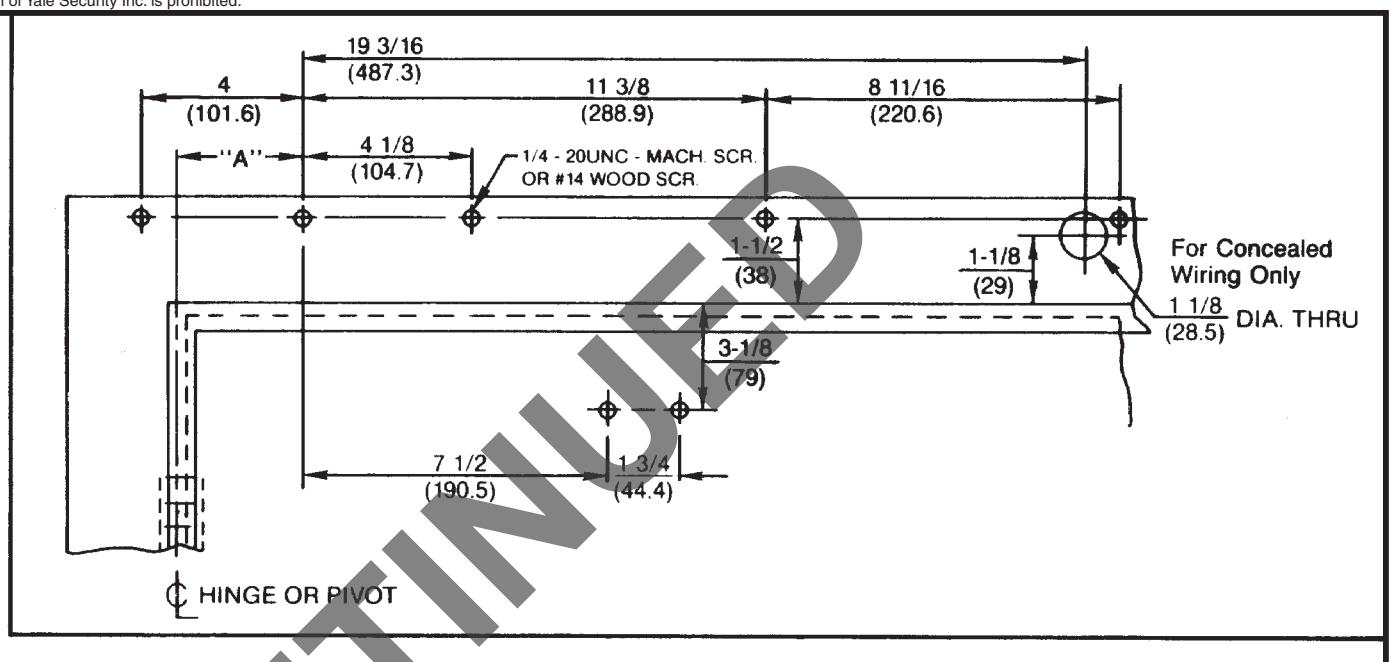

DOOR OPENING ANGLE	Dimension "A"
	inches	(mm.)
TO 100°	5-7/8	150
100° TO 180°	3-1/8	80

Notes:

• Do not scale drawing.
• Left hand door shown. Same dimensions apply for right hand door, measured from centerline of hinge or pivot.
• Template information based upon use of 4-1/2" hinges or 3/4" offset pivots.
• Dimensions are shown in inches and millimeters (mm.).
• Hollow metal doors require channel or boxtype reinforcement when thru-bolt mount is specified.
• Sex-nuts are required for wood or plastic faced fire-door installations.
• Minimum thickness recommended for reinforcements in hollow metal doors and frames is .1046" (2.66) unless noted otherwise.
• Minimum ceiling clearance for closer unit is 2" (51).
• Maximum frame reveal for this installation

This template cov Combination Doo
MASTER UNIT	SLAVE UNIT
4220MPDO	4220MPSO
4230MPDO	4230MPSO

PREPARATION FOR FASTENERS
Fastener		Opening	Drill Sizes
1/	4"-20 Machine Screw	Metal Door or Frame	#7 [.201" (5.10mm.) dia.] drill 1/4"-20 UNC Tap
	Sex nuts and bolts	nd bolts Wood or	3/8" (9.50mm) through; 9/16" (15.00mm.) diameter X 1/8" (3mm.) deep on face opposite to closer
	Through bolts and grommet nuts	Composite Door	From face opposite to closer: 9/32" (7.00mm.) through; 3/8" (9.50mm.) diameter X 1/2" (13mm.) deep; 5/8" (16.00mm.) diameter X 1/8" (3mm.) deep

4220MPDO, 4230MPDO, 4220MPSO, and 4230MPSO Combination Door Closer-Holder and Releasing Device Drop Application with Double Lever Closer Arm Stop (Push) Side of Door Installation

Yale^®

100 Yale Ave. Lenoir City, TN 37771-3226 1-800-438-1951

www.yalecommercial.com

TEMPLATE NUMBER 7342-1364

DATE

07-09
