ASSA ABLOY ACCENTRA 4220, 4230 MPDO (Master) or MPSO (Slave), Double Lever, Push Side Installation_7342-1354

Yale ® is a registered trademark of the respective ASSA ABLOY Group company. Copyright © 2010, ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of the respective ASSA ABLOY Group company is prohibited.

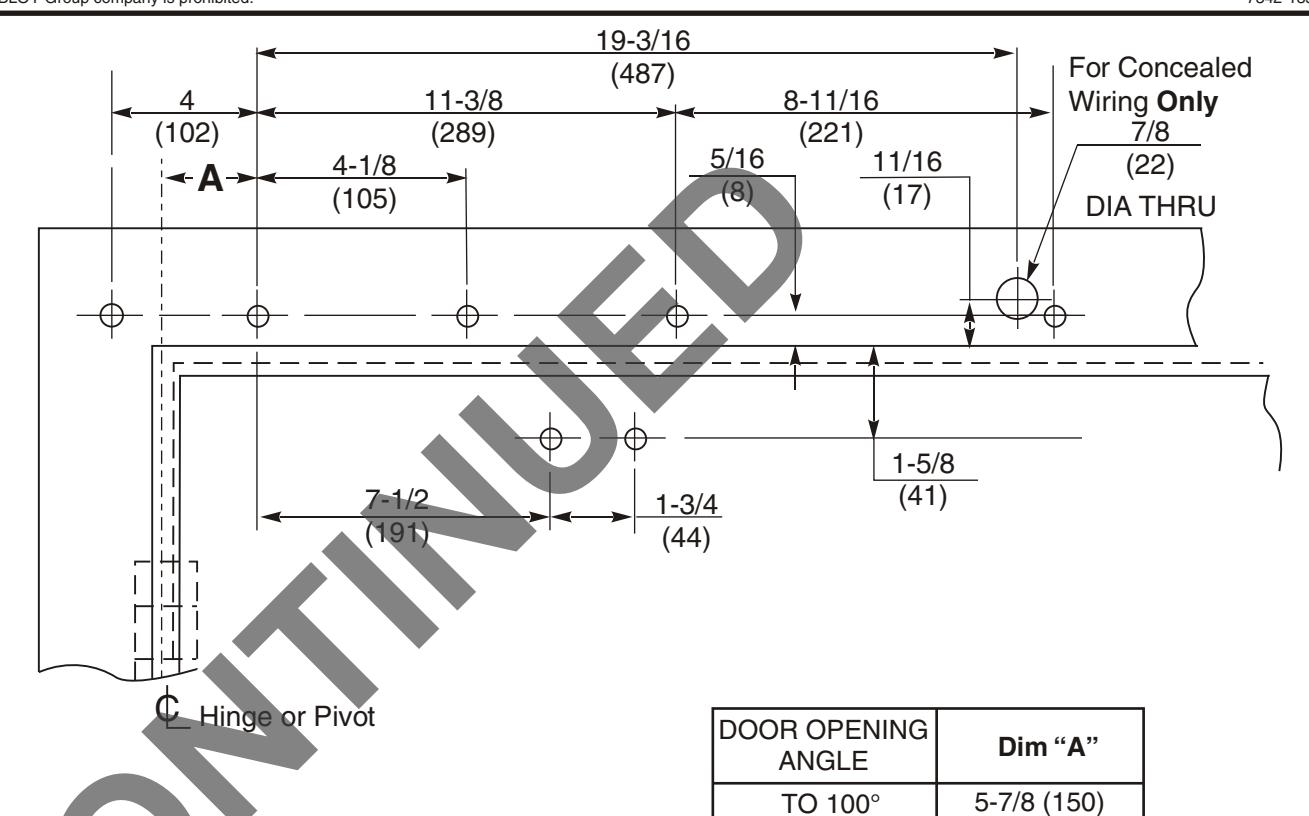

Notes:

• Do not scale drawing.
• Left hand door shown. Same dimensions apply for right hand door, measured from centerline of hinge or pivot.
• Template information based upon use of 4-1/2" hinges or 3/4" offset pivots.
• Dimensions are shown in inches and millimeters (mm).
• Hollow metal doors require channel or box-type reinforcement when thru-bolt mount is specified.
• Sex-nuts are required for wood or plastic faced firedoor installations.
• Minimum thickness recommended for reinforcements in hollow metal doors and frames is .1046 (2.66) unless noted otherwise.
• Minimum ceiling clearance for closer unit is 3-1/4" (83).
• Maximum hinge side frame reveal is 7" (180).

Preparation for Fasteners
	Fasteners D	oor or Fran	ne Drill-Sizes
Standard	1/4" - 20 machine screw	Metal	Drill: #7 (0.201" dia.) Tap: 1/4" - 20
	Sleeve nuts and bolts	Hollow Metal	9/32" (7 mm) through; 3/8" (9.5 mm) door face opposite to closer
		Aluminum or Wood	3/8" (9.5 mm) through
Optional	Through-bolts and grommet-nuts	All	9/32" (7 mm); 3/8" (9.5 mm) dia. x 3/8" (9.5 mm) deep on door opposite to closer

This template covers the following Combination Door Closer-Holders:

MASTER 4220MPDO 4230MPDO

SLAVE 4220MPSO 4230MPSO

Yale Series 4220MPSO and 4220 MPDO or 4230MPSO and 4230MPDO

Combination Door Closer-Holder and Releasing Device with Multi Point Selective Hold Open Double Lever Closer Arm Stop (Push) Side of Door Installation

3-1/8 (80)

100° TO 180°
