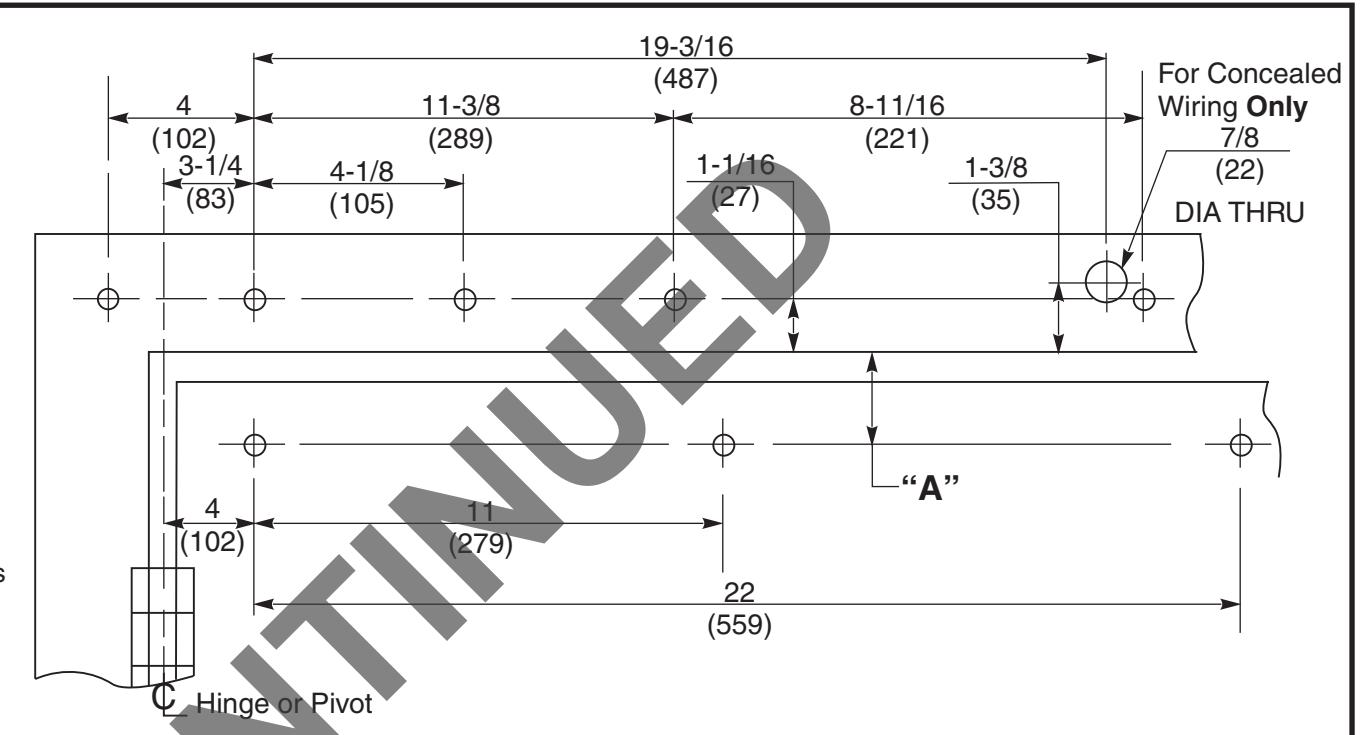

ASSA ABLOY ACCENTRA 4210, 4240, 4250 MPDO (Master) or MPSO (Slave), Pull Side Installation Template_7342-1351

Notes:

• Do not scale drawing.
• Right hand door shown. Same dimensions apply for left hand door, measured from centerline of hinge or pivot.
• Template information based upon use of 4-1/2 " hinges or 3/4 " offset pivots.
• Dimensions are shown in inches and millimeters (mm).
• Hollow metal doors require channel or box-type reinforcement when thru-bolt mount is specified.
• Sex-nuts are required for wood or plastic faced firedoor installations.
• Minimum thickness recommended for reinforcements in hollow metal doors and frames is .1046 (2.66) unless noted otherwise.
• Minimum ceiling clearance for closer unit is 4" (102).
• Maximum hinge side frame reveal is 1/8" (3) for Series 4210 and 4240.

Preparation for Fasteners
	Fasteners D	oor or Fran	me Drill-Sizes
Standard	1/4" - 20 machine screw	Metal	Drill: #7 (0.201" dia.) Tap: 1/4" - 20
	Sleeve nuts and bolts	Hollow Metal	9/32" (7 mm) through; 3/8" (9.5 mm) door face opposite to closer
		Aluminum or Wood	3/8" (9.5 mm) through
Optional	Through-bolts and grommet-nuts	All	9/32" (7 mm); 3/8" (9.5 mm) dia. x 3/8" (9.5 mm) deep on door opposite to closer

Series	Arm Type	Max Degree of		Dim "A"
		Door Swing †	Hold Open	DIIII A
4210	Rigid	180°	175°	1-3/16 (30mm)
4240	Connected-Free-Swing	180°		1-3/16 (30mm)
4250	Double Egress	140° ‡	135°	1-13/16 (46mm)

• $\backslash dagger$ For doors swinging beyond 125°, buffer assembly should not be used. An auxiliary door stop is required.
• ‡ Door swing may be limited by frame or wall conditions.

Yale Series 4210 Rigid, 4240 Connected-Free-Swing, or 4250 Double Egress Slide Arm with Suffix MPDO (Master Unit) or MPSO (Slave Unit) Combination Door Closer-Holder and Releasing Device with Multi Point Hold Open Hinge (Pull) Side of Door Installation
