ASSA ABLOY ACCENTRA 420F Trim for 1800(F), 2100(F), and 6100ED(F) Series Wide Stile Rim, SquareBolt_7400-1420

NOTES:

• 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
• 2. Do not scale drawing.
• 3. Dimensions are in inches (mm).
• 4. LHR door shown. Preparation is typical for both door hands.
• Prepare mounting holes when installing trim. 5.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

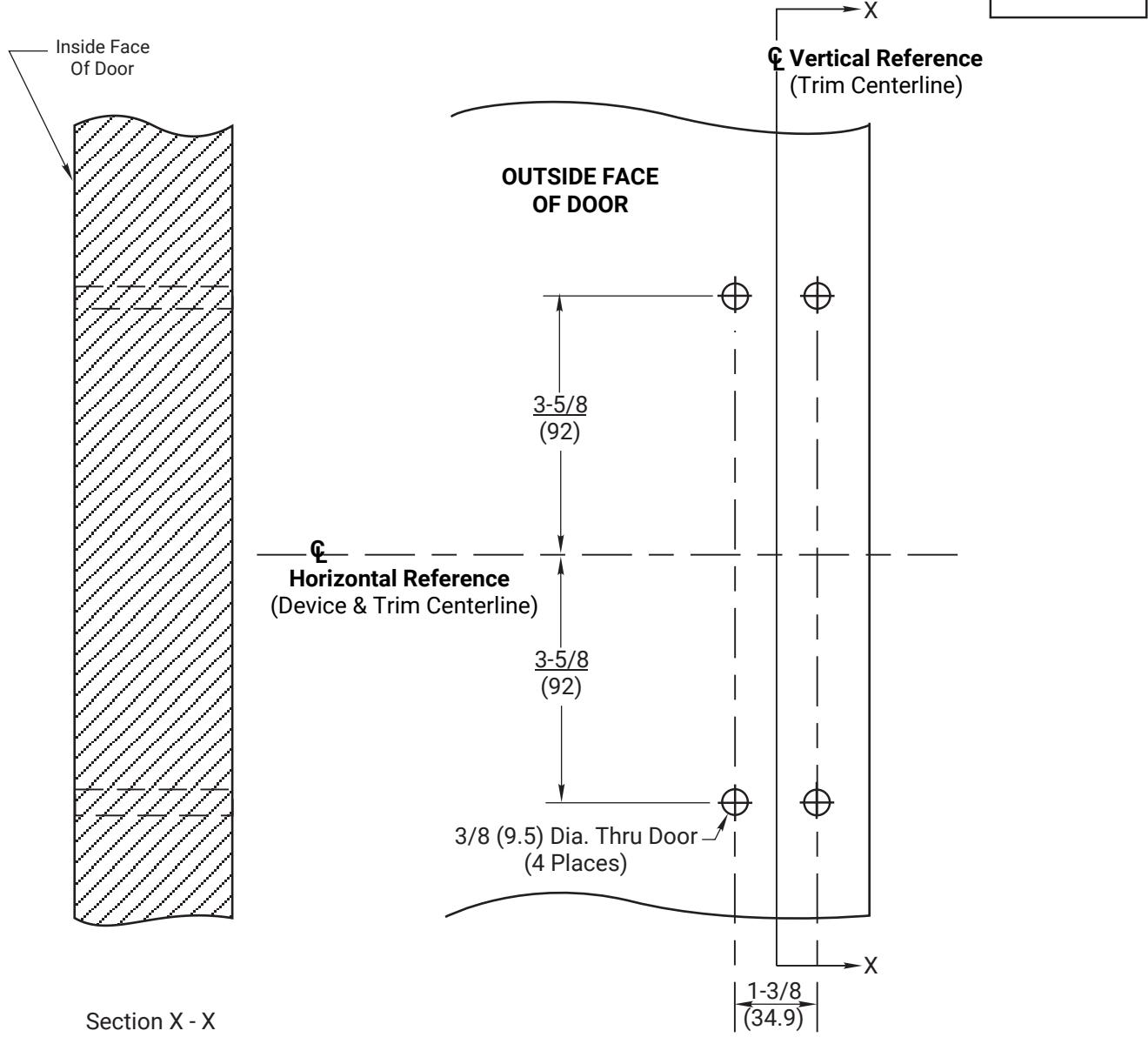

420F Trim

With 1800(F), 6100(F) or 6170(F) Series Rim and Vertical Rod Exit Devices

Wood Door Preparation

1-855-557-5078 Ext. 2 www.accentra-assaabloy.com

Copyright © 2015, 2024, ASSA ABLOY ACCENTRA™ Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

06/15

SUPERSEDES DO NOT SCALE DRAWING

7400-1420 TEMPLATE NUMBER

DATE 04-24
