ASSA ABLOY ACCENTRA 406STP, 406EP-STP, 90 Wall Pocket App. Template_80-7344-0505-010
Open the original PDF document
View PDF

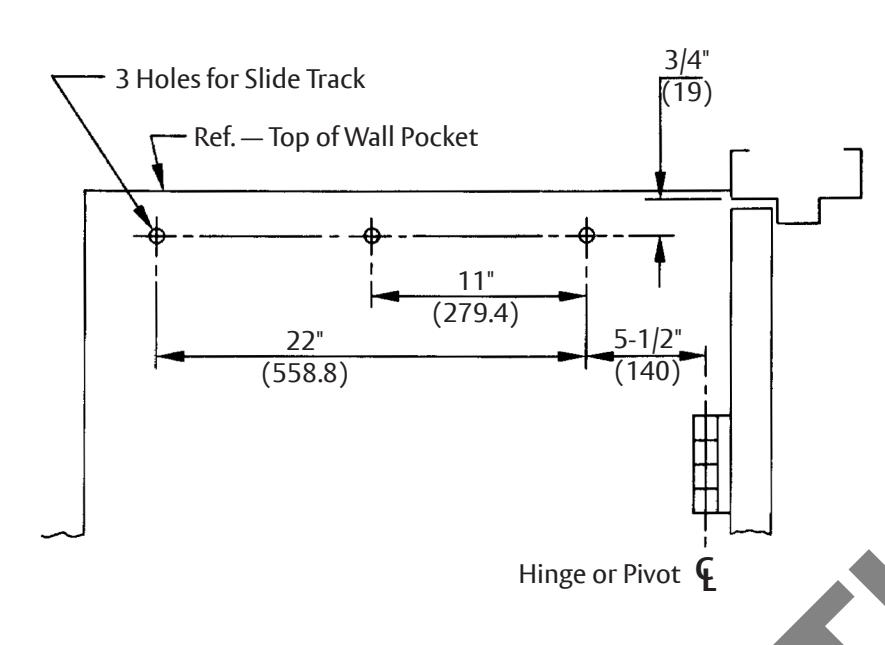

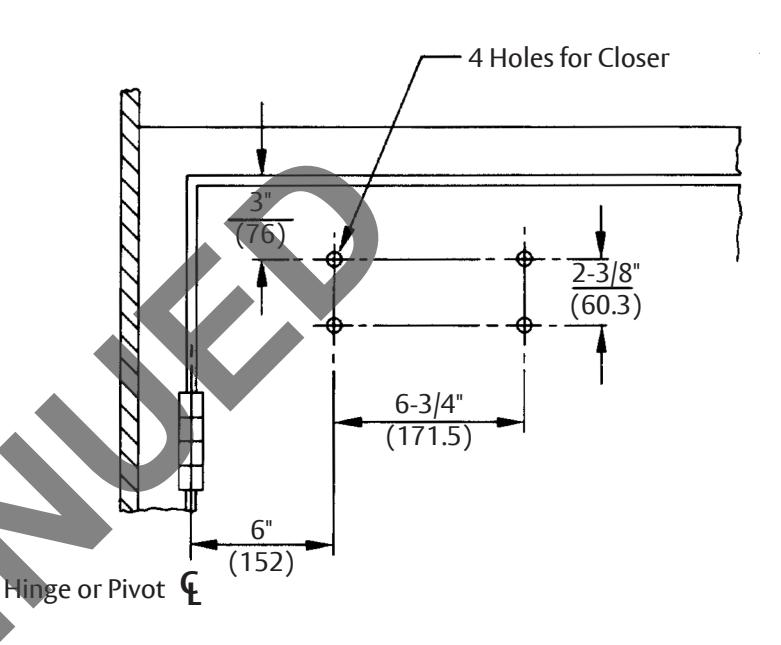

2-1/4" (57) to 4-1/4" (108) Pocket Depth
IMPORTANT
Wall Reinforcement (by others) Must Be Sufficent To Withstand Door Action Slide Track Door
| Preparation for Fasteners | |||
|---|---|---|---|
| Fasteners | Door or Frame | Drill | |
| #14 type "A" Sheet Metal Screw | Wood | 7/32" (5.5 mm.) | |
| 1/4-20 machine screw | Metal |
#7 (.201" dia.) or 5.10 mm. drill:
tap: 1/4-20 |
|
| SNB (optional) | Hollow Metal |
9/32" (7.00 mm.) thru;
3/8" (9.50 mm.) door face opposite to closer |
|
|
Aluminum or
Wood |
3/8" (9.50 mm.) thru | ||
| TBGN (optional) | All |
9/32" (7.00 mm.) thru;
3/8" (9.50 mm.) dia. x 3/8" (10 mm.) deep, door face opposite to closer |
|
Notes:
- 1. Do not scale drawing
- 2. Right hand door shown.
- 3. Dimensions shown in inches (mm.).
| Closer Sizing Chart | ||
|---|---|---|
| Door Width | Closer | |
| Up to 42" - (1.07 mm.) | 406STP | |
| 43" to 48" - (1.09 mm to 1.22 mm) | 406EP-STP | |
Experience a safer and more open world
Copyright © 2003, 2024, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
406STP or 406EP-STP Series Closer Slide Track Closer for 90° Wall Pocket Installation For Pocket Depths 2-1/4" to 4-1/4" (57mm to 108mm)
Template Number: 80-7344-0505-010 Sheet: 1 of 1
Date: 01/24
