ASSA ABLOY ACCENTRA 4020 & 4420, Holder, Stop Arm, Non-Hold Open & Hold Open Installation_80-9344-2205-010
Open the original PDF document
View PDF
Installation Instructions
80-9344-2205-010 (09-11)
An incorrectly installed or improperly
These instructions should be followed to avoid the possibility of
misapplication or misadjustment.
adjusted door closer can cause property damage or personal injury.
| Series | Function | Sizing |
|---|---|---|
| Para | allel Rigid Arı | m Units |
| DD 40V | NILIO | O TUDU ( |
Model Numbers Included:
PR40 X NHO 2 THRU 6 PR140 X HO " PR4400 NHO 1-6 PR4410 HO "
Holder-Stop Units 402 X NHO 2 THRU 6
4420 NHO 1-6 4420T HO "
HO
402 X T
"X" Designates closer size 2, 3, 4, 5, or 6

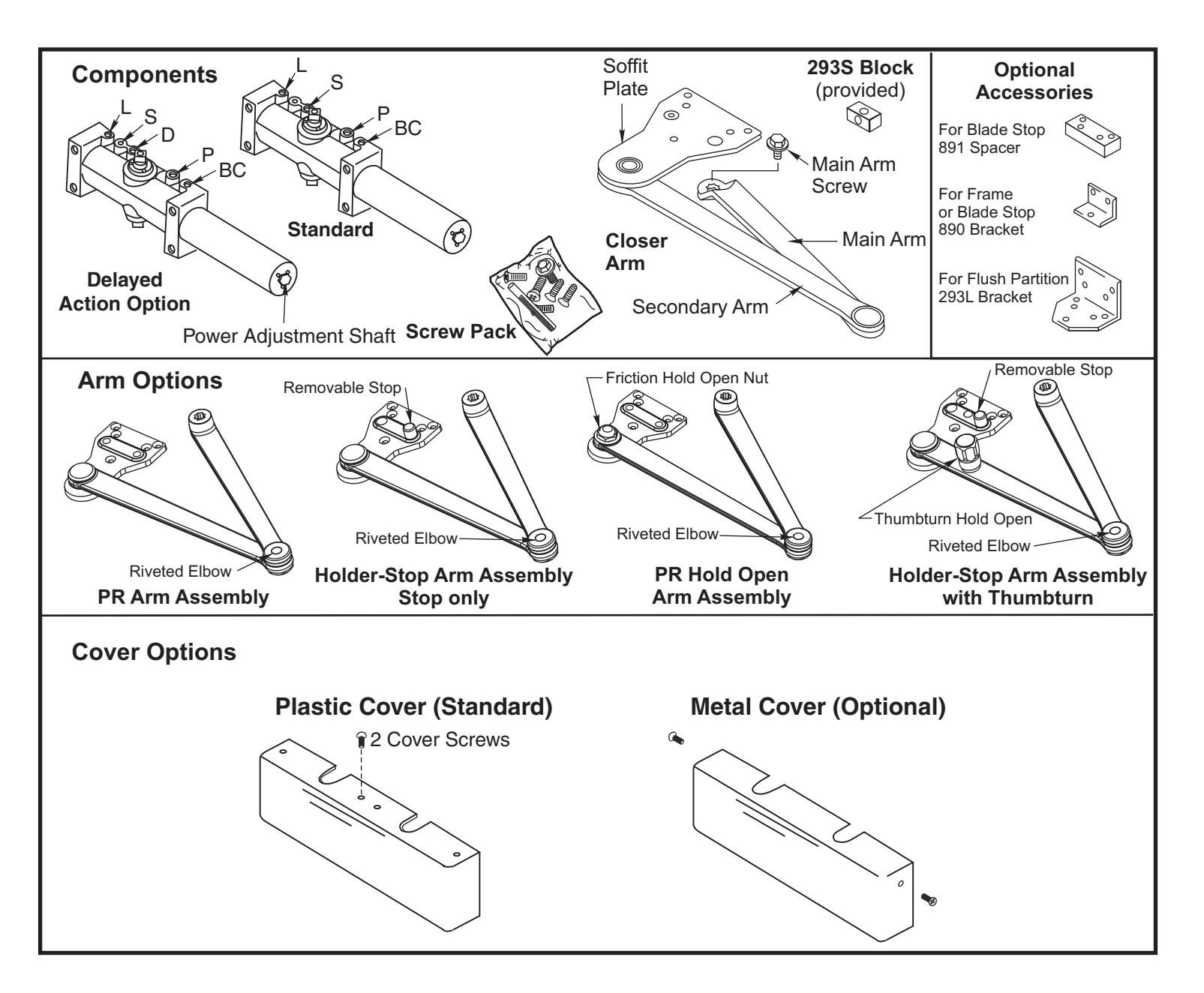

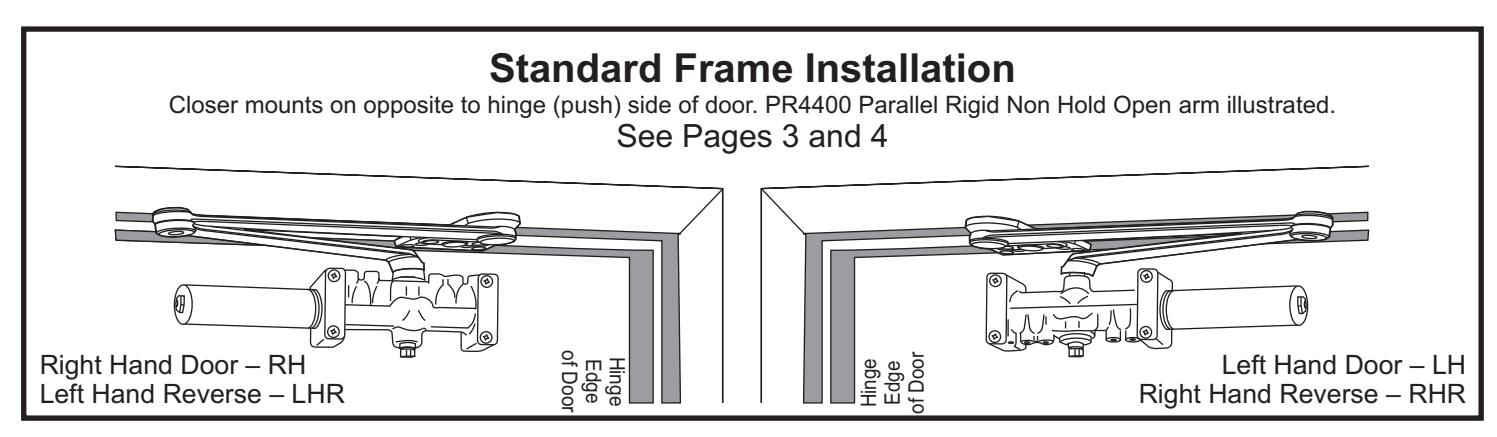

Parallel Rigid Arm Door Closers (PR) Holder-Stop Arm Door Closers
Additional Closer Options:
- "DL" indicates Delayed Action closing.
- Hold-Open function components are handed
- "T" indicates Thumbturn actuated Hold-Open control.
Optional Accessories:

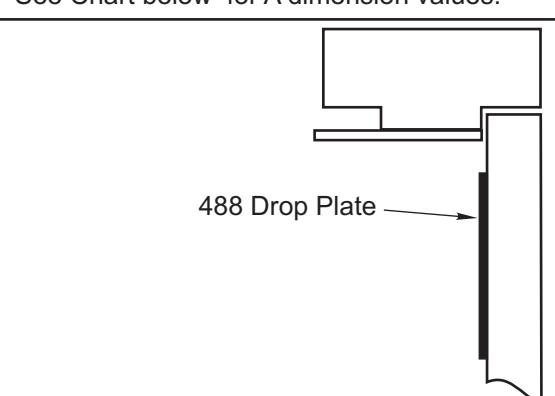

- 488 Drop Plate
- 293L, 890, 891 Soffit Plate Accessories.
NOTE: For special applications a separate door and frame preparation template is packed with these instructions. In those cases, use this instruction sheet for installation sequence and closer adjustments only.
| Preparation for Fasteners | ||||||||
|---|---|---|---|---|---|---|---|---|
|
Door or Frame
Drill-Sizes Fasteners |
||||||||
| Standard |
Aluminum
or Metal |
No drill required | ||||||
| Self-Drilling Screw | Wood |
3/16" (4.30 mm)
Pilot hole required |
||||||
| 1/4" - 20 machine screw | Metal |
Drill: #7 (0.201" dia.)
Tap: 1/4" - 20 |
||||||
| Sleeve nuts and bolts |
Hollow
Metal |
9/32" (7 mm) through;
3/8" (9.5 mm) door face opposite to closer |
||||||
|
Aluminum
or Wood |
3/8" (9.5 mm) through | |||||||
| Optional |
Through-bolts and
grommet-nuts |
All |
9/32" (7 mm);
3/8" (9.5 mm) dia. x 3/8" (9.5 mm) deep on door opposite to closer |
|||||
- Select angle of opening and use dimensions shown on Page 4 and Dimension Chart below to locate 4 holes on door for closer body (or 4 holes for 488 Drop Plate, Page 5, only if required) and 5 holes on stop/rabbet for Soffit Plate (or 4 holes on frame transom for 293L bracket, only if required). For applications not covered in these instructions, a separate template will be required.
- Prepare door and frame for fasteners using "Preparation for Fasteners" chart on Page 2.

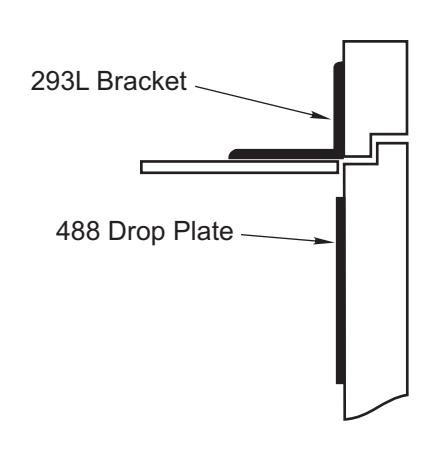

- Mount 488 Drop Plate to door ... only if used (see Page 5).
- Install closer body to door, or 488 Drop Plate, with power adjustment shaft away from hinge edge of door and adjustment valves:
Down for Left Hand Up for Right Hand
Check arm handing for all CLP and PR arms with Hold open Feature.
- CLP Arms are shipped as left hand for right hand doors, switch positions of soffit plate stop and Hole Plug.
- PR Hold Open Arms are handed and not reversible. See handing marks on soffit plate.
- CPS arms only: With door partially open to allow clearance, install CPS arm kit to arm's soffit plate.
| Power Adjustment Chart | |||||||
|---|---|---|---|---|---|---|---|
| Maximum | Maximum | 4400 Series Only | |||||
|
Interior
Door Size |
Exterior
Door Size |
Full Clockwise Turns of | |||||
|
inches
(mm) |
inches
(mm) |
Closer Power Adjustment
Nut (from "0" turns) |
|||||
|
32
(0.81) |
28
(0.70) |
5 | |||||
|
36
(0.91) |
34
(0.86) |
8-1/2 | |||||
|
42
(1.07) |
38
(.96) |
11 | |||||
|
52
(1.32) |
42
(1.07) |
13-1/2 | |||||
|
60
(1.52) |
48
(1.22) |
16-1/2 | |||||
NOTE: Maximum of 16-1/2 turns (360°) of Power Adjustment Nut. Closer is shipped set at 8 turns from the factory.

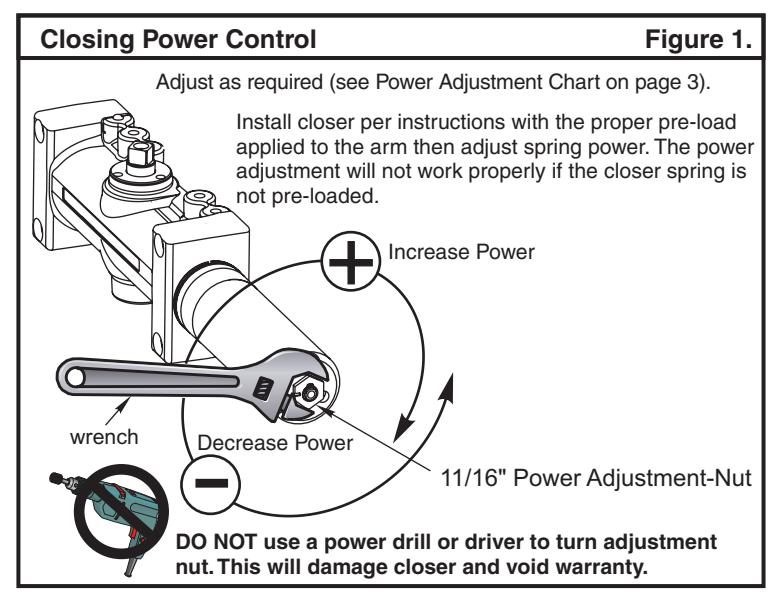

Install closer per instructions with the proper pre-load applied to the arm then adjust spring power. The power adjustment will not work properly if the closer spring is not pre-loaded.
DO NOT use a power drill or driver to turn adjustment nut.This will damage closer and void warranty.
-

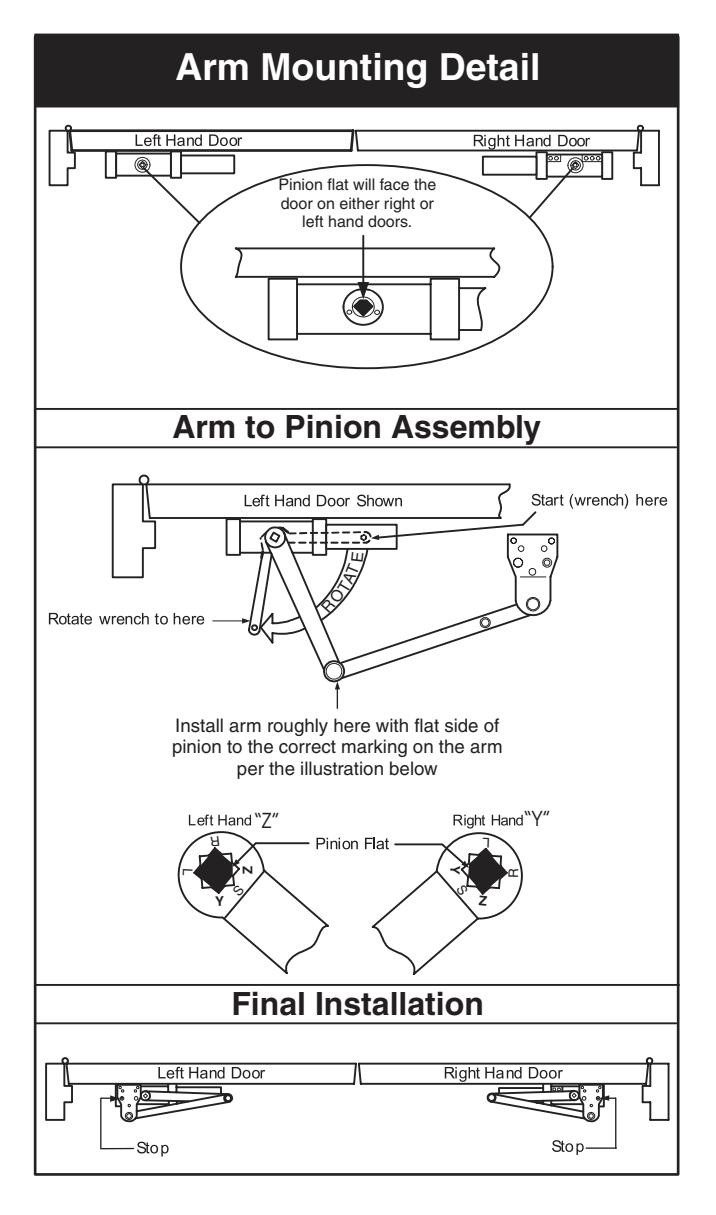

using a wrench, rotate the pinion shaft at least 50° to permit alignment of the
Pinion Flat
with the proper arm mark: Install Main Arm: Close valves
('S/D'
or
'S')
and
'L'
, then
- 'Z' for Left Hand 'Y' for Right Hand
See below for illustrations of this procedure.
- ('S/D' or 'S') and 'L' Reopen valves , that were closed in previous step.
- With door closed, align soffit plate with holes in frame and fasten to frame with screws. Use 293S and/or 891spacer blocks or 890 reinforcing bracket as required.
- Make adjustments to closer before installing cover. See Page 6 for closer adjustment instructions.
CAUTION: Do Not back valves out of closer body or a fluid leak will result.
Install cover.
| Installation Dimensions Chart | |||||||||||
| D | Dim Up to |
90°-
95° |
95°-
100° |
100°-
105° |
105°-
110° |
110°-
115° |
115°-
130° |
130°-
150° |
150°-
180° |
||
|
PR
PREFIX |
Α |
in.
(mm) |
8-3/4
(222) |
7-1/4
(184) |
6-1/4
(159) |
5-1/4
(133) |
|||||
| В |
in.
(mm) |
9-1/4
(235) |
7-3/4
(197) |
6-3/4
(171) |
5-3/4
(146) |
||||||
| С |
in.
(mm) |
9-3/8
(238) |
7-7/8
(200) |
6-7/8
(175) |
5-7/8
(149) |
||||||
|
CLP
& CPS PREFIX |
Α |
in.
(mm) |
10-1/8
(257) |
9-1/4
(235) |
8-5/8
(219) |
7-7/8
(200) |
7-3/8
(187) |
6-3/4
(171) |
|||
| В |
in.
(mm) |
10-5/8
(270) |
9-3/4
(248) |
9-1/8
(232) |
8-3/8
(213) |
7-7/8
(200) |
7-1/4
(184) |
||||
| С |
in.
(mm) |
10-3/4
(273) |
9-7/8
(251) |
9-1/4
(235) |
8-1/2
(216) |
8
(203) |
7-3/8
(187) |
||||

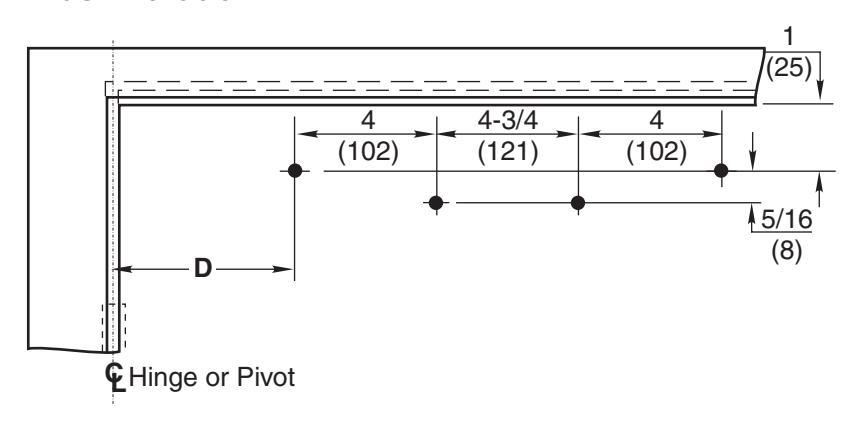

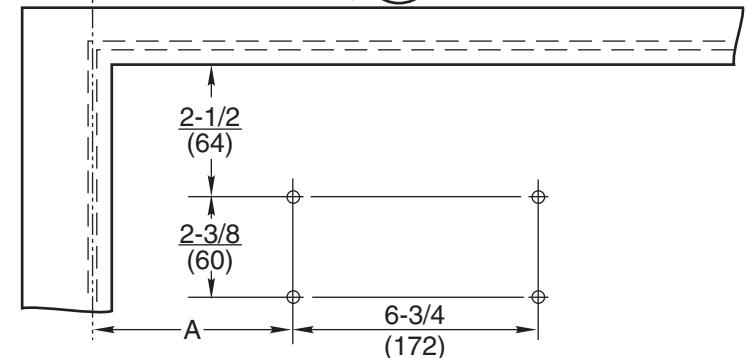

488 Drop Plate Mounting Holes

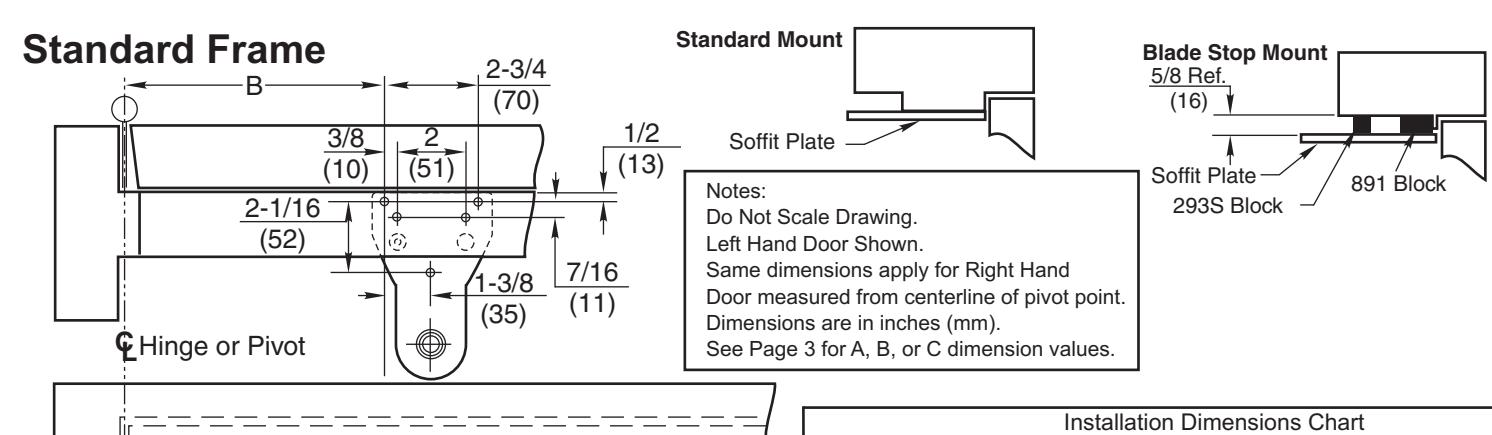

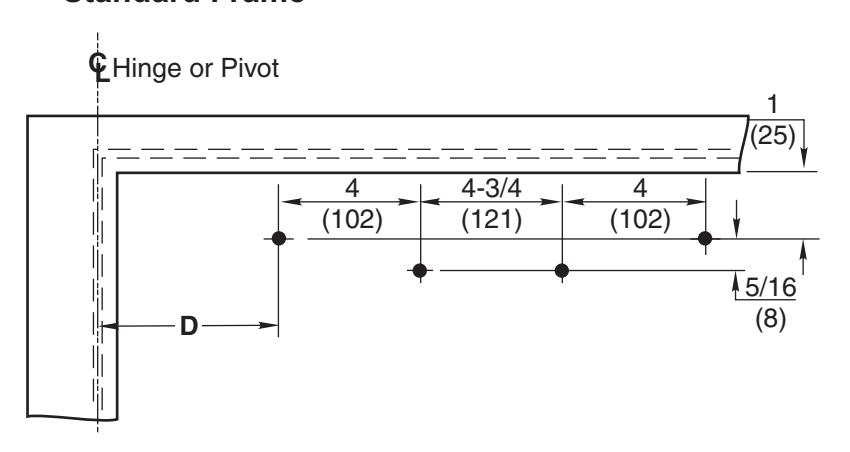

Standard Frame
Notes:
Left Hand Door Shown.
Same dimensions apply for Right Hand
Door measured from centerline of pivot point. Dimensions are in inches (mm).
See Chart below for A dimension values.

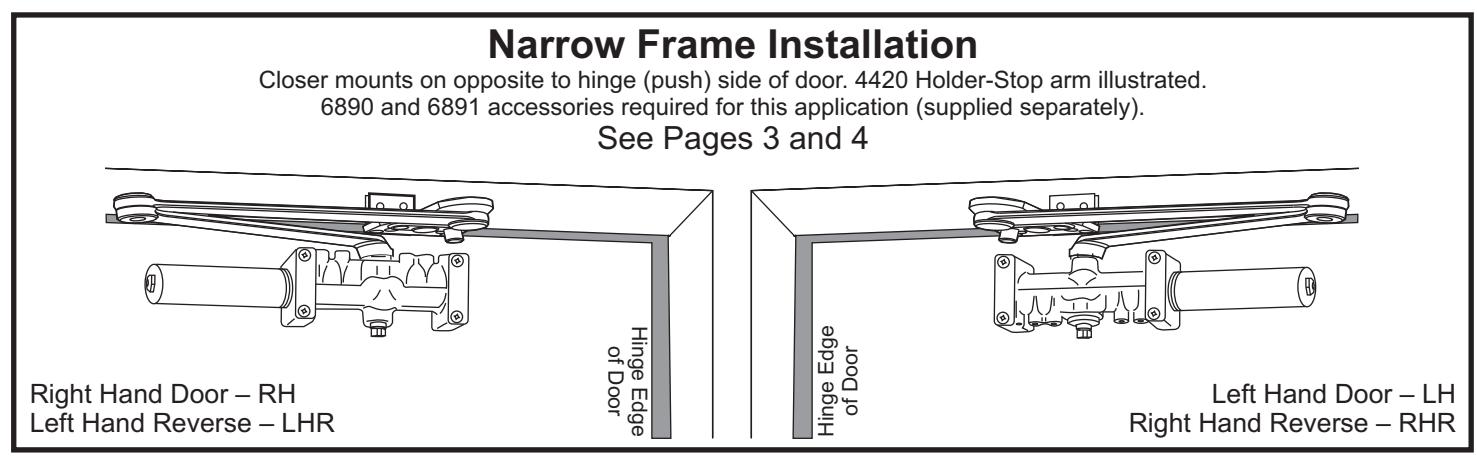

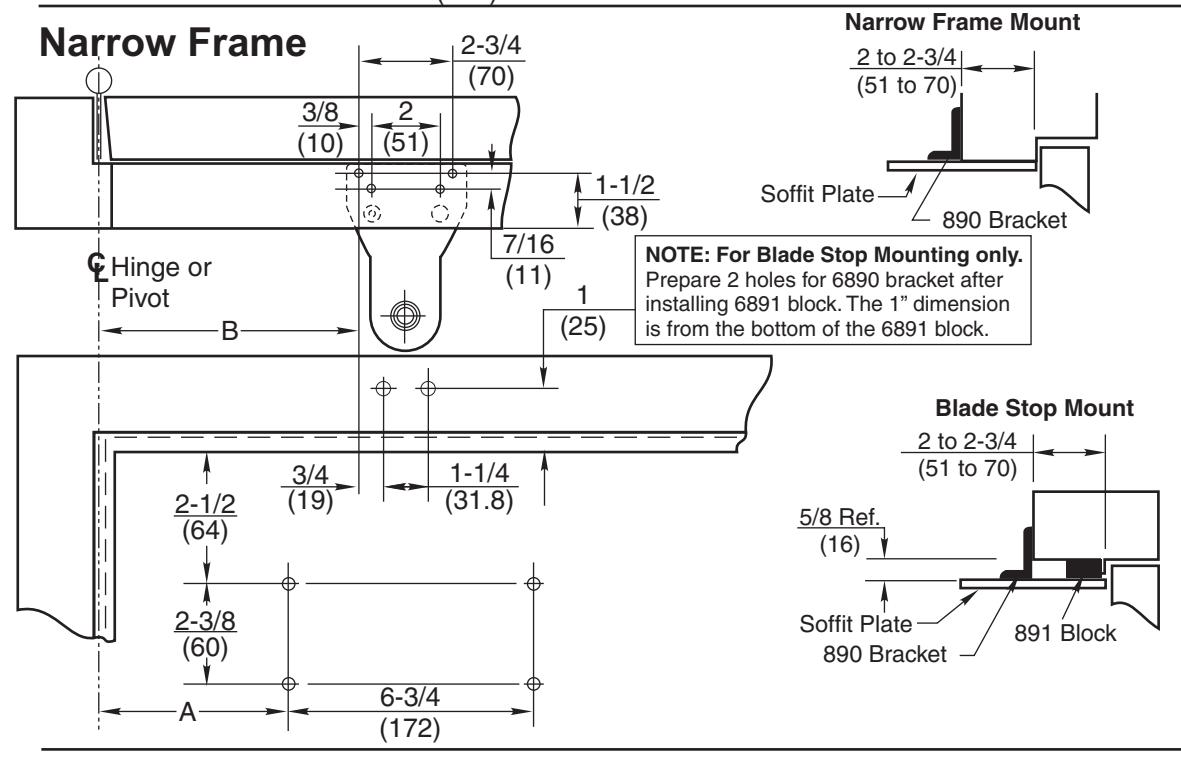

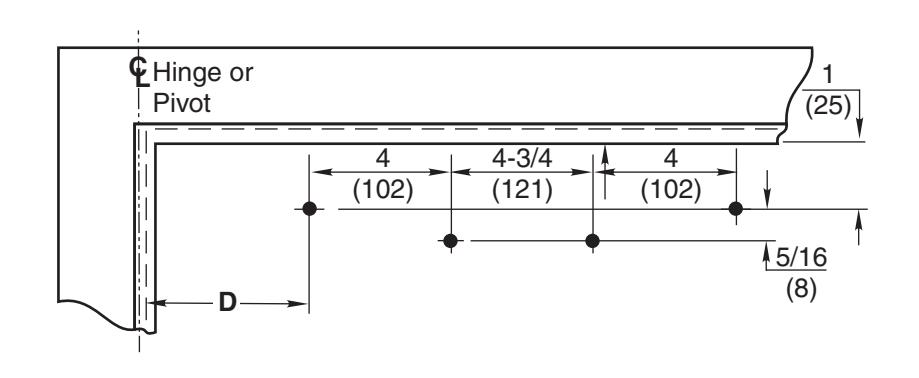

Narrow Frame

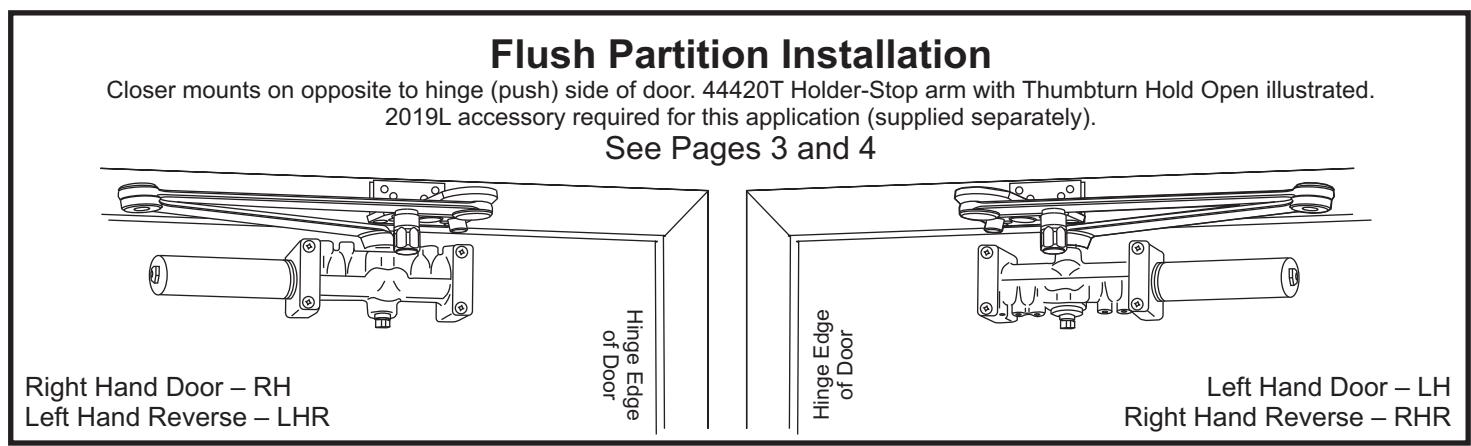

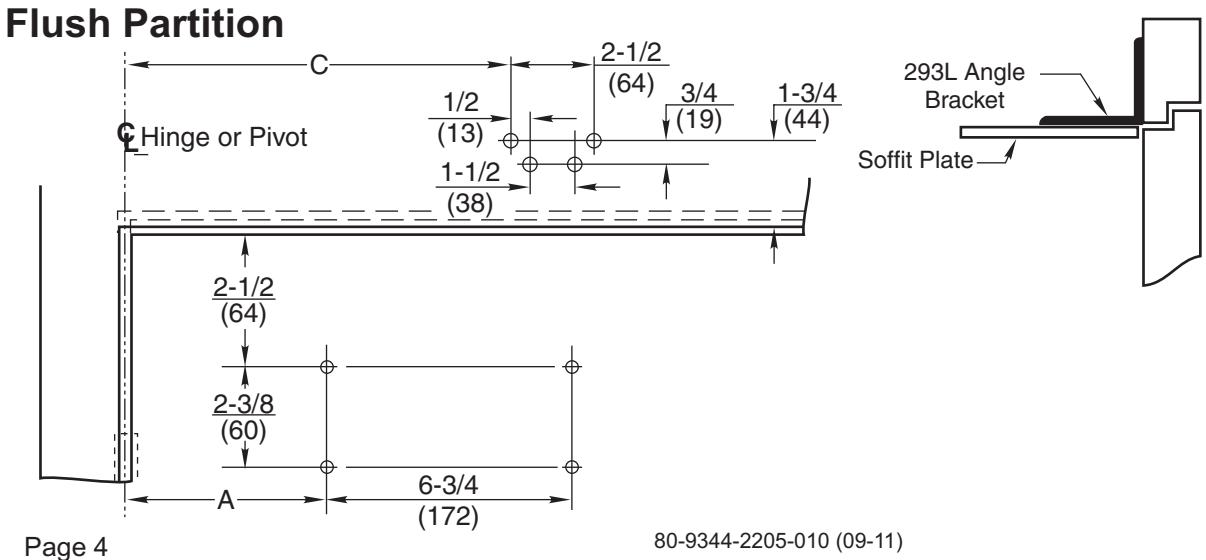

Flush Partition
| Installation Dimensions Chart | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dim | Up to 90° | 90°-95° | 95°-100° | 100° to 105° 105°-110° | 110°-115° | 115°-130° 130°-150° | 150°-180° | |||||
|
PR4400/
PR4410/ PR40X/ PR140X |
D | 8-1/2 (216) | 7 (178) | 6 (152) | 5 (127) | |||||||
|
4020/
4420/ 402X/ 442X |
inch (mm) | 9-7/8 (251) | 9 (229) | 8-3/8 (213) | 7-5/8 (194) | 7-1/8 (181) 6-1/2 (165) | ||||||

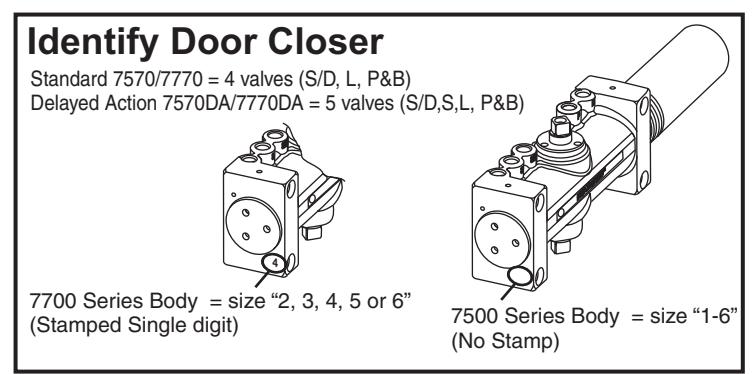

Unit Adjustment

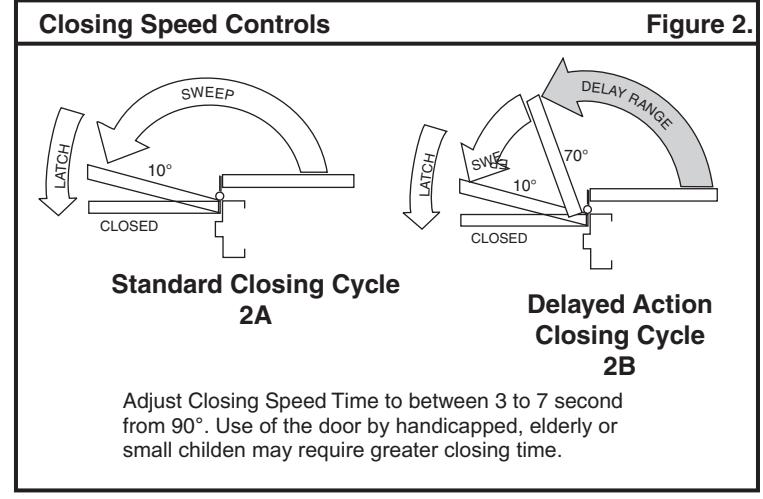

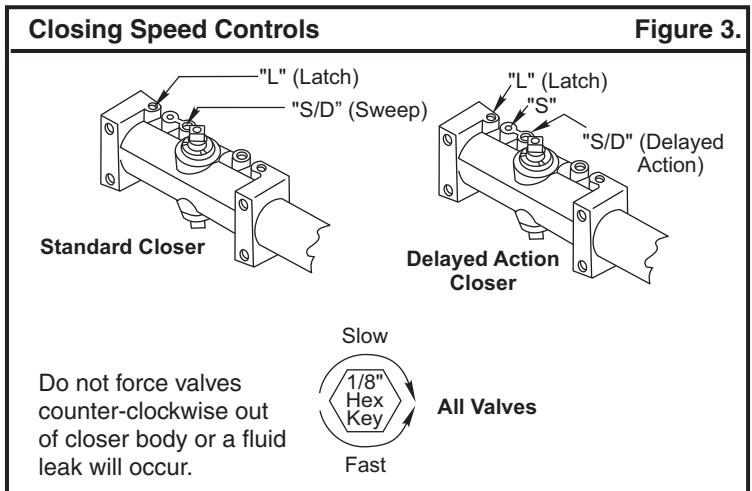

Closing Speed Controls (Figure 2A or 2B and 3.)
- Valve "S/D" Controls Sweep Range on Standard closer (or Delayed Range on Delayed Action closer).
- · Valve "L" Controls Latch Range.
- Valve "S" Controls Sweep only on Delayed Action closer.
Yale ® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company. Copyright © 2003, 2011, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.

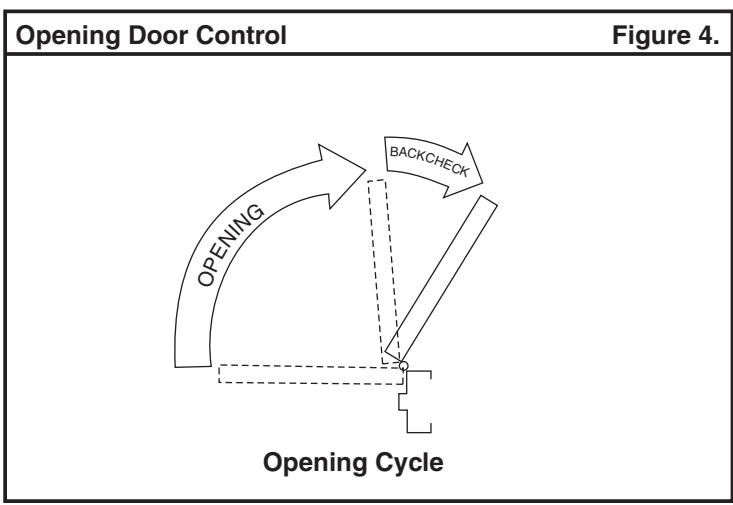

Opening Door Control (Figure 4.)

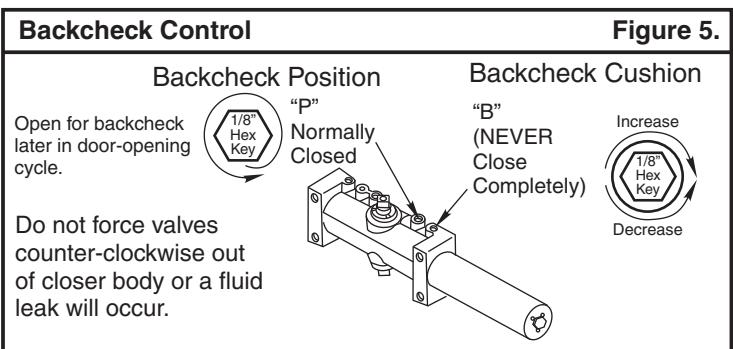

- Backcheck ("B") valve controls the hydraulic resistance to door opening. NEVER close this valve completely – it is not to provide a positive stop.
- Backcheck position ("P") valve controls the door angle where backcheck cushioning starts. Valve normally closed.
Hold Open Option
The Hold-Open feature is controlled by the knob located on the arm of the unit. Turning this knob clockwise will engage the Hold-Open mechanism and increase the Hold-Open force. Turning this knob counterclockwise will reduce the Hold-Open force and disengage the Hold-Open mechanism.
DECREASE -- INCREASE
Thumbturn Action (Units suffixed "T")
