ASSA ABLOY ACCENTRA 400PTO Support Unit, pull side installation Template_7348-1801

Notes:

• Do not scale drawing.

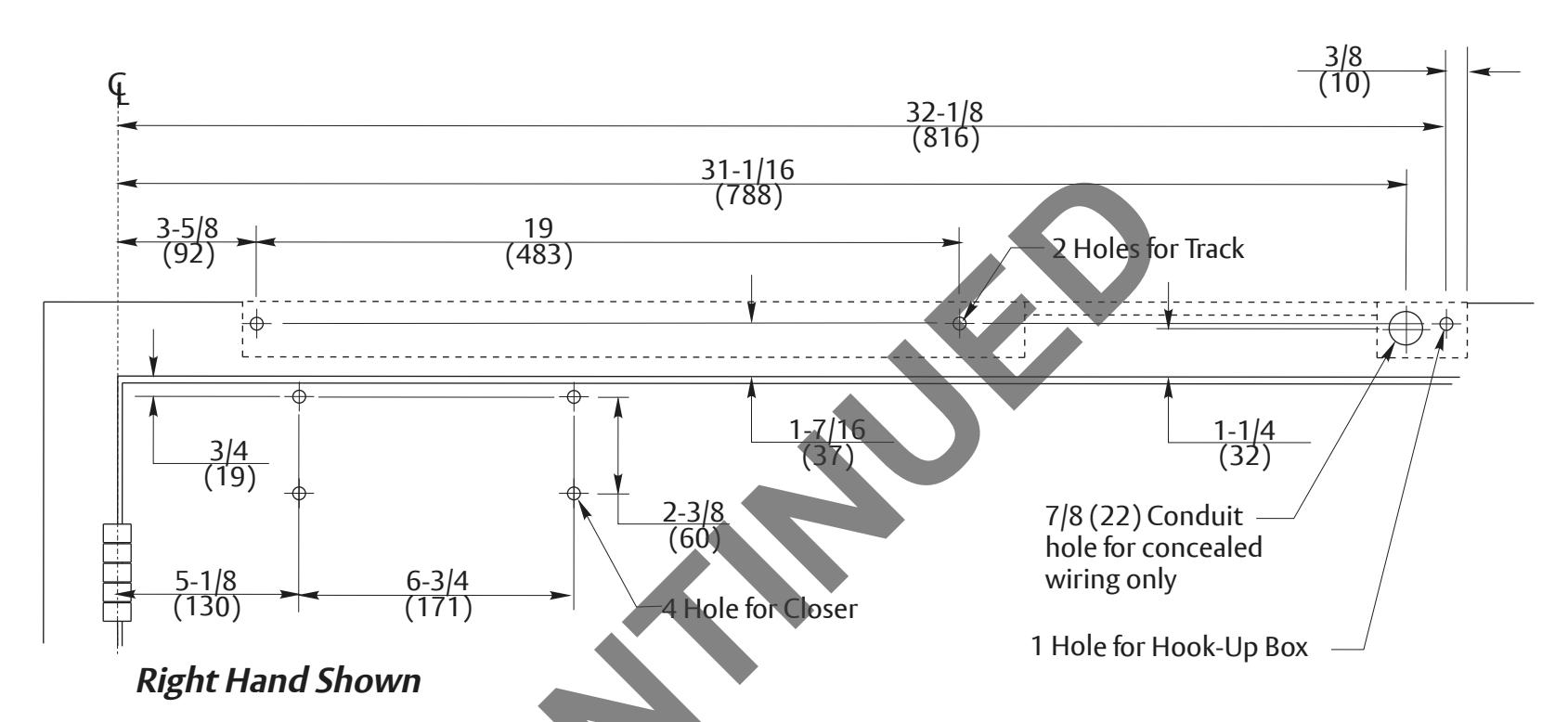

• Right hand door shown. Same dimensions apply for left hand door, measured from centerline of hinge or pivot.
• Template information based upon use of 4-1/2" hinges or 3/4" offset pivots.
• Dimensions are shown in inches and millimeters (mm).
• Hollow metal doors require channel or box-type reinforcement when thru-bolt mount is specified.
• Sex-nuts are required for wood or plastic faced fire-door installations.
• Minimum thickness recommended for reinforcements in hollow metal doors and frames is .1046 (2.66) unless noted otherwise.
• Minimum ceiling clearance for closer unit is 2" (50).
• Maximum door opening is 110°.

		Preparation for Fasteners
	Fasteners Door or Frame Drill-Sizes
	Standard	1/4" - 20 machine screw	Metal	Drill: #7 (0.201" dia.) Tap: 1/4" - 20
		Sleeve nuts and bolts	Hollow Metal	9/32" (7 mm) through; 3/8" (9.5 mm) door face opposite to closer
			Aluminum or Wood	3/8" (9.5 mm) through
	Optional	Through-bolts and grommet-nuts	All	9/32" (7 mm); 3/8" (9.5 mm) dia. x 3/8" (9.5 mm) deep on door opposite to closer

Experience a safer and more open world

Copyright © 2009, 2024, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

Yale Series 400PTO Support Unit

Combination Door Closer-Holder with Single Point Hold Open Hinge (Pull) Side of Door Installation

Template Number: 7348-1801 Sheet: 1 of 1

Date: 01/24
