ASSA ABLOY ACCENTRA 400PTDO-DE Master Unit, pull side installation with hinge side frame reveals 1, 8_7348-1813

• centerline of hinge or pivot.
• Template information based upon use of 4-1/2" hinges or 3/4" offset pivots.
• Dimensions are shown in inches and millimeters (mm).
• Hollow metal doors require channel or box-type reinforcement when thru-bolt mount is specified.
• Sex-nuts are required for wood or plastic faced fire-door installations.
• Minimum thickness recommended for reinforcements in hollow metal doors and frames is .1046 (2.66) unless noted otherwise.
• Minimum ceiling clearance for closer unit is 2" (50).
• Maximum door opening is 105°.
• Charted dimensions measured from door rabbet.

Preparation for Fasteners Door or Frame Drill-Sizes Fasteners Drill: #7 (0.201" dia.) 1/4" - 20 machine Metal Tap: 1/4" - 20 screw Hollow 9/32" (7 mm) through; Standard Metal 3/8" (9.5 mm) door face Sleeve nuts and bolts opposite to closer Aluminum 3/8" (9.5 mm) through or Wood 9/32" (7 mm):

ΑII

Optional Through-bolts and

grommet-nuts

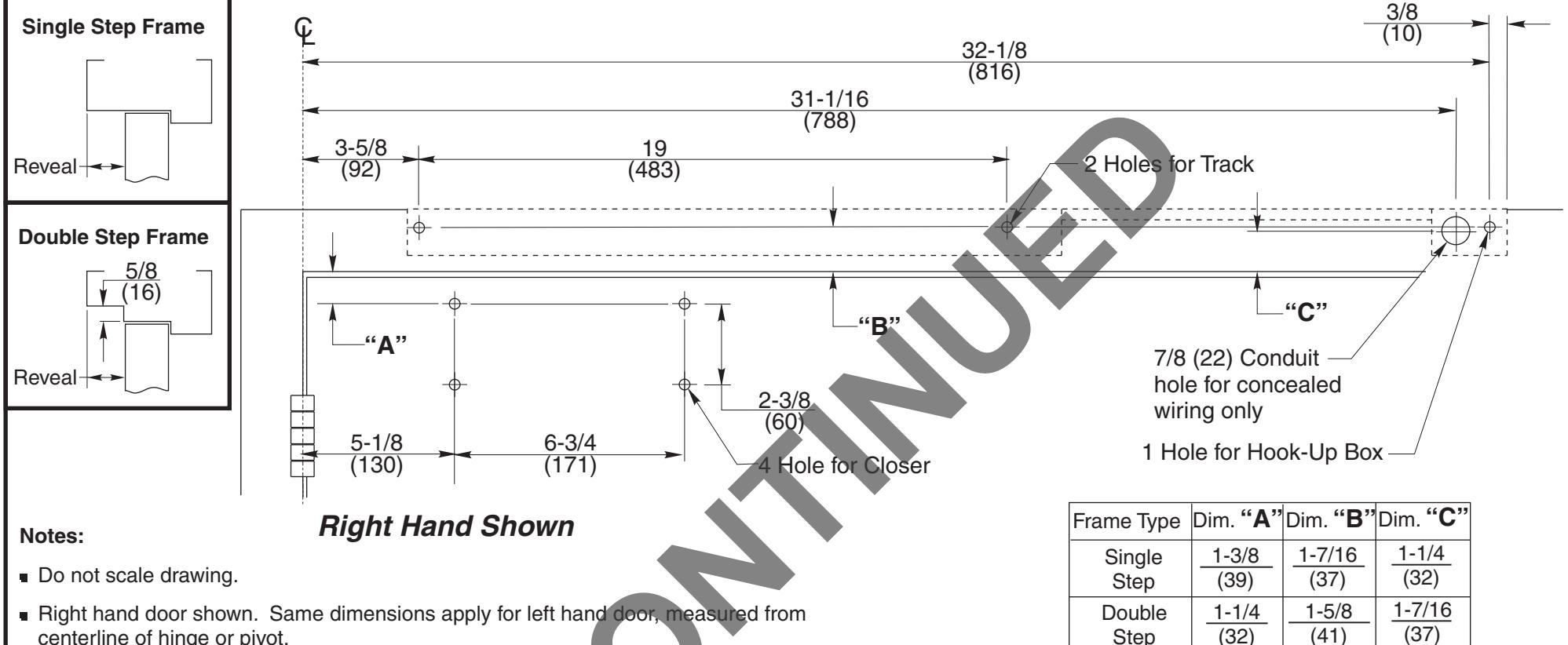

Yale Series 400PTDO-DE Master Unit

For Installations with a Double Egress Frame Combination Door Closer-Holder with Single Point Hold Open Hinge (Pull) Side of Door Installation with Hinge Side Frame Reveals 1/8" to 3" (3 to 76mm)

3/8" (9.5 mm) dia. x

3/8" (9.5 mm) deep on

door opposite to closer
