ASSA ABLOY ACCENTRA 350 Series Mortise Deadlocks Standard Strike 2-3, 4 Backset Wood Door and H.M_7003-1008

Open the original PDF document

Experience a safer and more open world

Copyright © 1991, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

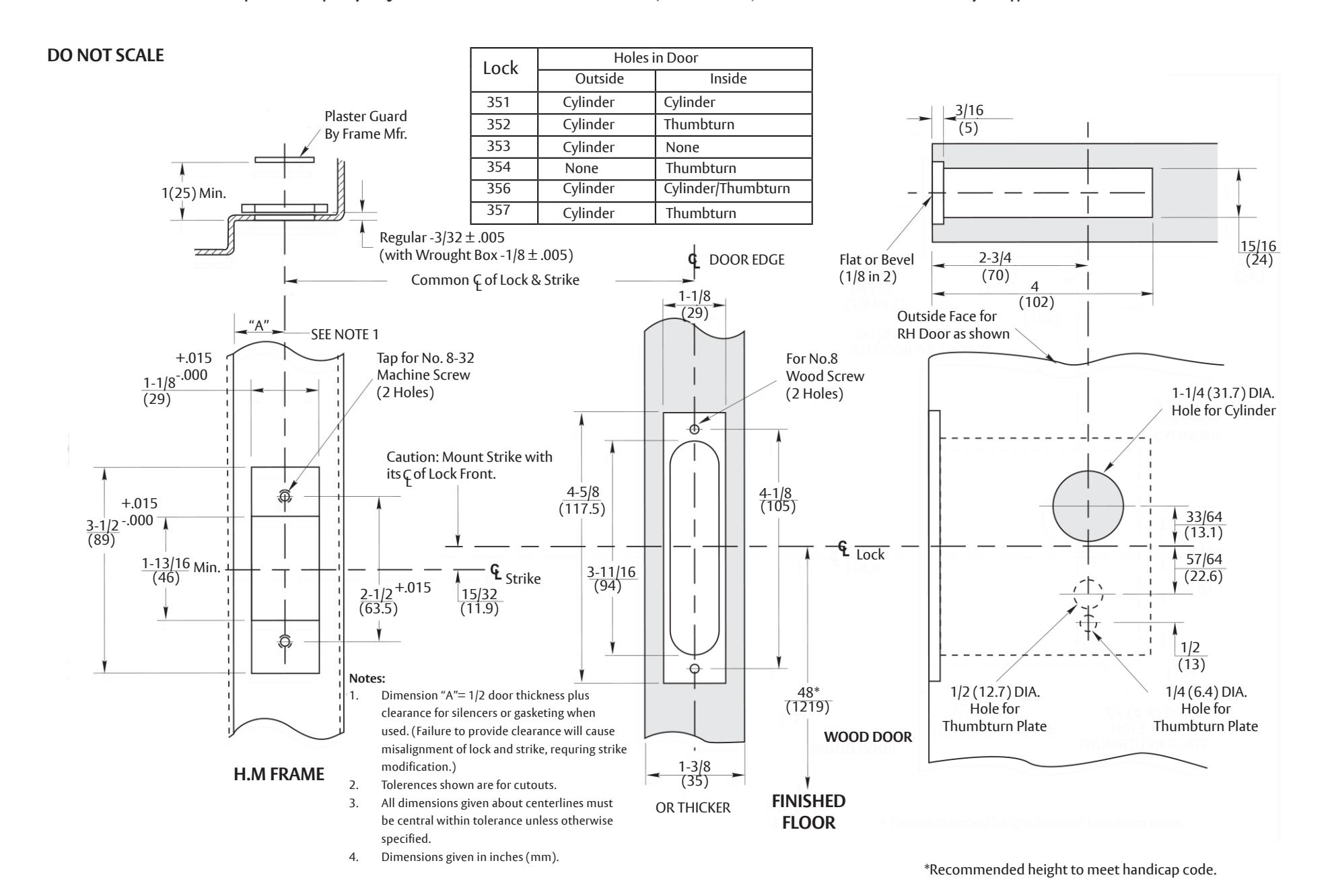

350 Series Mortise Deadlocks 2-3/4" Backset with Standard Strike (ANSI/BHMA A156.115) Wood Door and H.M. Frame Preparation

Template Number: 7003-1008

Sheet: 1 of 1

Date: 12/23

ASSA ABLOY

1-855-557-5078 www.assaabloy.com
