ASSA ABLOY ACCENTRA 3321(T), 3521(T) Door Closer Holder, Stop Non-Hold Open or Hold Open Arm_7303-0302
Open the original PDF document
View PDF
|
DOOR OPENING
ANGLE |
DIMENSIONS SHOWN IN INCHES/(mm) | ||||
|---|---|---|---|---|---|
|
BUTT HINGES OR
OFFSET PIVOTS |
CENTER PIVOTS | ||||
|
HOLD
OPEN |
DEAD
STOP |
A | B | A | B |
| 85° | 90° |
5-5/8
(143) |
11-1/4
(286) |
5-1/2
(140) |
11-1/8
(279) |
| 90° | 95° |
4-7/8
(124) |
10-1/2
(267) |
4-3/4
(121) |
10-3/8
(264) |
| 95° | 100° |
4-1/8
(105) |
9-3/4
(248) |
3-7/8
(98) |
9-1/2
(241) |
| 100° | 105° |
3-1/2
(89) |
9-1/8
(232) |
3-1/4
(83) |
8-7/8
(225) |
| 105° | 110° |
2-7/8
(73) |
8-1/2
(216) |
2-5/8
(67) |
8-1/4
(210) |
| 110° | 115° |
2-1/4
(57) |
8
(203) |
2
(51) |
7-3/4
(197) |

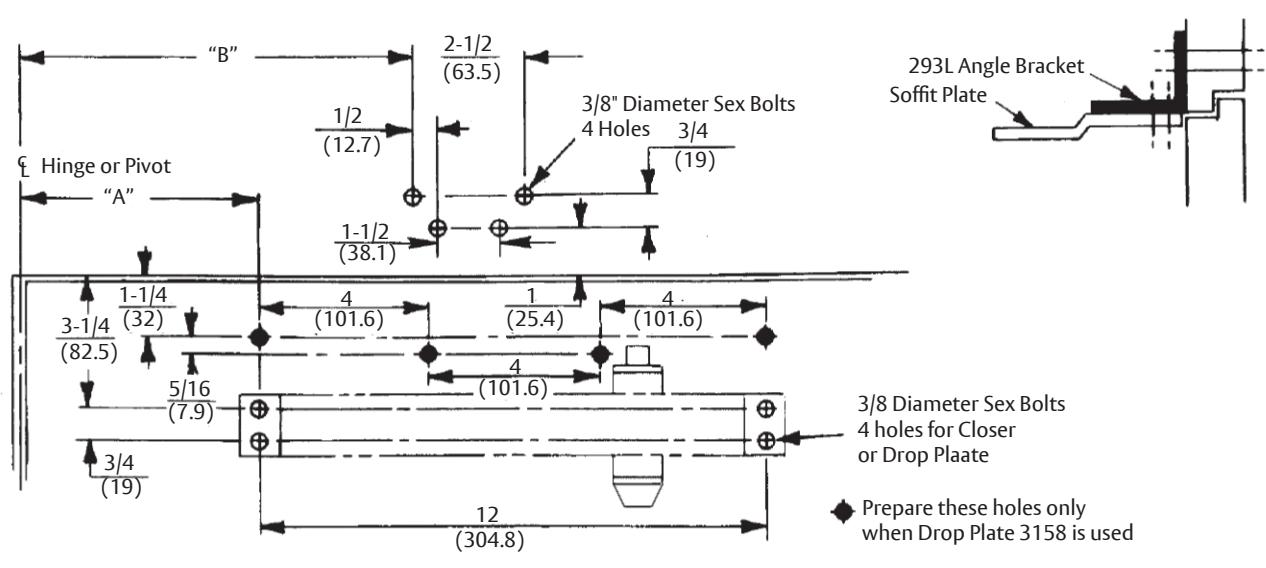

- Do not scale drawing.
- Left hand door shown.
- Dimensions are in inches (mm) unless otherwise noted.
- Maximum butt hinge width for this template is 5" (127).
- Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
- Minimum thickness recommended for reinforements in holllow metal doors and frames: .1046" (2.66mm) unless otherwise noted.
- Hold Open Arms are designated by a "T" suffix; are not permitted to be used on fire doors.
| Position of Arm and Pinion Flat | |||||||
|---|---|---|---|---|---|---|---|
| Hinge Edge | Hinge Edge | ||||||
| Shaft | Shaft | ||||||
| Turn | Door | ||||||
| Appx. 45° | Turn | ||||||
| Arm Mark "L" | Appx. 45° | ||||||
| Pinion Flat | Arm Mark "R" | ||||||
| Left Hand Installation | Pinion Flat | ||||||
| Closer is installed with Regulating Valves "S" and "L" away from Hinge Edge of Door | Right Hand Installation | ||||||
Copyright © 2010, 2024, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
3020(T) Series Holder/Stop Door Closers with 293L Bracket for Flush Transoms With or Without 3158 Drop Plate Series 3120, 3320, and 3520 Sized and Multi-size Units
Template Number: 7303-0302 Sheet: 1 of 1
Date: 01/24
