ASSA ABLOY ACCENTRA 3321(T), 3521(T) Door Closer Holder, Stop Non-Hold Open or Hold Open Arm_7303-0301
Open the original PDF document
View PDF
|

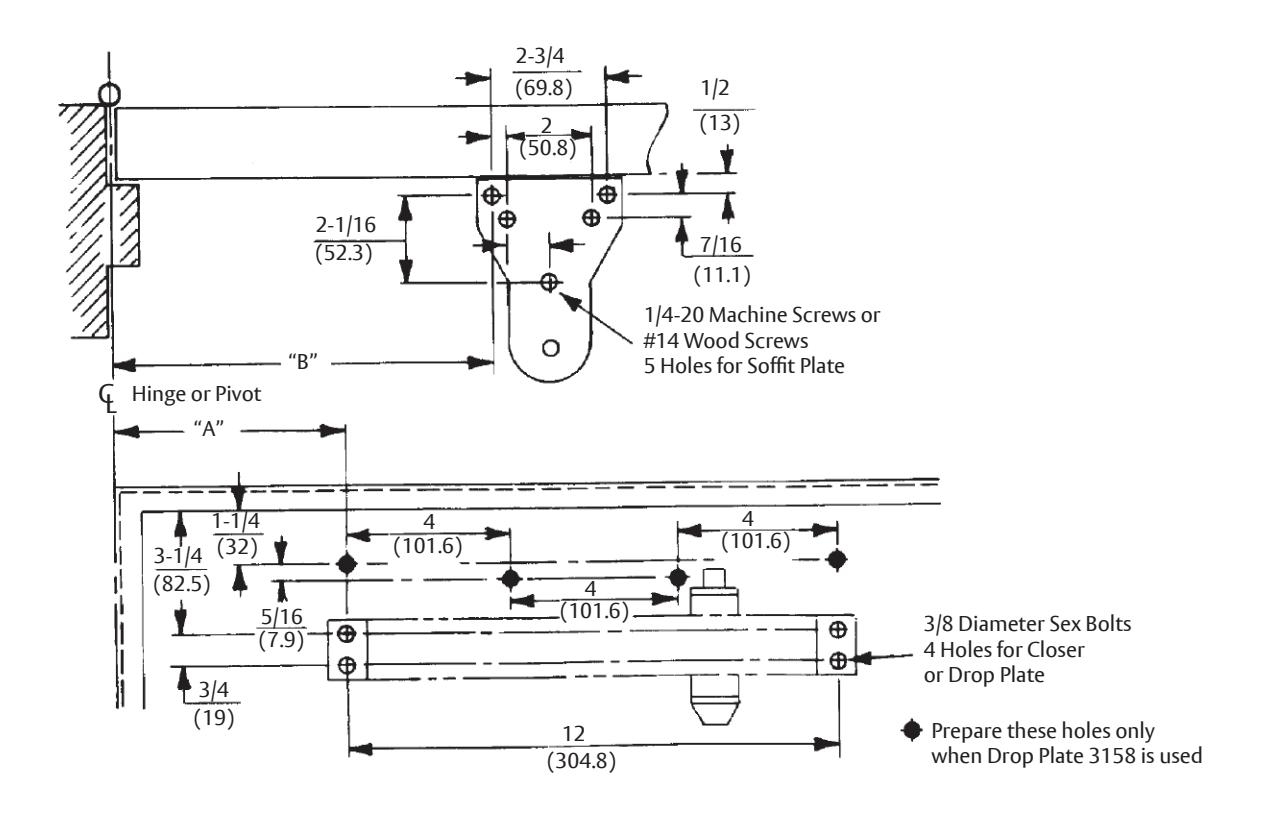

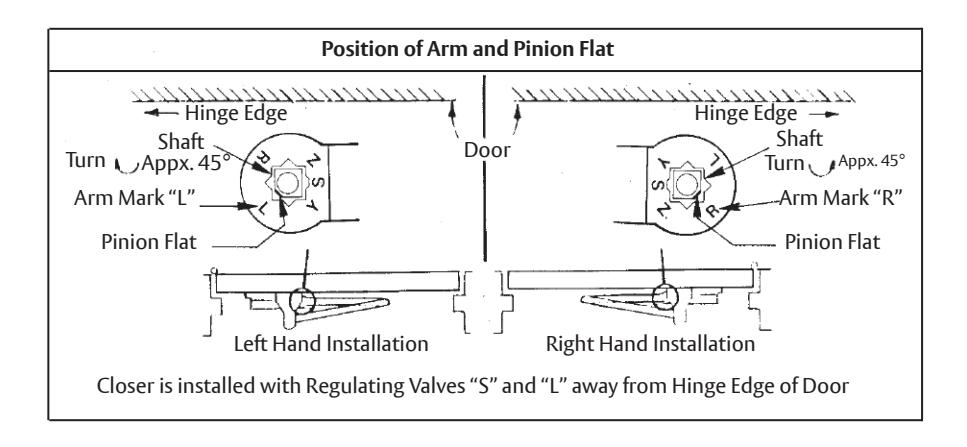

DOOR OPENING
ANGLE |
DIMENSIONS SHOWN IN INCHES | ||||
|---|---|---|---|---|---|
|
BUTT HINGE OR
OFFSET PIVOTS |
CENTER PIVOTS | ||||
|
HOLD
OPEN |
DEAD
STOP |
А | В | А | В |
| 85° | 90° |
5-5/8
(143) |
11-1/8
(283) |
5-1/2
(140) |
11
(279) |
| 90° | 95° |
4-7/8
(124) |
10-3/8
(264) |
4-3/4
(121) |
10-1/4
(260) |
| 95° | 100° |
4-1/8
(105) |
9-5/8
(244) |
3-7/8
(98) |
9-3/8
(238) |
| 100° | 105° |
3-1/2
(89) |
9
(229) |
3-1/4
(83) |
8-3/4
(222) |
| 105° | 110° |
2-7/8
(73) |
8-3/8
(213) |
2-5/8
(67) |
8-1/8
(206) |
| 110° | 115° |
2-1/4
(57) |
7-7/8
(200) |
2
(51) |
7-5/8
(194) |
- Do not scale drawing.
- Left hand door shown.
- Dimensions are in inches (mm) unless otherwise noted.
- Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
- Sex bolts may be required for wood or plastic faced fire door mounting.
- Minimum thickness recommended for reinforements in holllow metal doors and frames: .1046" (2.66mm) unless otherwise noted.
- Hold Open Arms are designated by a "T" suffix; are not permitted to be used on fire doors.
