ASSA ABLOY ACCENTRA 3311, 3511 Door Closer Regular Hold Open Arm with 3146 Plate Multi-Size 1-6_7303-0109

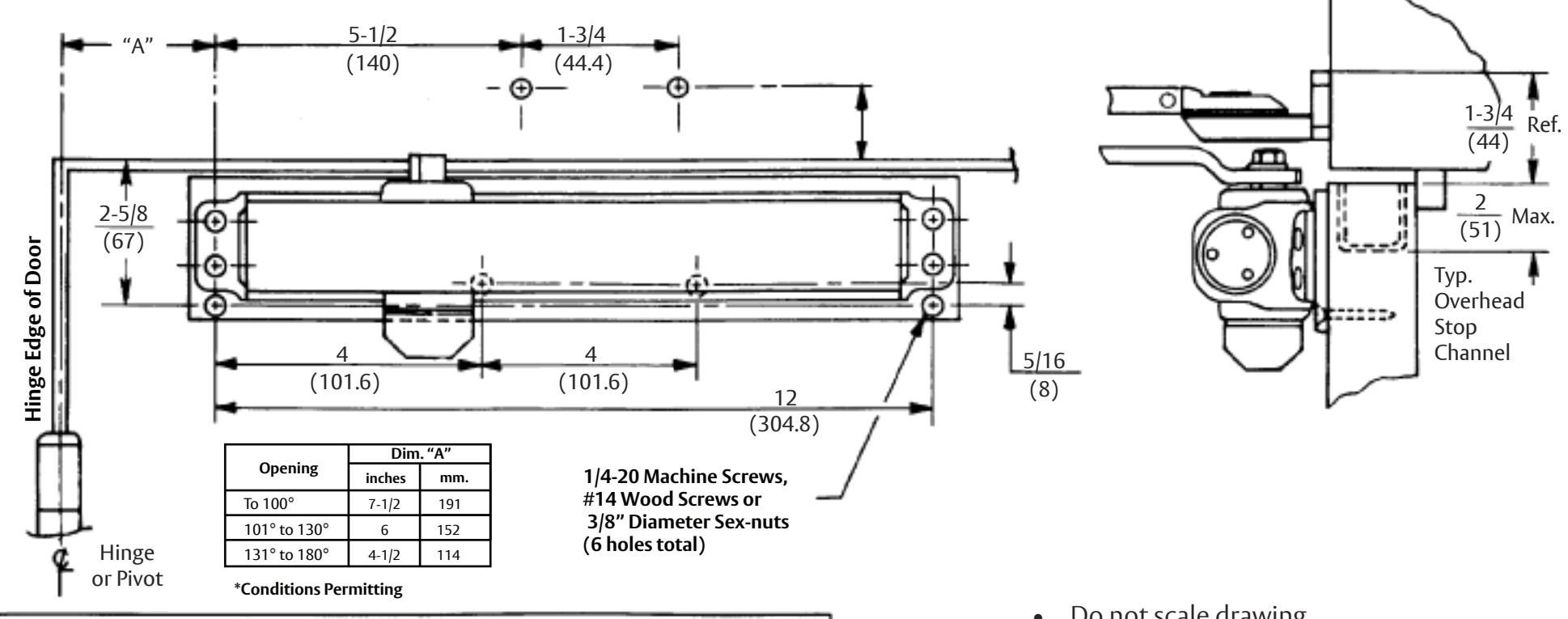

• Do not scale drawing.
• Right hand door shown.
• Dimensions: inches / (mm).
• Hollow metal doors require channel or box type reinforcement when through bolt mount is specified.
• Minimum thickness recommended for reinforcements in hollow metal doors and frames: .104" (2.66 mm.) unless otherwise noted.

Experience a safer and more open world

Copyright © 2003, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

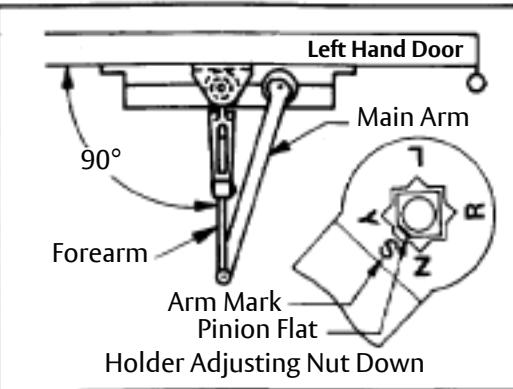

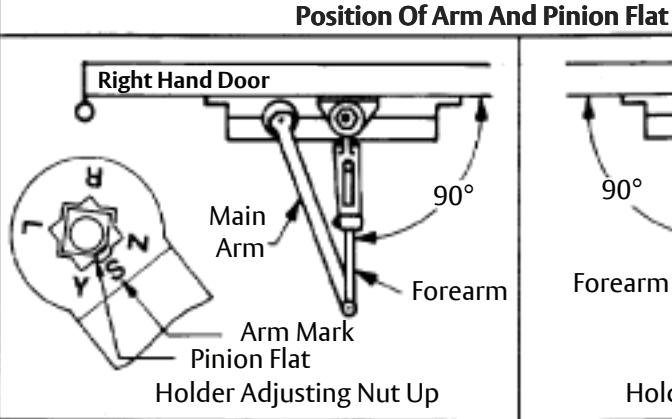

3010 Series Door Closer with 3146 Back Plate for Concelead Stop Clearance Regular Hold Open Arm Application Series 3110, 3310, and 3510 Individually Sized Units 2 thru 6 and Multi-Sized Units 1 & 1BF

Template Number: 7303-0109

Sheet: 1 of 1

Date: 12/23
