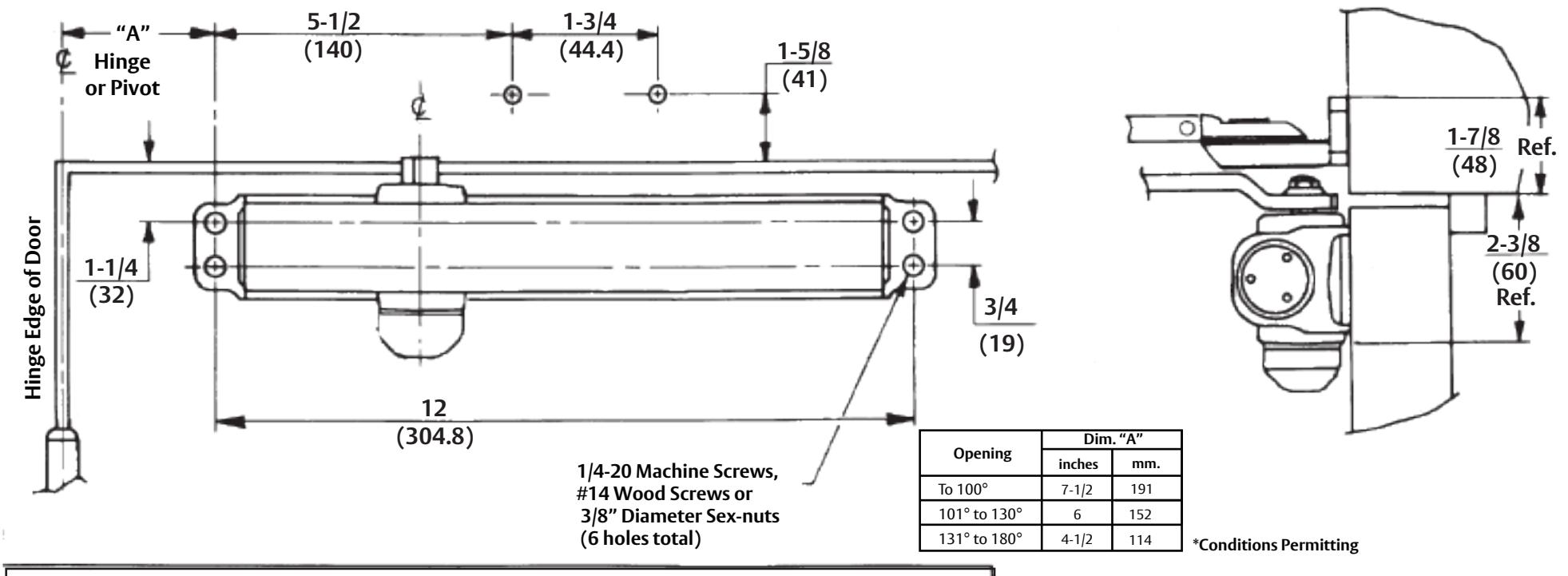

ASSA ABLOY ACCENTRA 3311, 3511 Door Closer Regular Hold Open Arm Multi-Size 1-6 Template_7303-0105

• Do not scale drawing.

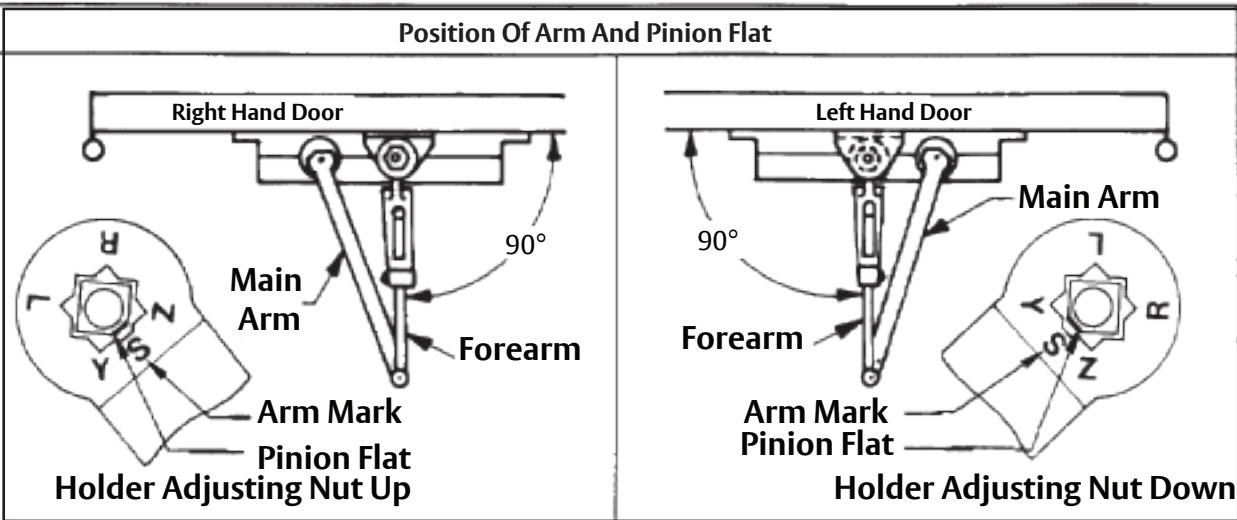

• Right hand door shown.
• Dimensions: inches / (mm).
• Hollow metal doors require channel or box type reinforcement when through bolt mount is specified.
• Minimum thickness recommended for reinforcements in hollow metal doors and frames: .104" (2.66 mm.) unless otherwise noted.
• Hold Open Arms are not permited to be used on fire doors.

Copyright © 2017, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

3010 Series Door Closer Regular Hold Open Arm Application Series 3110, 3310, and 3510 Sized and Multi-size Units Date: 12/23

Template Number: 7303-0105

Sheet: 1 of 1
