3000

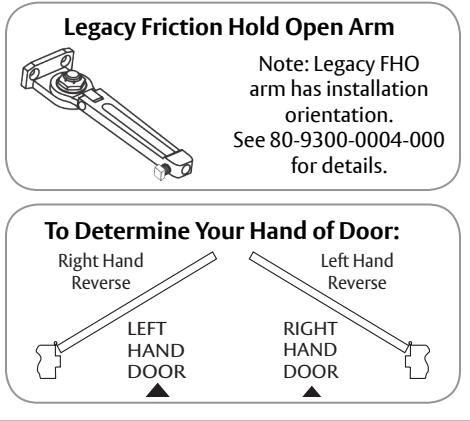

Hold Open Arm Models

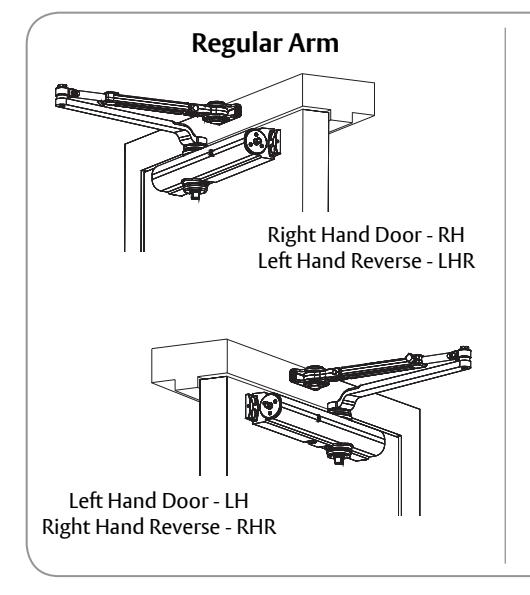

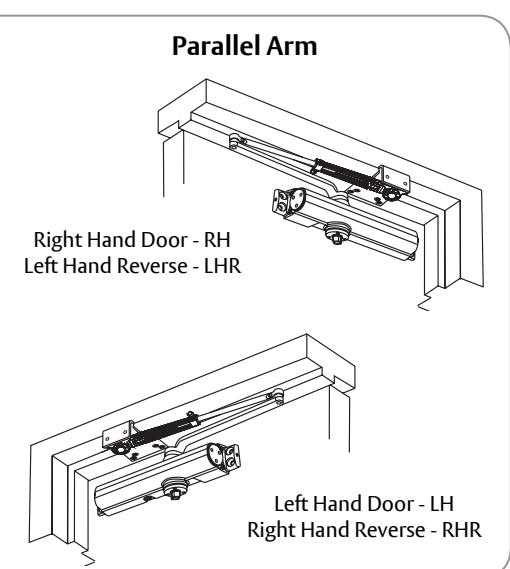

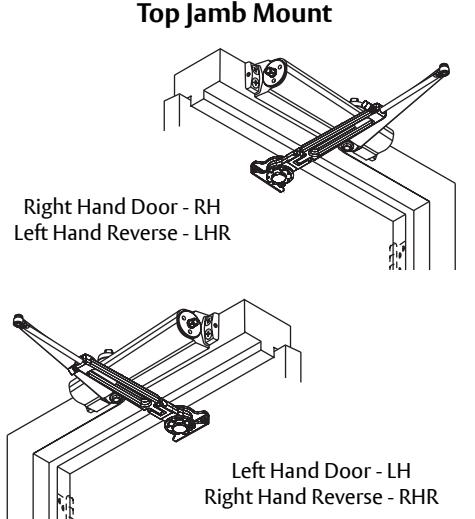

Non Handed Door Closer Regular Arm Top Jamb Mount Parallel Arm

(Sizes 1-6) 3111

Adjustable

With or without DL suffix (delayed action)

/ WARNING

This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.

Ce produit peut vous exposer au plomb qui, dans l'état de la Californie, est reconnu pour causer le cancer, des anomalies congénitales ou d'autres problèmes de reproduction. Pour plus d'informations, visitez: www.P65warnings.ca.gov.

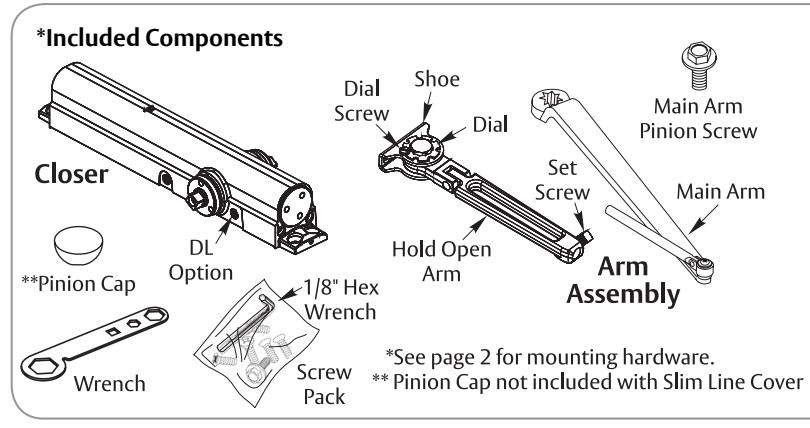

3000 Installation Instructions

Before You Begin

ATTENTION:

An incorrectly installed or improperly adjusted door closer can cause property damage or personal injury. These installation instructions should be followed to avoid the possibility of misapplication or misadjustment.

• "DA" suffix (Delayed Action) is an optional feature.
• For special applications, a separate door and frame preparation template is packed with these instructions. Use this instruction sheet for installation sequence and closer adjustments only.
• Doors should be hung on ball bearing or anti-friction hinges.

• A separate door stop is recommended.
• Always consult door/frame manufacturer for fastener compatibility.
• Door and frame must be properly reinforced.
• Adjust closing time speed between 3 and 7 seconds from 90° to 0°. Greater closing times may be required for elderly or handicapped.
• These door closers should NOT be installed on exposed side (weather side) of exterior doors.
• Dimensions are given in inches (millimeters).

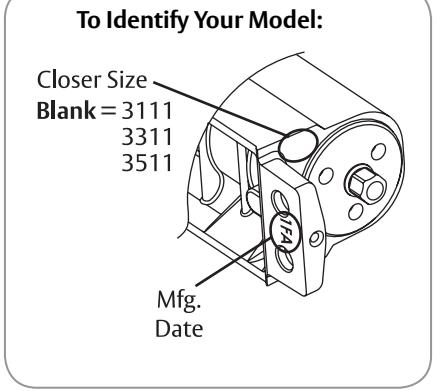

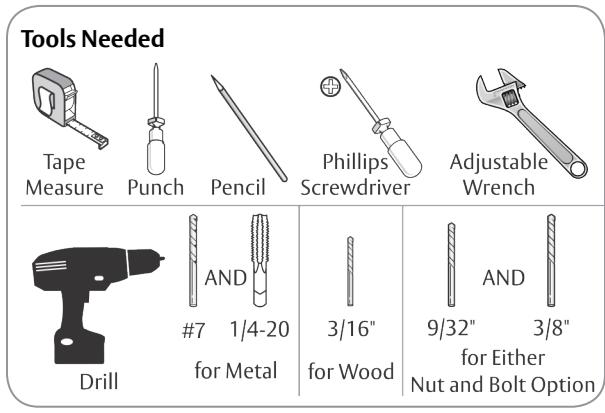

Mounting Hardware		Door or Frame	Drill
	Closer, H/O Shoe or Optional PA Bracket: 1/4-14 x 1-1/2 Oval Flat Head Mach. Screw	Wood	3/16" (4.76mm)
	Closer, H/O Shoe or Optional PA Bracket: 1/4-20 x 3/4 Oval Flat Head Mach. Screw		Drill #7 (.201 dia. or 5.10mm)
	H/O Shoe to Optional PA Bracket: 1/4-20 x 1/2 Oval Flat Head Mach. Screw	Metal	Tap 1/4-20
	Closer: Sleeve Nut and Bolt (SNB)	Hollow Metal	9/32" (7.00mm) thru 3/8" (9.50mm) door face opposite to closer
	(optional)	Aluminum or Wood	3/8" (9.50mm) thru
	Closer: Thru Bolt and Grommet Nut (TBGN) (optional)	All	9/32" (7.00mm) thru 3/8" (9.50mm) dia. x 3/8" (9.500mm) deep, door face opposite to closer

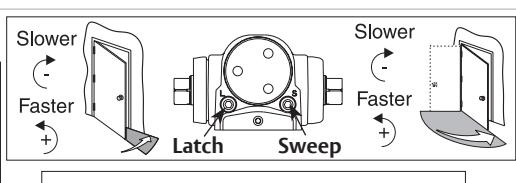

Closer Adjustments

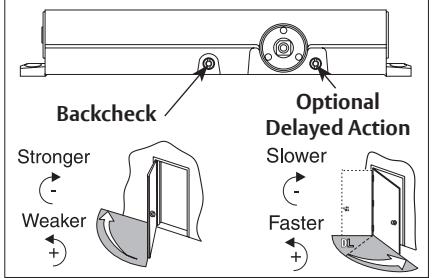

Use provided hex wrench to turn valves. NEVER force valves out of closer. NEVER completely close backcheck valve.

Door must be open to adjust spring closing power. Refer to chart. Do not use a power drill. Warranty will be void.

	Spring Closing Power			Number of Turns Required
		Ä	TYPE		MAXIMUM DOOR SIZE			SIZE
		BOOG	OF INST.	*	34" (0.85M)	36" (0.90M)	42" (1.05M)	48" (1.20M)
	3510	INTERIOR	Regular Arm Top Jamb	° TURNS	5	8	11	13
_	3310, 3	NTE	Parallel Arm		7	10	13	16
		EXTERIOR	Regular Arm Top Jamb		7	10	13	16
	3110,	ЕХТЕ	Parallel Arm		9	12	15	18
5	*20	FULL	(360°) TURNS N	MAX. AVAIL	ABLE	= 10 TU	RNS AS S	SHIPPED

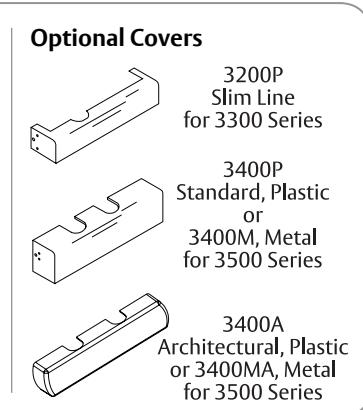

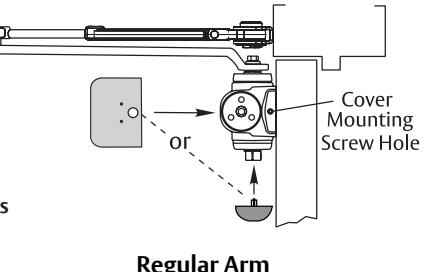

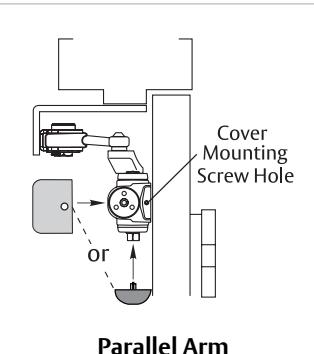

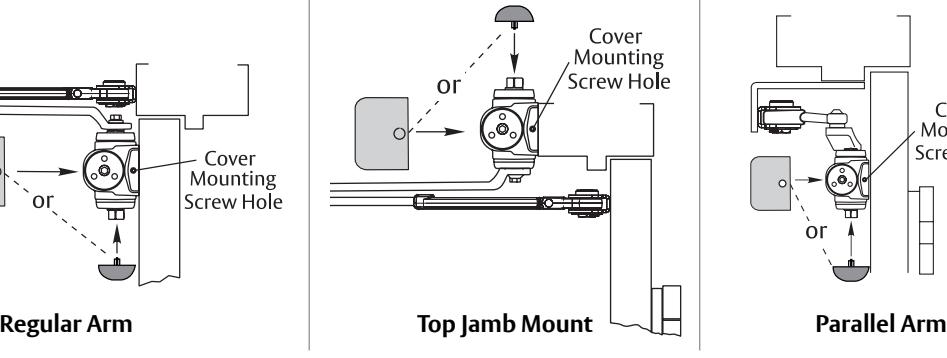

Pinion Cap and Cover

Do not over tighten cap or cover screws.

Architectural ("A") covers cannot be used on parallel mounted closers with doors swinging over 120°.

For technical support contact Yale® at 800.438.1951

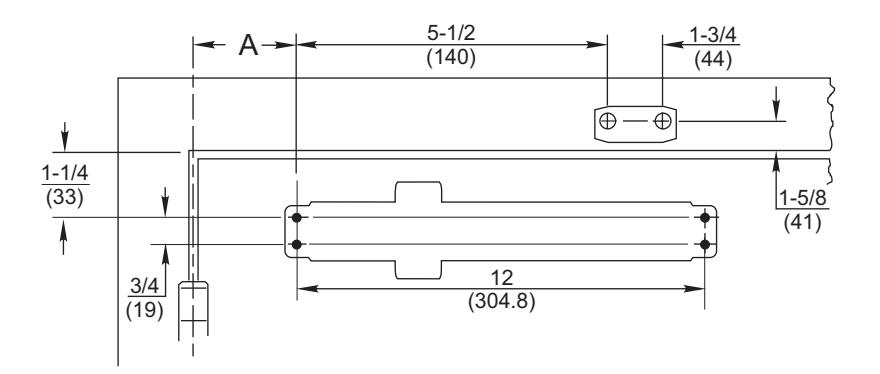

3000 Regular Arm Installation (Right Hand Shown)

Opening	Dimension "A"
To 100°	7-1/2 (191)
101° to 130°	6 (152)
131° to *180°	4-1/2 (114)

Door/Wall/Hardware/Jamb * conditions permitting

2. Mount closer to door. 3a. Remove dial from Hold Open arm.

3b. Install separate arms.

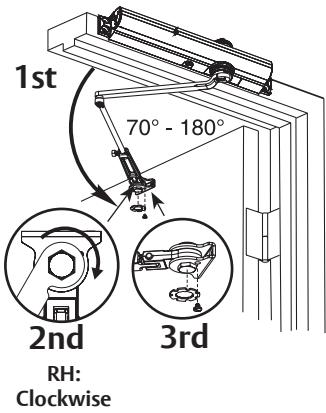

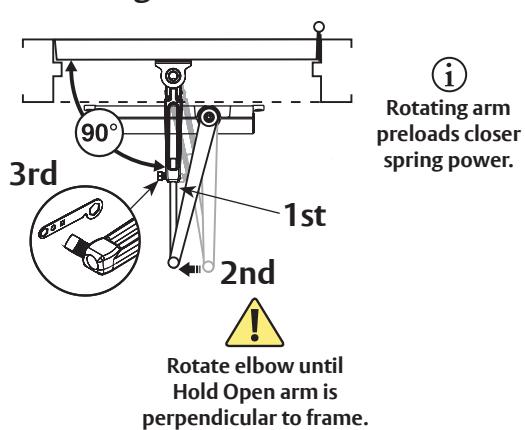

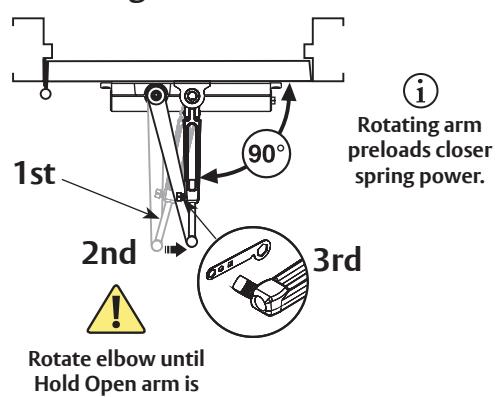

4. Connect arms, preload spring and tighten set screw.

5. Set Hold Open. Keep door open in position until dial screw secures dial.

You've installed the 3000 Hold Open Closer - Regular Arm.

Go to page 2 for closer adjustments and decorative cap or cover installation.

perpendicular to frame.

3000 Top Jamb Mount Installation (Right Hand Shown)

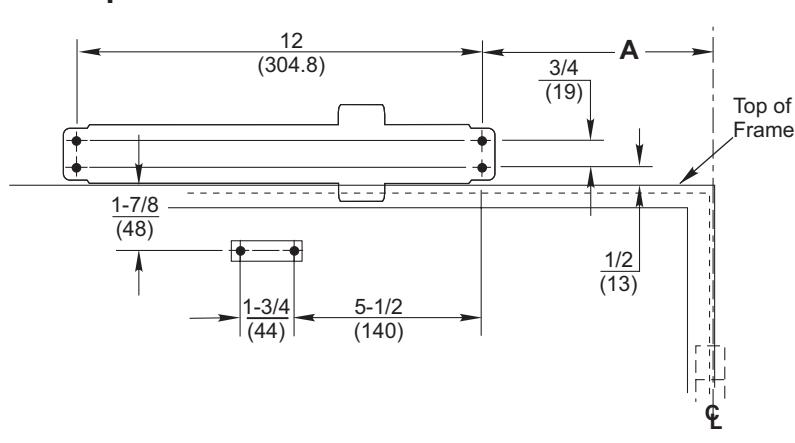

1. Prepare door and frame.

Opening	Dimension "A"
To 100°	7-1/2 (191)
101° to 130°	6 (152)
131° to *180°	4-1/2 (114)

Door/Wall/Hardware/Jamb * conditions permitting

A longer connecting rod is required for reveals greater than 3" (76)

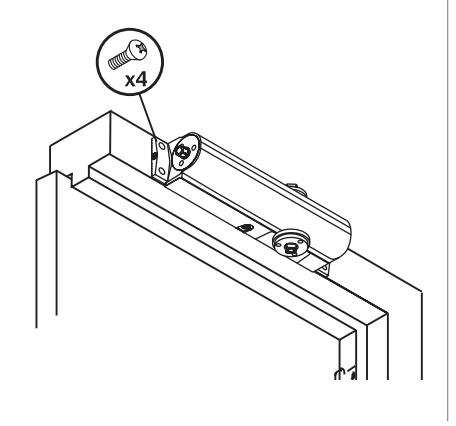

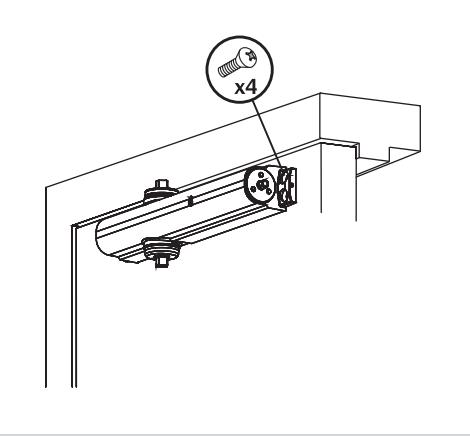

2. Mount closer to frame.

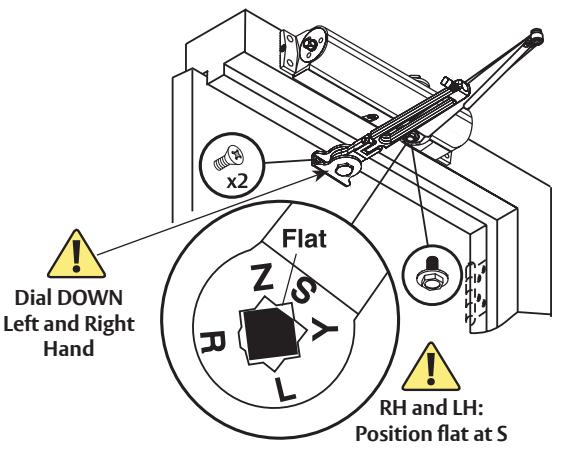

3a. Remove dial from Hold Open arm.

3b. Install separate arms.

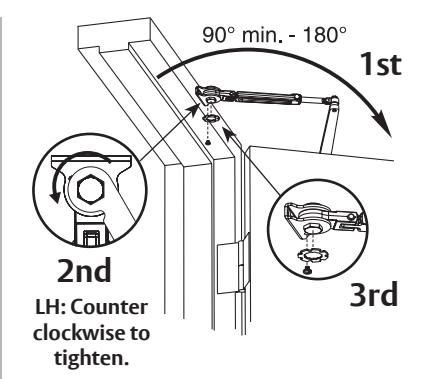

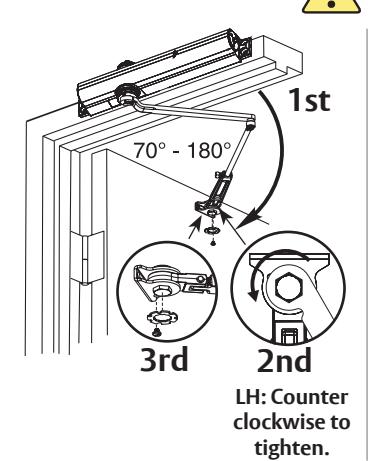

4. Connect arms, preload spring and tighten set screw.

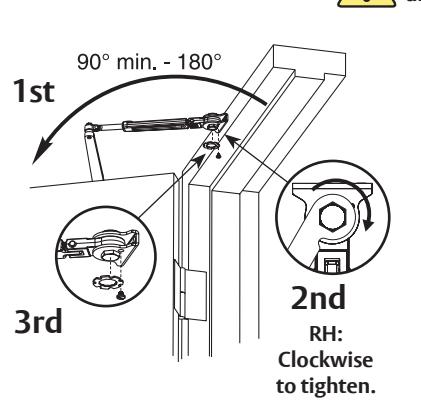

5. Set Hold Open.

Keep door open in position until dial screw secures dial.

to tighten.

You've now installed the 3000 Hold Open Closer - Top Jamb Mount.

Go to page 2 for closer adjustments and decorative cap or cover installation.

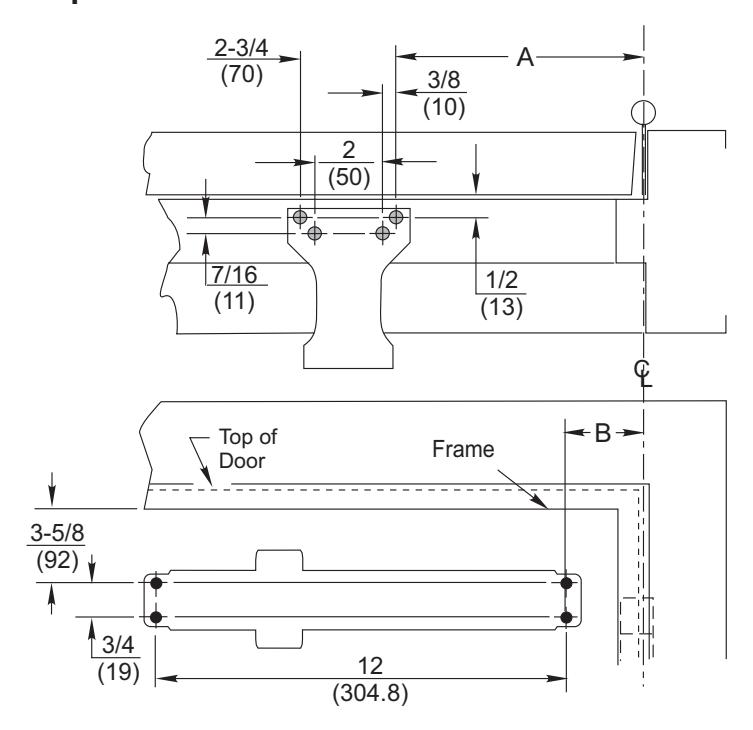

3000 Parallel Arm Installation (Right Hand Shown)

1. Prepare door and frame.

Door Opening	A	Вф
To 120°	9-1/2 (241)	3-3/4 (95)
*121° to 180°	7 (178)	1-1/4 (32)

* Door/Wall/Hardware/Jamb conditions permitting

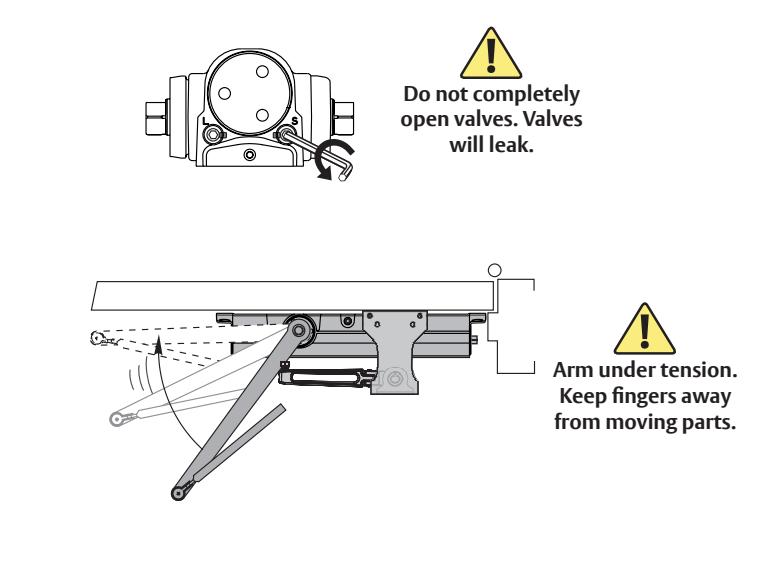

2. Close latch and sweep valves.

3. Remove dial from Hold Open arm.

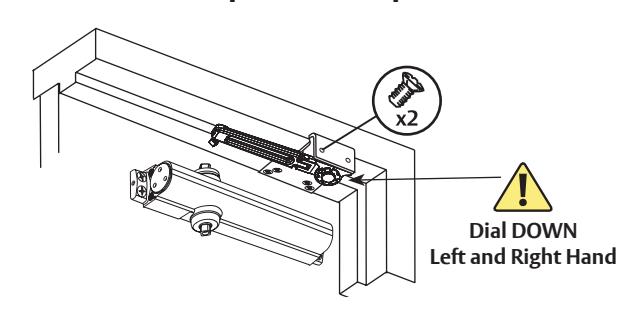

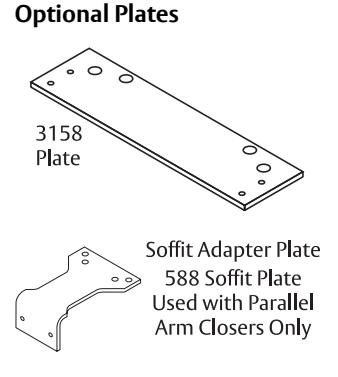

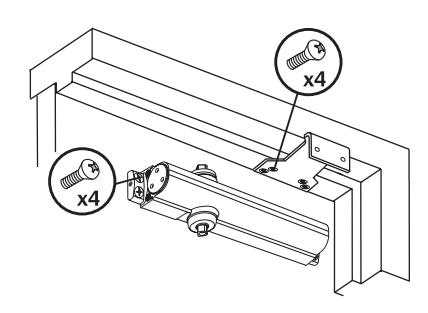

4. Install soffit plate and mount closer.

5. Install Hold Open arm to plate.

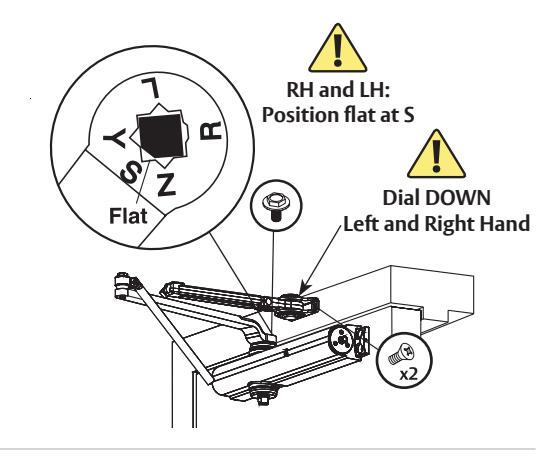

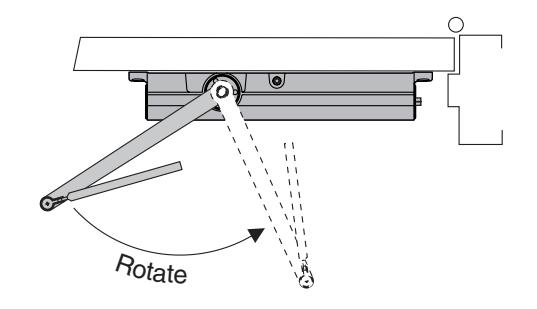

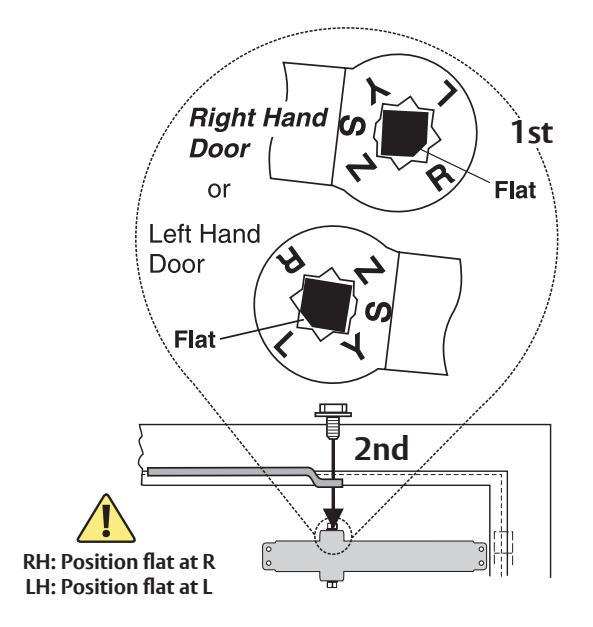

6. Place main arm on closer spindle and rotate.

80-9303-3207-010 Rev 1 05/19

3000 Parallel Arm Installation (Right Hand Shown) continued

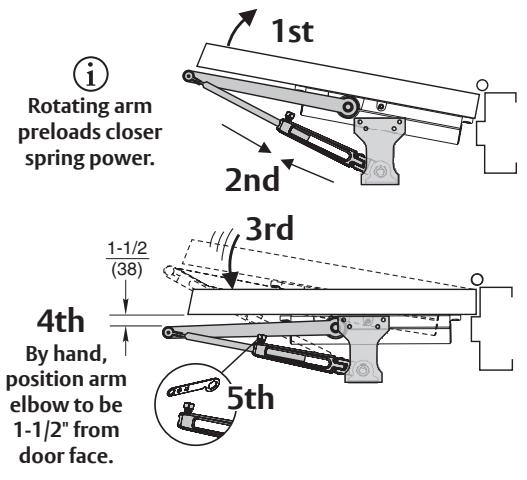

7. Remove arm and attach as shown.

8. Open latch and sweep valves.

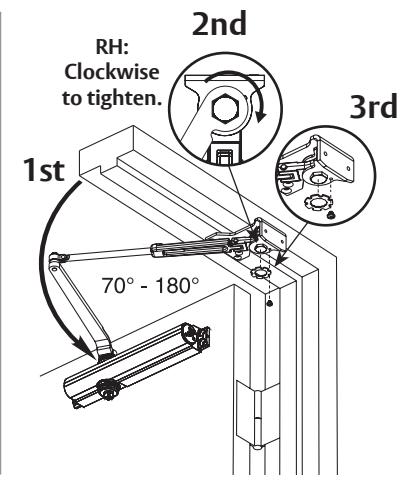

9. Connect arms, preload spring and tighten set screw.

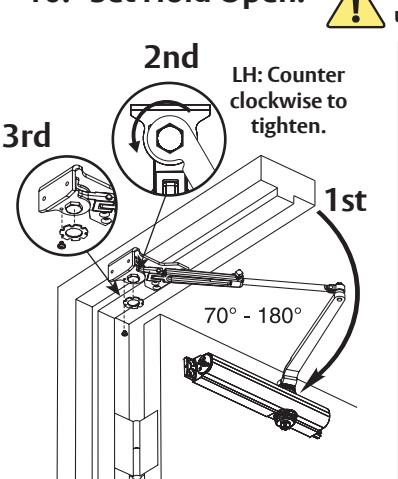

10. Set Hold Open.

Keep door open in position until dial screw secures dial.

You've now installed the 3000 Hold Open Closer - Parallel Arm.

Go to page 2 for closer adjustments and decorative cap or cover installation.

Yale Locks & Hardware

Product Support Tel 800.438.1951 • www.yalelocks.com
