Installation Instructions

80-9303-2213-010 (06-09)

3000ST Series Slide Track Door Closers

The closing force for Series 3000ST door closers is adjustable from a size 1 to a size 6, as outlined in ANSI Standard A156.4. When these series of door closers are installed and adjusted to conform to ADA reduced opening force requirements (5 lbs max.) for interior doors, they may not have adequate closing

force to reliably close and latch the door. Power adjustments charted on Page 4 are recommended where possible, to ensure proper door control.

CAUTION

An incorrectly installed or improperly adjusted door closer can cause property damage or personal injury. These instructions should be followed to avoid the possibility of misapplication or misadjustment.

NOTE: For special applications a separate door and frame preparation template is packed with these instructions. Use this instruction sheet for installation sequence and closer adjustments only.

  • For closers with or without Delayed Action closing suffix " DL ".
  • Use of an auxiliary door stop is always recommended.

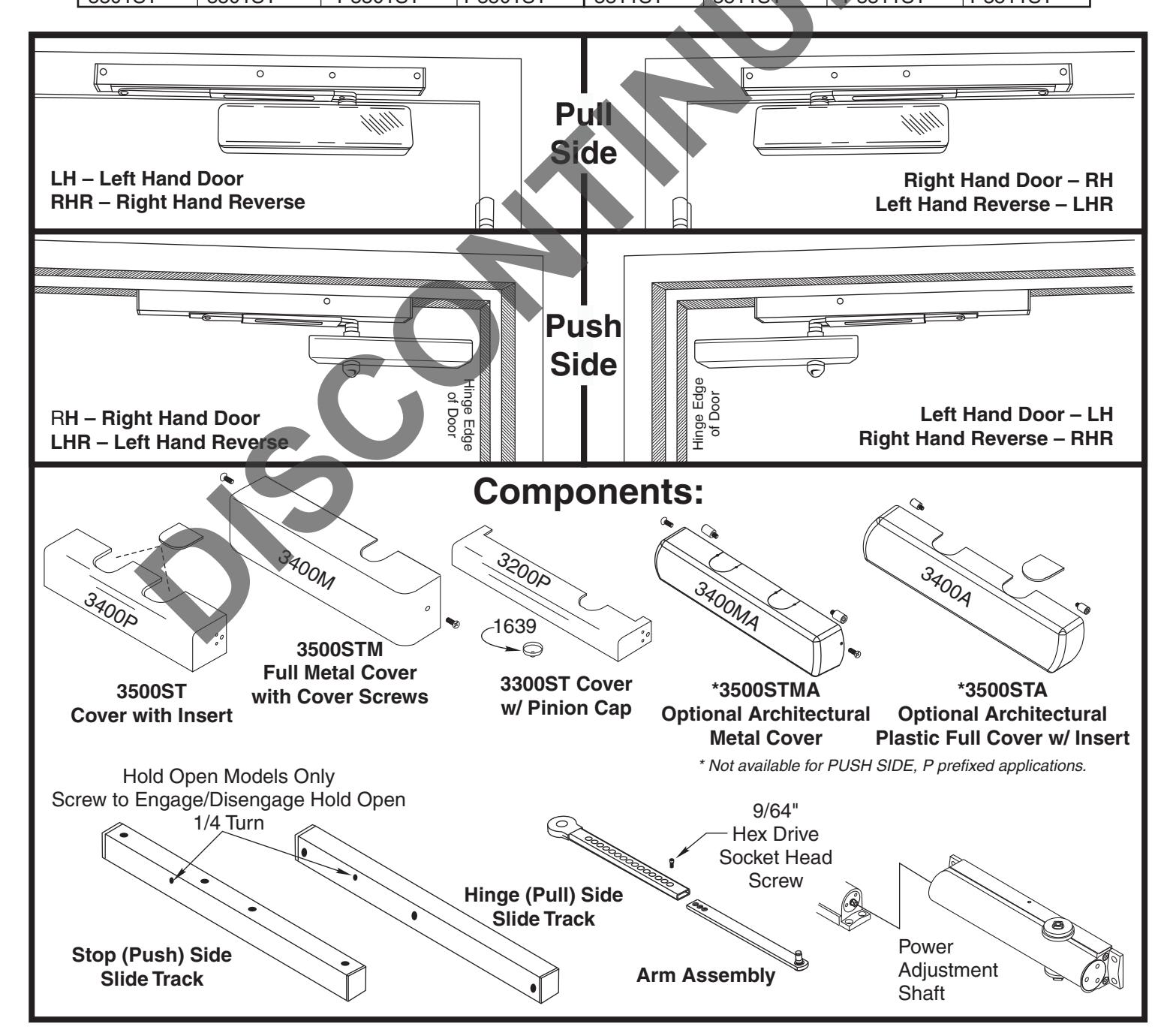

Non Hold Open Models Hold Open Models
Hinge (Pull) Side Stop (Push) Side Hinge (Pull) Side Stop (Push) Side
3300ST 3500ST P3300ST P3500ST 3310ST 3510ST P3310ST P3510ST
3301ST 3501ST P3301ST P3501ST 3311ST 3511ST P3311ST P3511ST

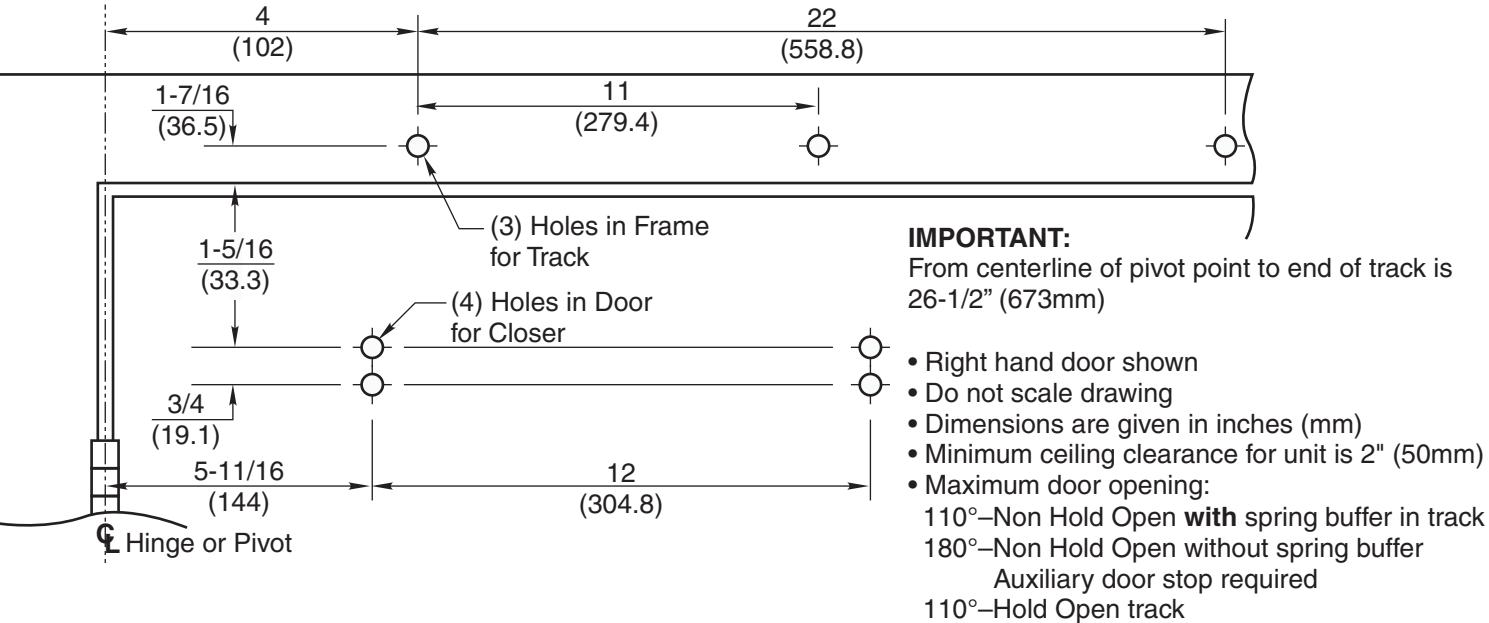

Pull Side Application

  • Use template to locate holes on door and frame:
    • 4 on door for closer.
    • 3 on frame face for track assembly.
  • Prepare door and frame for fasteners using chart on this page.
  • FOR 3301/3501 & 3311/3511 SERIES MODELS ONLY set closer power for door size using chart below:

Power Adjust

Use 5/16" Socket or Adjustable Wrench for this Adjustment

0004/0004 0044/0544 01111/
Power Adjustme nt Chart tor ' 3301/3501. . 3311/3511 ONLY
Number of Turns Required
DOOR MAXIMUM DOOR SIZE
20011 32"
(0.85M) 		36"
(0.90M) 		42"
(1.00M) 		48"
(1.20M)
Interior
Door 		2 3 5 7
Exterior
Door 		3 5 7 9

NOTE: Maximum of 20 turns (360°) of Power Adjustment Shaft. Closer is shipped set at 10 turns.

  • Fasten closer body to door with power adjustment shaft toward lock edge of door. Note: If application has a full metal cover, 3400M, slide mounting clips under each end of closer before tightening screws.
  • Fasten slide track to frame face with open side facing down and spring buffer end toward hinge edge of door.

Preparation for Fasteners
Fasteners Door or Frame Drill-Sizes
Standard Self-Drilling Screw Aluminum
or Metal 		No drill required
Wood 3/16" (4.30 mm)
1/4" - 20 machine screw Metal Drill: #7 (0.201" dia.)
Tap: 1/4" - 20
Optional Sleeve nuts and bolts Hollow
Metal 		9/32" (7 mm) through;
3/8" (9.5 mm) door face
opposite to closer
Aluminum
or Wood 		3/8" (9.5 mm) through
Through-bolts and grommet-nuts All 9/32" (7 mm);
3/8" (9.5 mm) dia. x
3/8" (9.5 mm) deep on
door opposite to closer

  • Adjust arm to shortest length and install 9/64" hex drive socket head screw from screw pack.

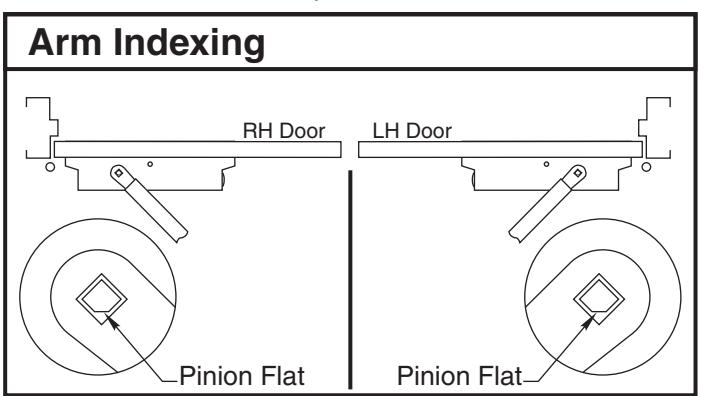

  • Place slide arm on pinion shaft using Arm Indexing instructions above.
  • Secure arm with arm washer and arm screw.
  • Insert arm stud into slide block in track assembly. Secure by pushing in on the retainer clip that extends from the slide block in the track, until it is flush with the slide block.
  • Adjust closer See Page 4.

Page 2 80-9303-2213-010 (06-09)

• with open side facing down and spring buffer end toward hinge edge of door. Fasten slide track to frame soffit

  • and install 9/64" hex drive socket head screw from screw pack. Adjust arm to shortest length

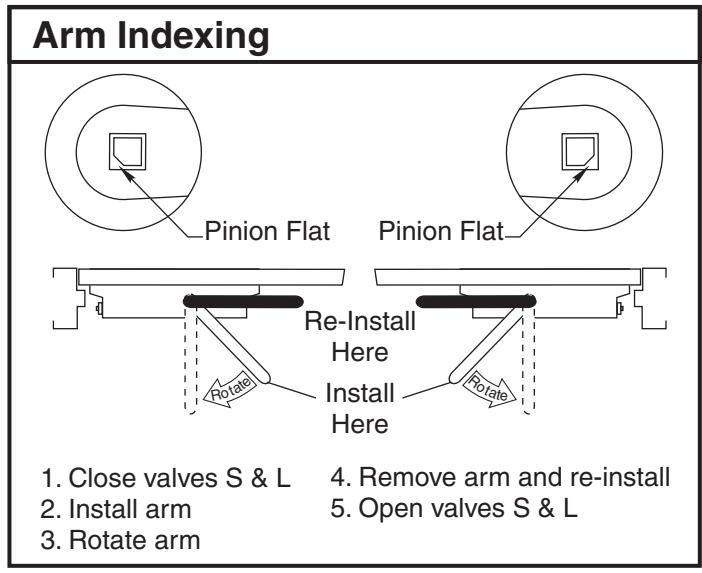

  • using Arm Indexing instructions above. Place slide arm on pinion shaft
  • Secure arm with arm washer and arm screw.
  • in track assembly. Secure by pushing in on the retainer clip that extends from the slide block in the track, until it is flush with the slide block. • Insert arm stud into slide block
  • . Adjust closer See Page 4

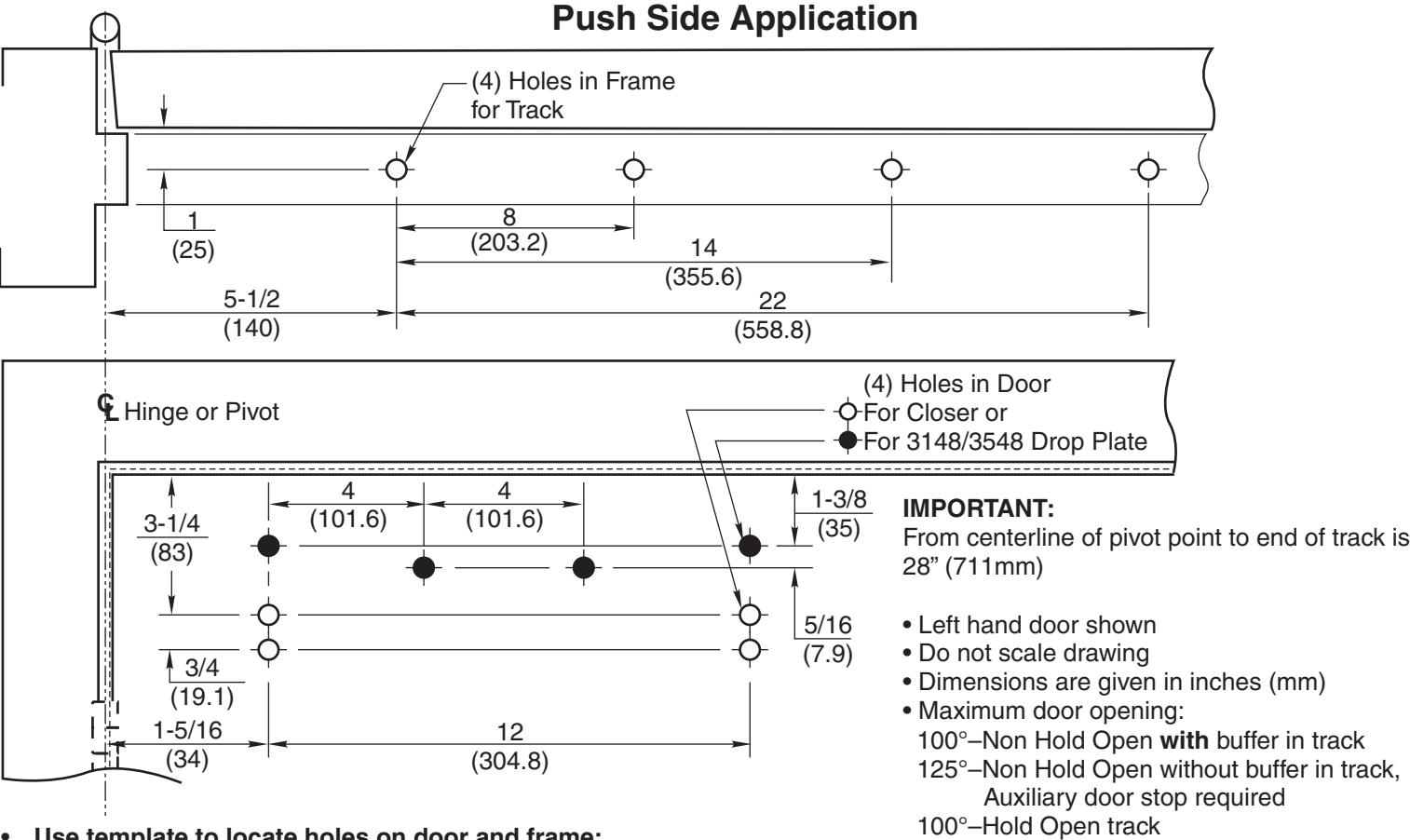

• Use template to locate holes on door and frame:

  • 4 on door for closer or drop plate.
  • 4 on frame soffit for track assembly.
  • using chart . Prepare door and frame for fasteners on Page 2
  • set closer power for door size using chart below: FOR P3301/P3501 & P3311/P3511 SERIES MODELS ONLY

Power Adjust

Use 5/16" Socket or Adjustable Wrench for this Adjustment

Power Adjustment Chart for P3301/P3501, P3311/P3511 ONLY

Number of Turns Required
DOOR MAXIMUM DOOR SIZE
32"
(0.85M) 		36"
(0.90M) 		42"
(1.00M) 		48"
(1.20M)
Interior
Door 		2 3 5 7
Exterior
Door 		3 5 7 9

NOTE: Maximum of 20 turns (360°) of Power Adjustment Shaft. Closer is shipped set at 10 turns.

• with edge of door. Fasten closer body to door power adjustment shaft toward hinge Note: If application has a full metal cover, 3400M, slide mounting clips under each end of closer before tightening screws.

Page 3 80-9303-2213-010 (06-09)

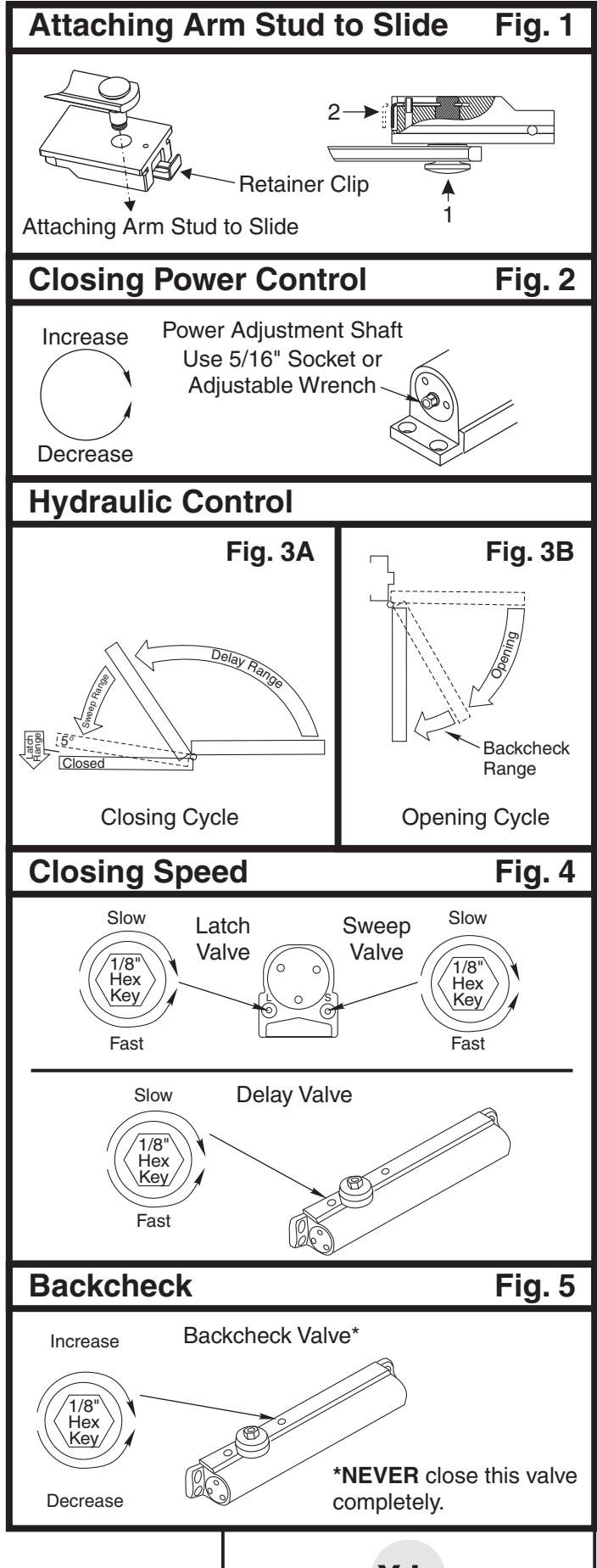

Adjustment Instructions

Arm Attachment to Track

Insert arm stud into slide block in track.

Secure by pushing in on the retainer clip that extends from the slide block, until it is flush with the slide block. See Figure 1.

Door Opening Angle and/or Hold Open Angle:

Remove 9/64" hex drive socket head screw from arm. Open door to desired angle and install hex-drive socket head screw into hole in adjusting rod that is aligned with the hole in the adjusting tube.

Closing Power

  • 3300ST/3500ST Models come in five different sizes (2 thru 6); each power size can be increased by 50%. Adjust as required, See Figure 2 .
  • 3301ST/3501ST Models are fully adjustable. For proper sizing see chart on Page 2 or 3. To adjust closer power – See Figure 2. Increase or decrease power as necessary.

Closing Cycle (hydraulic control) See Figure 3A.

Valve "L" controls door speed in Latch range.

Valve "S" controls door speed in Sweep range.

Valve "D"—Optional—controls door speed in the Delay range .

Use 1/8" hex-key furnished and adjust as shown in Figure 4.

Opening Cycle (hydraulic control) See Figure 3B. Valve cushions (slows) door opening in the backcheck range

Note: Never close this valve completely or damage to closer may occur.

Use 1/8" hex-key furnished and adjust as shown in Figure 5.

Installation of Cover:

  • Full cover: Slide cover insert into the un-used cutout in cover. Install cover using screws provided.
  • Narrow cover: Install cover using screws provided. Screw pinion cap onto shaft by hand or with a phillips screwdriver DO NOT OVER TIGHTEN.
  • Full metal cover: Fasten cover to mounting clips with screws provided.
  • Architectural plastic cover: Slide cover insert into the unused cutout in cover. Install standoffs in ends of closer. Snap cover onto standoffs.
  • Architectural metal cover: Remove cover insert where pinion is located. Install standoffs in ends of closer. Install cover using screws provided.

On/Off Hold Open Feature:

Slotted screw, accessible thru hole in face of track, engages or disengages the hold open feature with 1/4 turn of the screw. See Page 1 for location of screw.

Hold Open Power Adjustment:

If more hold open power is required, the power may be increased by turning the adjustment shaft in the end of the track nearest the hinges. Use 9/64" hex-key provided and rotate adjustment shaft clockwise to increase holding power.
