Installation Instructions

80-9303-2206-010 Rev 2 (09-17)

3000 Series Tri-Style

Non Handed Door Closer

An Incorrectly installed or improperly adjusted door closer can cause property damage or personal injury. These installation instructions should be followed to avoid the possibility of misapplication or misadjustment.

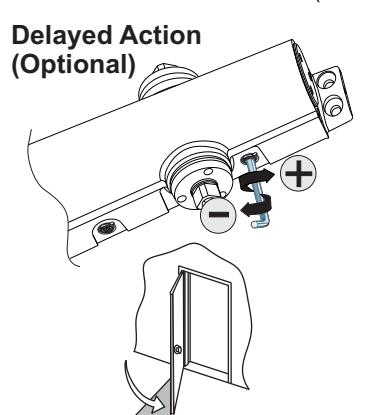

"DL" suffix (Delayed Action) is an optional feature.

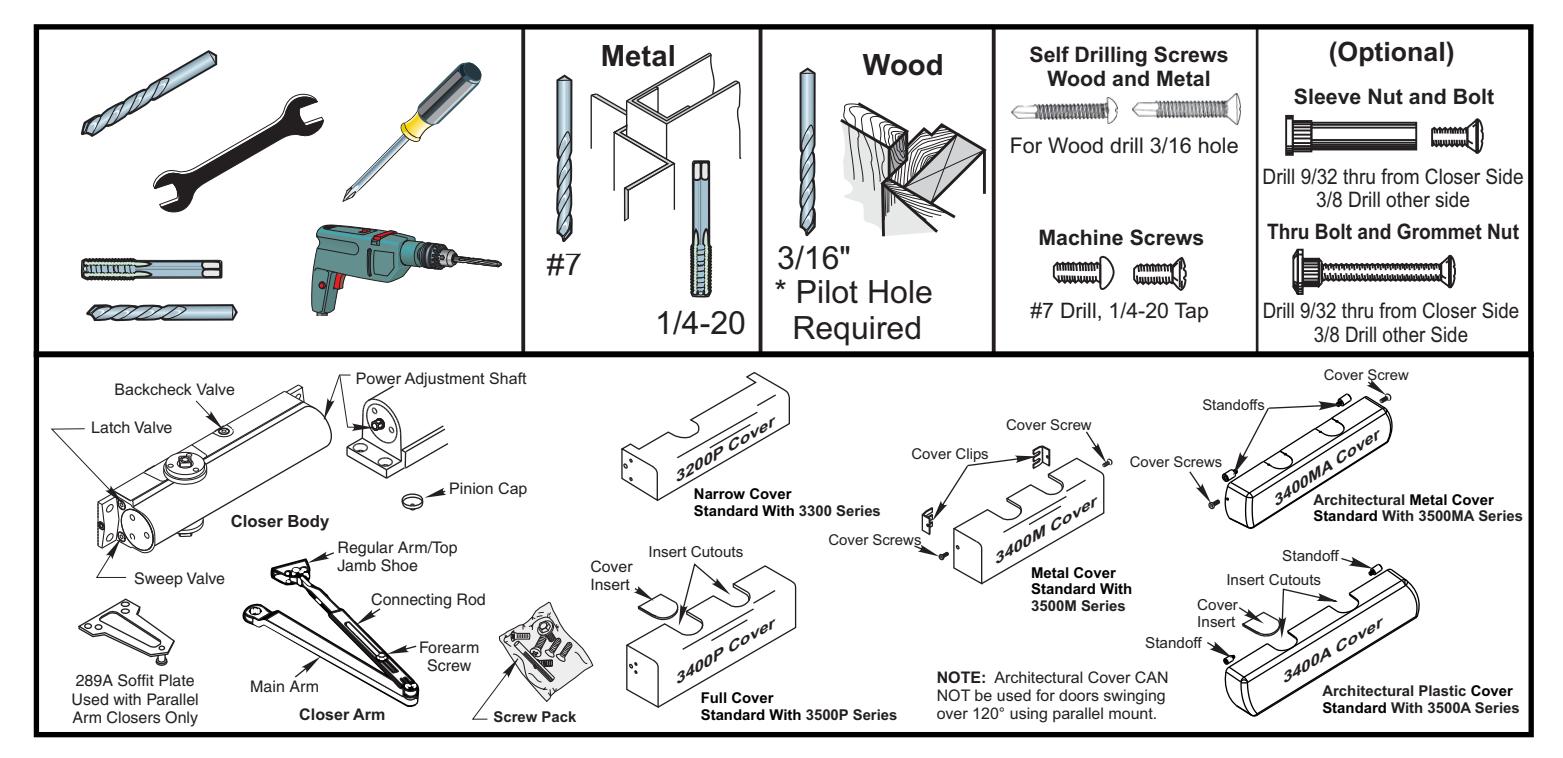

NOTE: For special applications a separate door and frame preparation template is packed with these instructions. Use this instruction sheet for installation sequence and closer adjustments only.

• Doors should be hung on ball bearing or anti-friction hinges.
• A separate door stop is recommended.
• Door and frame must be properly reinforced.
• Always adjust spring power before adjusting control.
• Adjust closing time speed between 3 and 7 seconds from 90° to 0°. Greater closing times may be required for elderly or handicapped.
• These door closers should NOT be installed on the exposed side (weather side) of exterior doors.

Non Hold Open Models

Sized (Sizes 2,3,4,5,6) 3100 3300 3500

Adjustable (Sizes 1 thru 6) 3301 3501

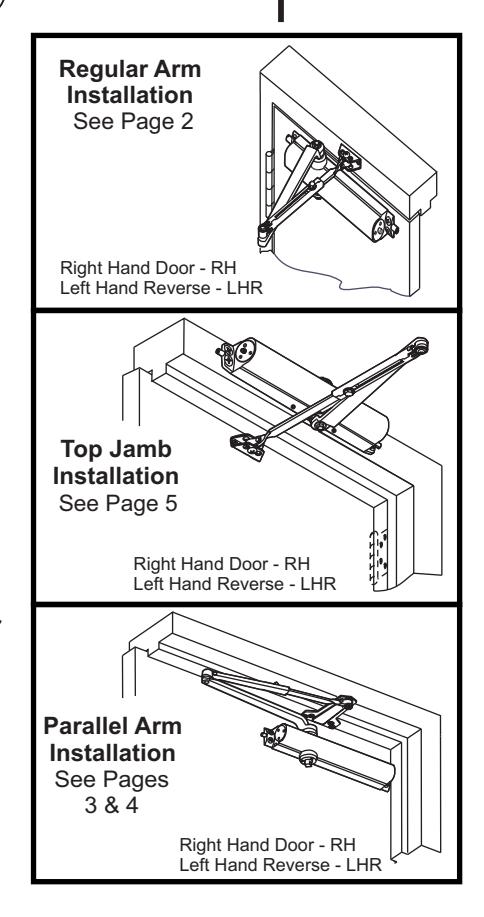

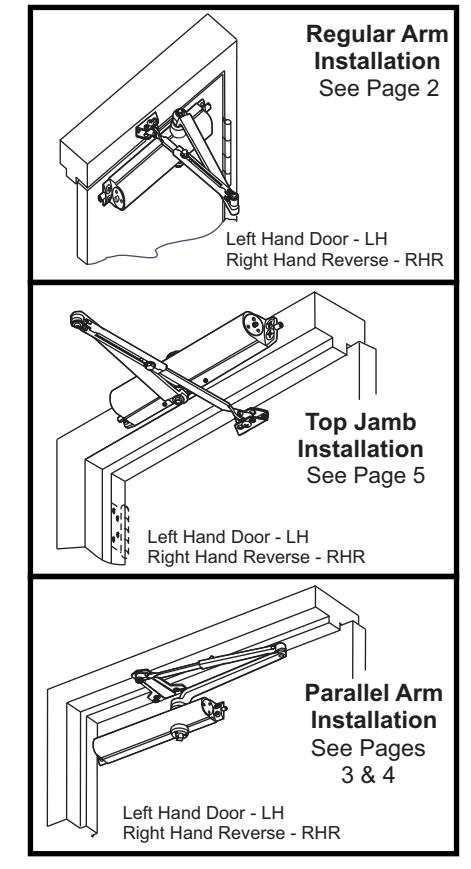

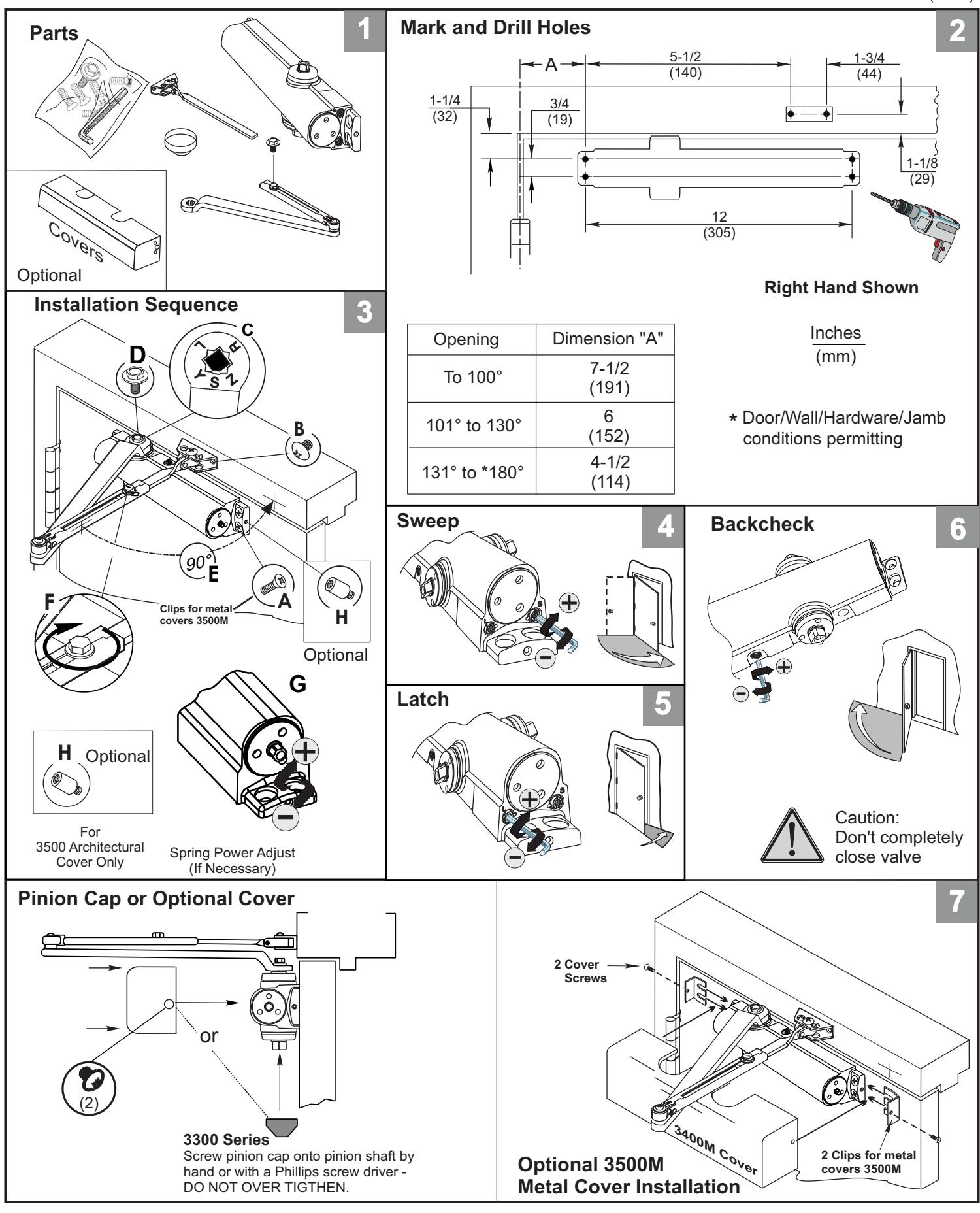

Non Hold Open Door Closers — Regular Arm

80-9303-2206-010 Rev 2 (09-17)

Non Hold Open Door Closers — Parallel Arm 80-9303-2206-010 Rev 2 (09-17)

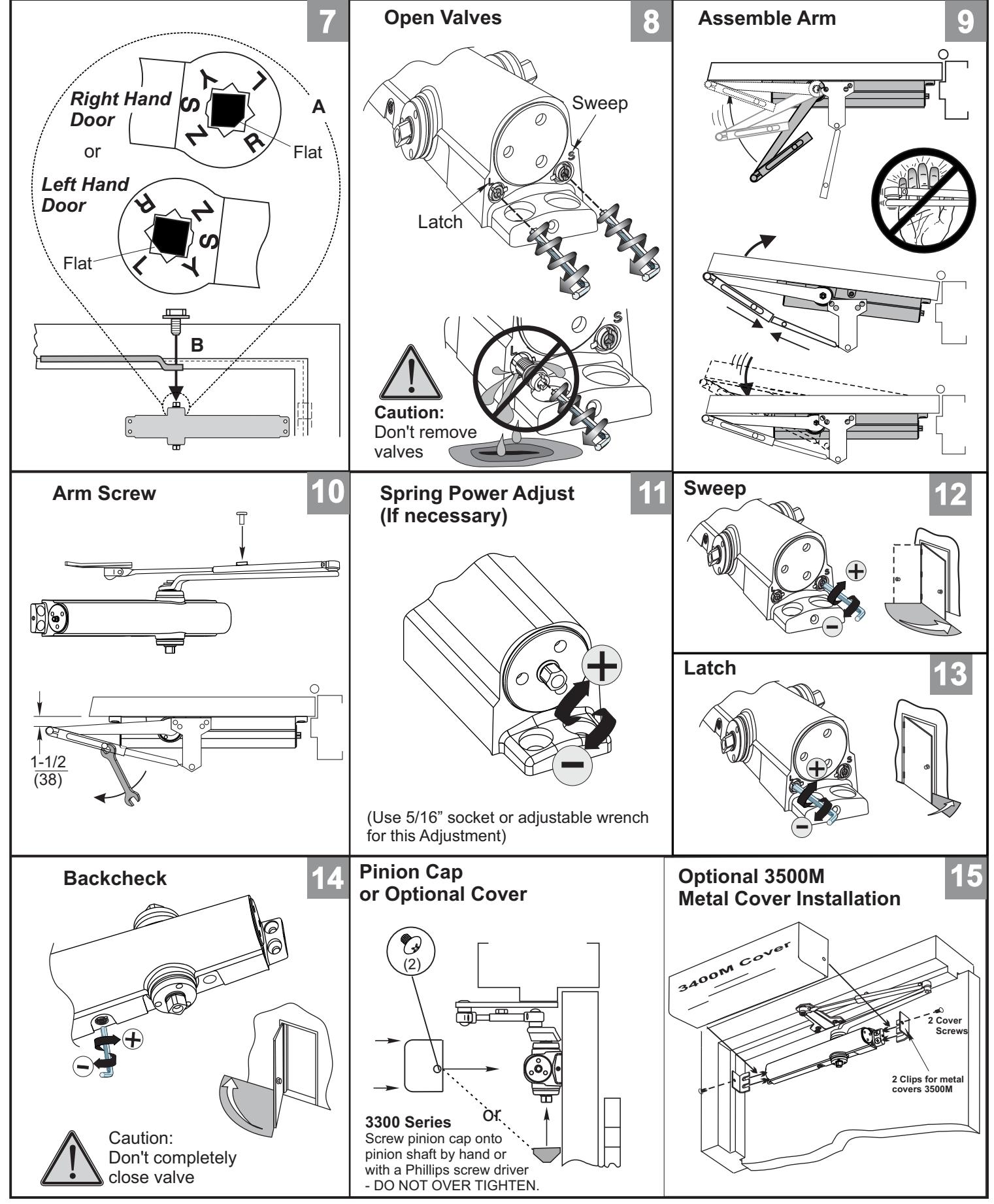

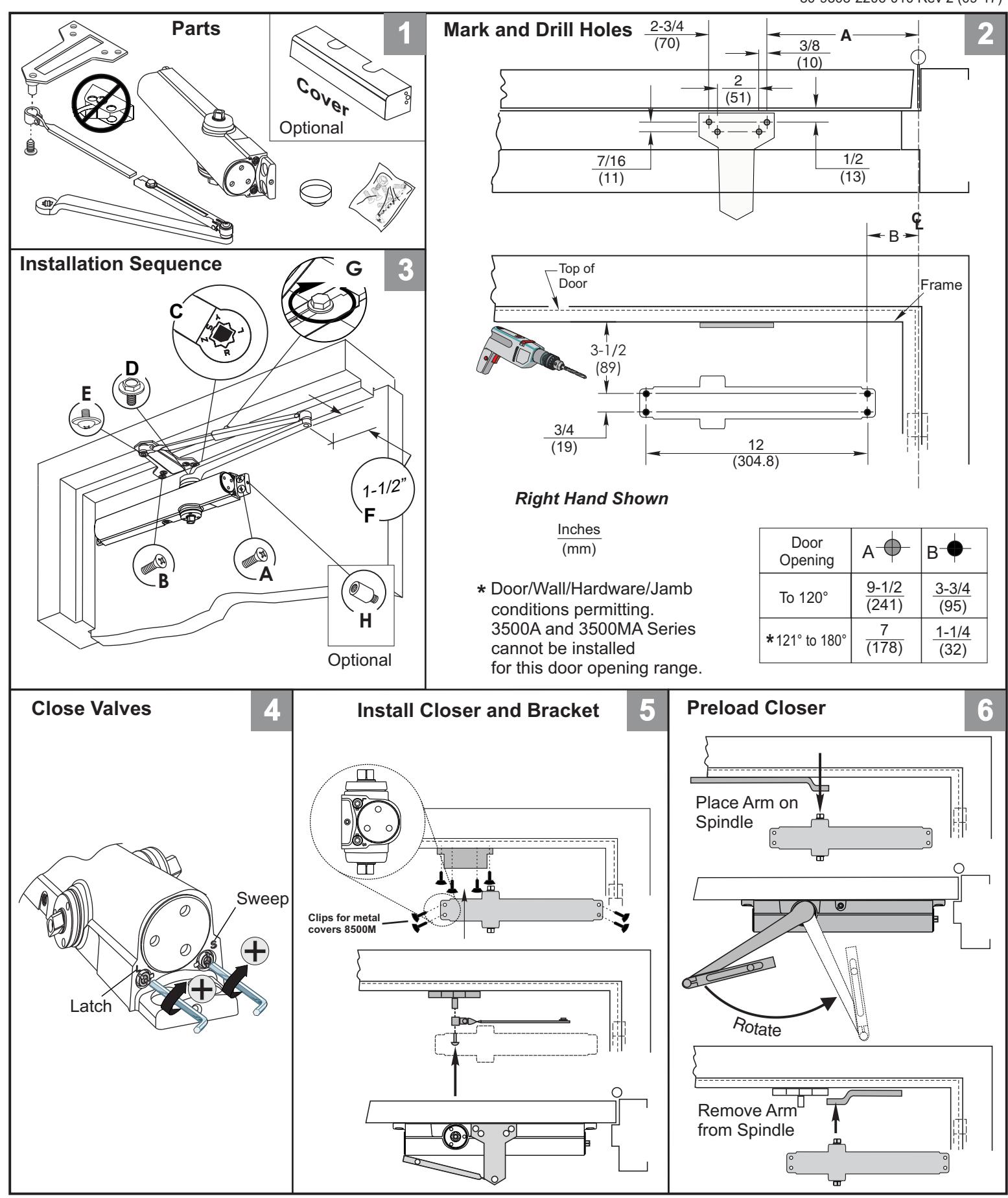

Non Hold Open Door Closers — Parallel Arm

80-9303-2206-010 Rev 2 (09-17)

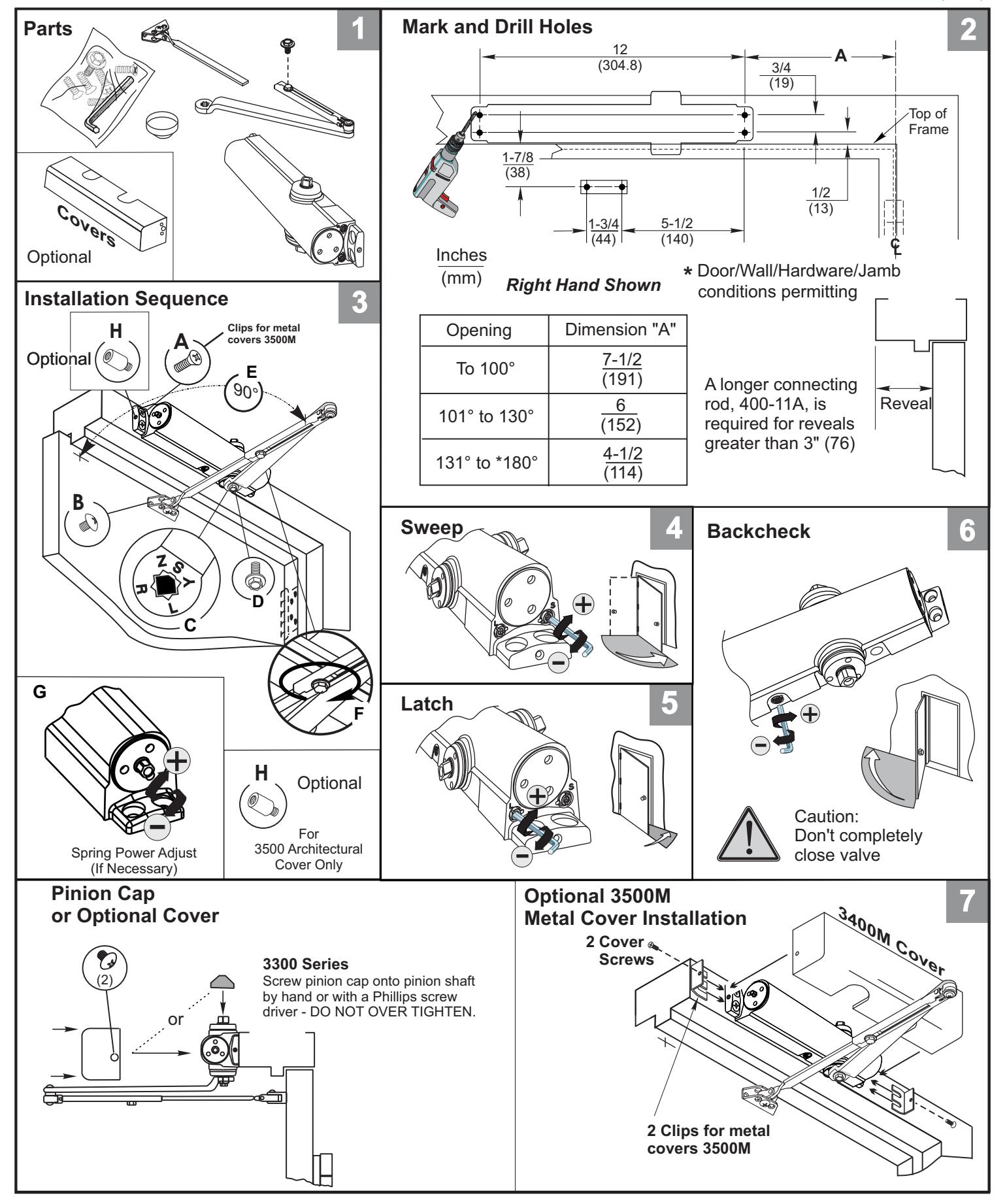

Non Hold Open Door Closers — Top Jamb Arm

80-9303-2206-010 Rev 2 (09-17)

80-9303-2206-010 Rev 2 (09-17)

Yale ® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company. Copyright © 2004, 2017, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.

Yale

An ASSA ABLOY Group brand

3000 Highway 74 East • Monroe, NC 28112 Tel: (800)-438-1951 • Fax: (800)-338-0965 www.yalecommercial.com

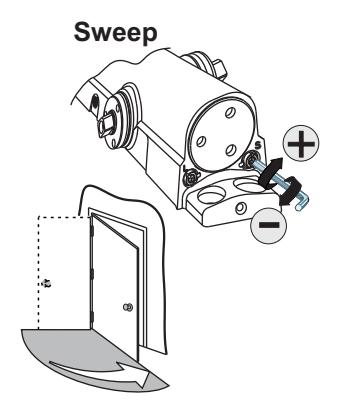

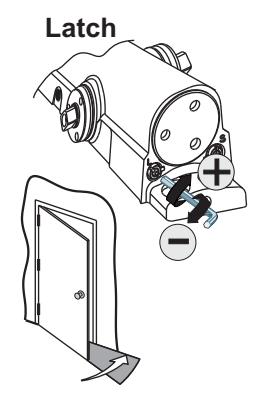

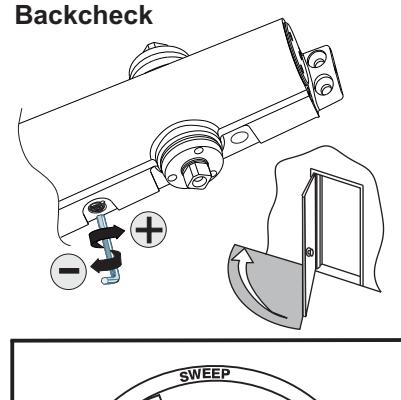

(Use 1/8" Hex Wrench for these Adjustments)

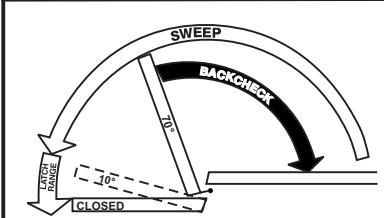

Adjust Closing Speed Time to between 3 to 7 seconds from 90°. Use of the door by handicapped, elderly or small children may require greater closing time.

Number of Turns Required

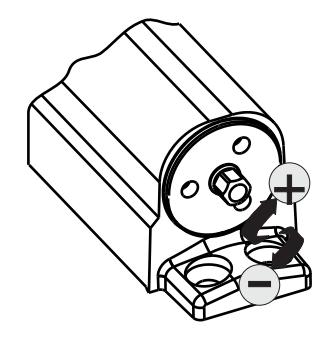

Spring Power Adjust

(Use 5/16" Socket or Adjustable Wrench for this Adjustment)

Adjustment	Chart
(3301 & 3501	Only)

(3301 & 3301 Only)
חטטם	ď	TYPE OF INST.		MAXIMUM DOOR SIZE
	DOOR		*	32" (0.85M)	36" (0.90M)	42" (1.00M)	48" (1.20M)
3100/3300/3500	INTERIOR	Regular Arm Top Jamb	TURNS OF OWER AT WRENC	5	8	11	13
		Parallel Arm		7	10	13	16
	EXTERIOR	Regular Arm Top Jamb		7	10	13	16
		Parallel Arm		9	12	15	18

*20 FULL (360°) TURNS MAXIMUM AVAILABLE Closer is shipped set at mid range setting = 10 turns

The closing force for series 3301 & 3501 door closers is adjustable from a size 1 to a size 6, as outlined in ANSI Standard A156.4. When these series of door closers are installed and adjusted to conform to ADA reduced opening force requirements (5 lbs max.) for interior doors, they may not have adequate closing force to reliably close and latch the door. Power adjustments charted on this page are recommended where possible, to ensure proper door control.

By law the Americans with Disabilities Act (ADA) may require that door closer installation comply with accessability guidelines.

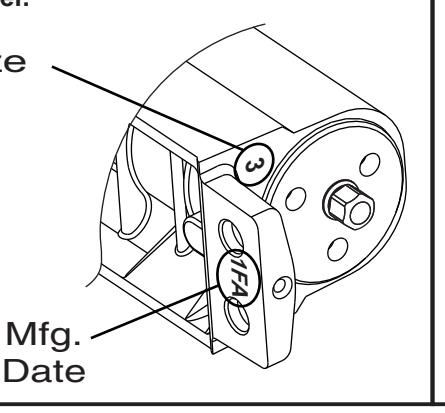

To identify your model:

Closer Size

Blank = 3301/3501

2 = 3302/3502

3 = 3303/3503

4 = 3304/3504

5 = 3305/3505

6 = 3306/3506

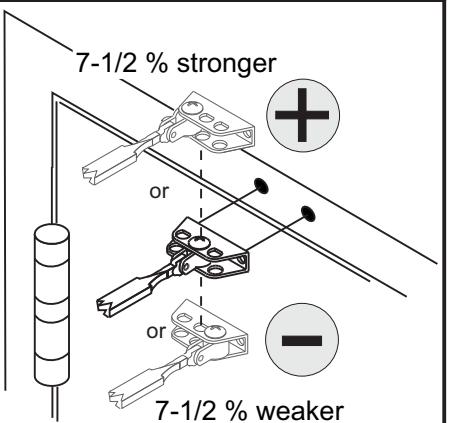

Arm Placement in Shoe
