ASSA ABLOY ACCENTRA 2700 Series 2711 Door Closer Top Jamb Hold Open Arm with 3148 or 3158 Drop Plate_7327-0156

Notes:

• 1. Do not scale drawing.
• 2. Left hand door shoown.
• 3. Dimensions are in inches (mm).
• 4. Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
• 5. Sex bolts required for wood or plastic faced fire door mounting.
• Minimum thickness recommended for reinforcements in hollow metal doors are frames: 1046" (2.66mm) unless other wise noted.

Experience a safer and more open world

Copyright © 2012, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

2711 Hold Open Door Closer

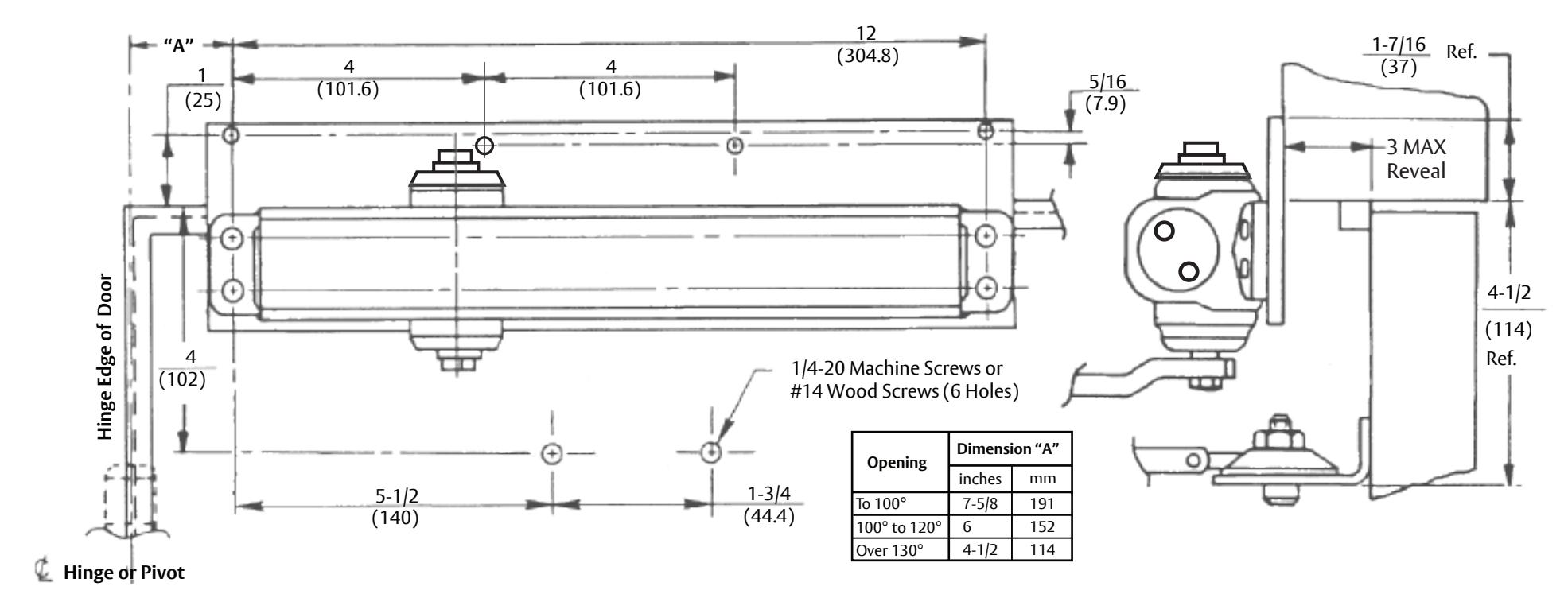

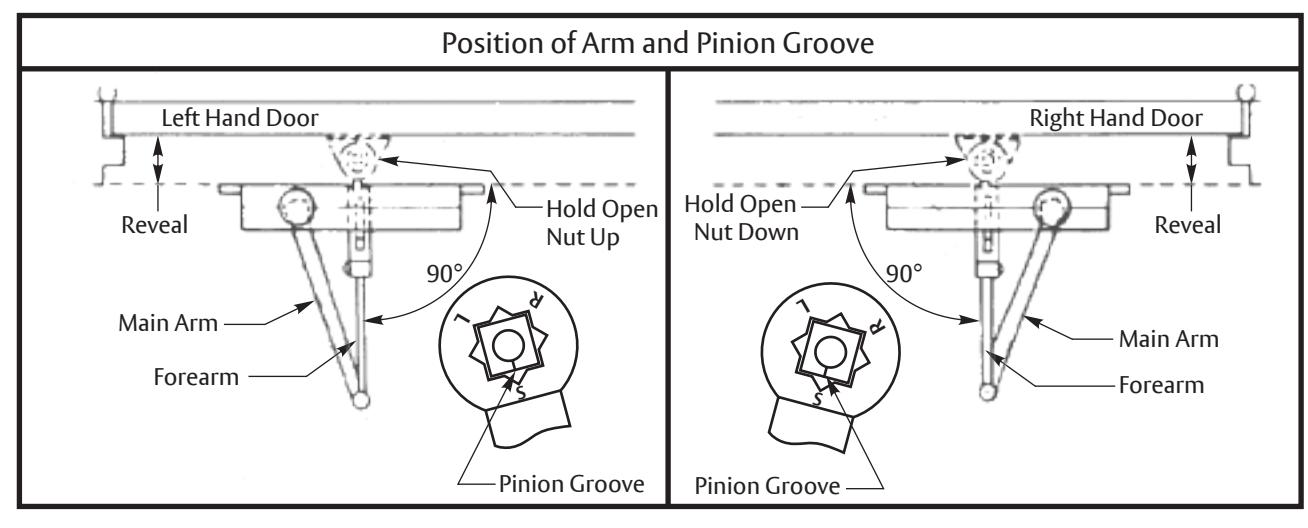

Top Jamb Hold Open Application With 3148 or 3158 Drop Plate

Template Number: 7327-0156

Sheet: 1 of 1

Date: 12/23
