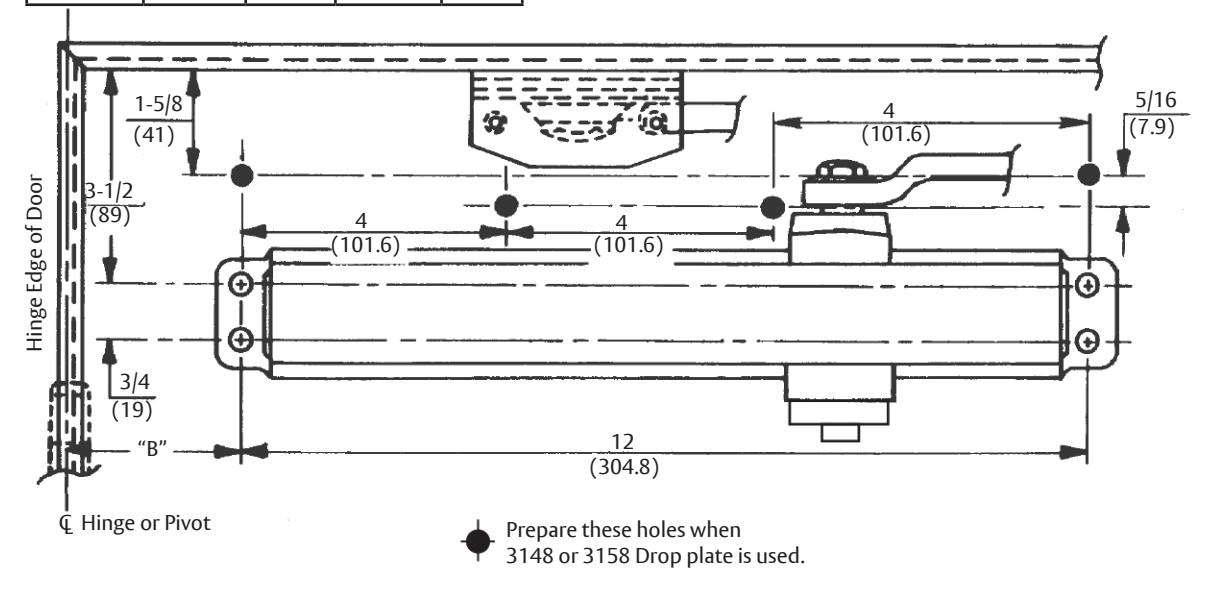

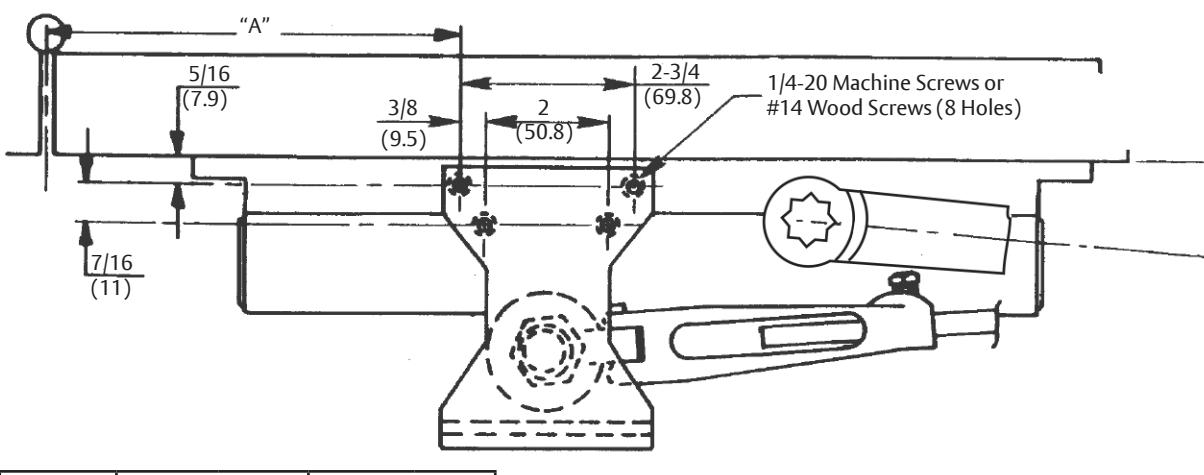

| Dimension "A" | Dimension "B" | |||
|---|---|---|---|---|
| Opening | Inches | mm. | Inches | mm. |
| To 120° | 9-1/2 | 241 | 3-3/4 | 95 |
| Over 120° | 7 | 178 | 1-1/4 | 32 |
- Do not scale drawing.

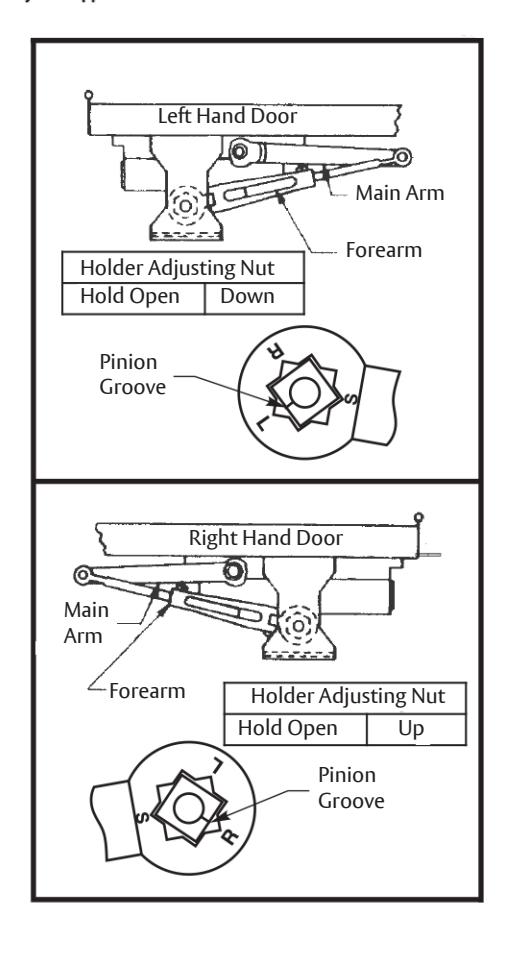

- Left hand door shown.
- Dimensions are in inches (mm) unless otherwise noted.
- Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
- Sex bolts required for wood or plastic faced fire door mounting.
- Minimum thickness recommended for reinforements in holllow metal doors and frames: .1046" (2.66mm) unless otherwise noted.
Copyright © 2012, 2024, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
2711 Hold Open Door Closer Parallel Hold Open With or Without 3148 or 3158 Drop Plate Date: 01/24
Template Number: 7327-0211 Sheet: 1 of 1
