ASSA ABLOY ACCENTRA 2700 Series 2711 Door Closer Parallel Hold Open Arm with or without 3148, 3158_7327-0212

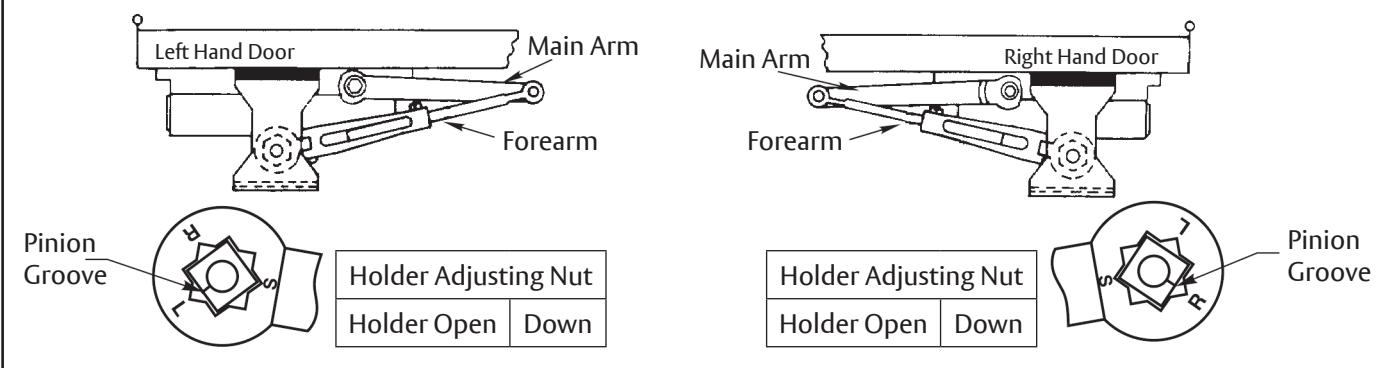

POSITION OF ARM AND PINION GROOVE

Notes:

• 1. Do not scale drawing
• 2. Left hand door shown.
• 3. Dimensions: inches / (mm)
• 4. Hollow metal doors require channel or box type reinforcement when through bolt mount is specified.
• 5. Sex bolt required on wood or plastic faced fire door mounting.
• 6. Minimum thickness recommended for reinforcements in hollow metal doors and frames: .105 (2.66) unless otherwise noted.

Copyright © 2012, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

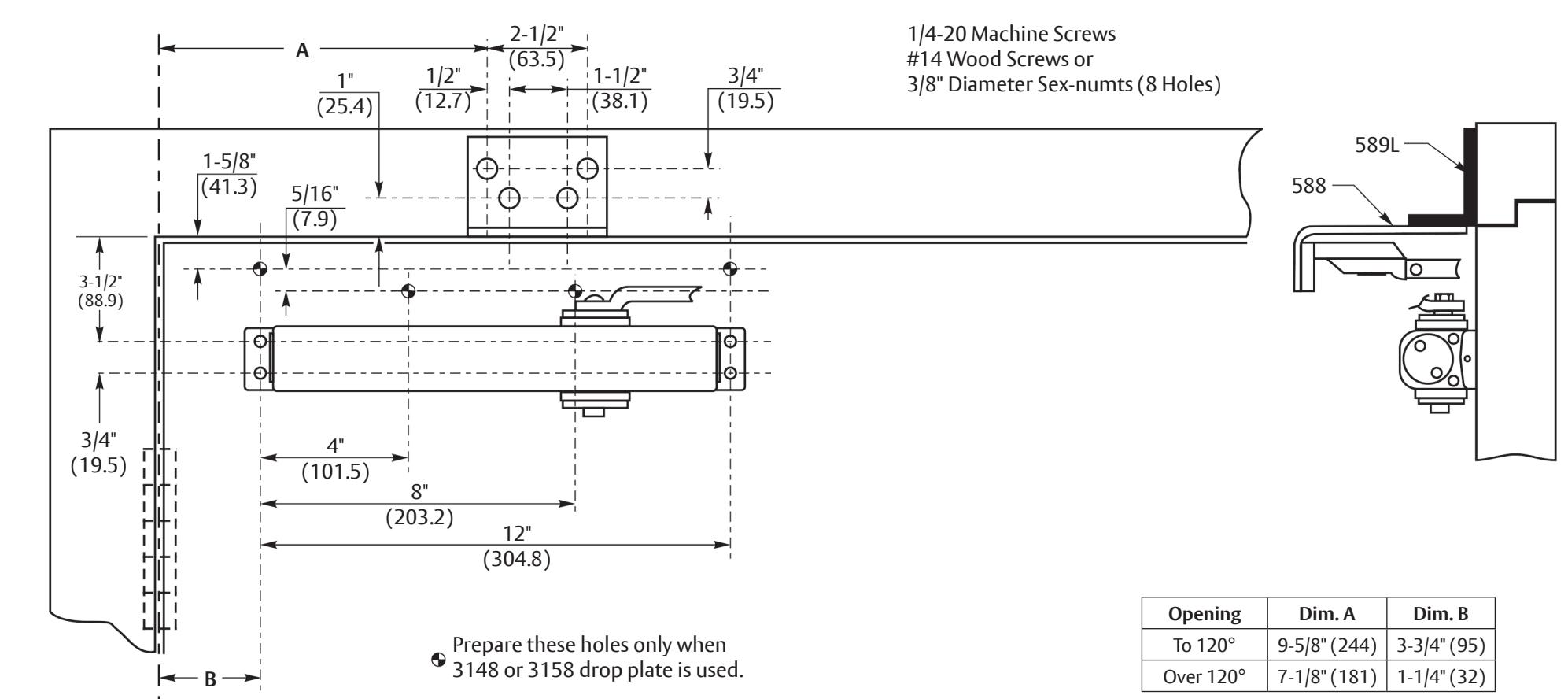

2711 Hold Open Door Closer Parallel Arm Application With 589L & 588 Brackets With or Without 3148 or 3158 Drop Plate Date: 12/23

Template Number: 7327-0212

Sheet: 1 of 1

1-800-438-1951 www.assaabloy.com
