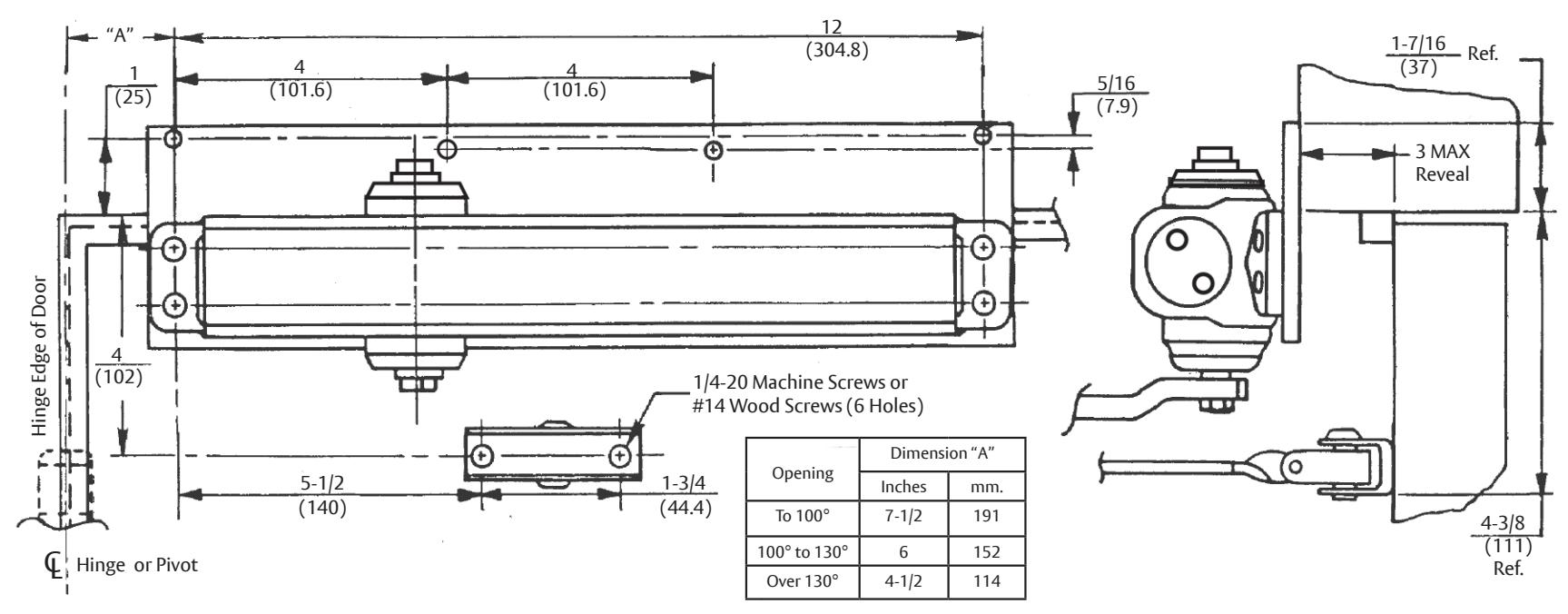

ASSA ABLOY ACCENTRA 2700 Series 2701 Door Closer Top Jamb Non-Hold Open Arm with 3148 Drop Plate_7327-0154

• Do not scale drawing.

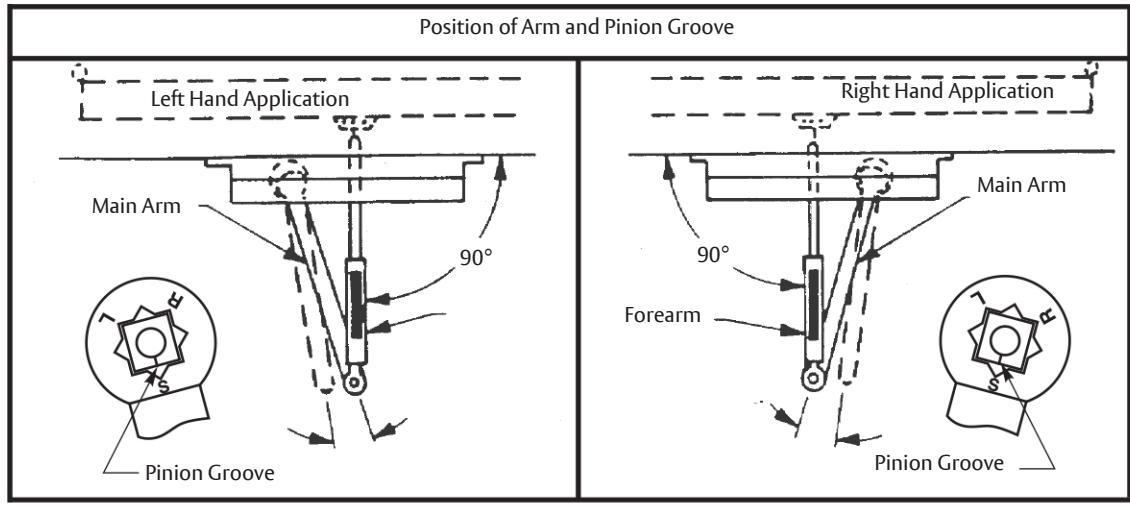

• Left hand door shown.
• Dimensions are in inches (mm) unless otherwise noted.
• Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
• Sex bolts required for wood or plastic faced fire door mounting.
• Minimum thickness recommended for reinforements in holllow metal doors and frames: .1046" (2.66mm) unless otherwise noted.

Copyright © 2012, 2024, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

2701 Non-Hold Open Door Closer Top Jamb Application With 3148 Drop Plate Date: 01/24

Template Number: 7327-0154 Sheet: 1 of 1
