ASSA ABLOY ACCENTRA 2700 Series 2701 Door Closer Parallel Non-Hold Open Arm with or without 3148_7327-0203

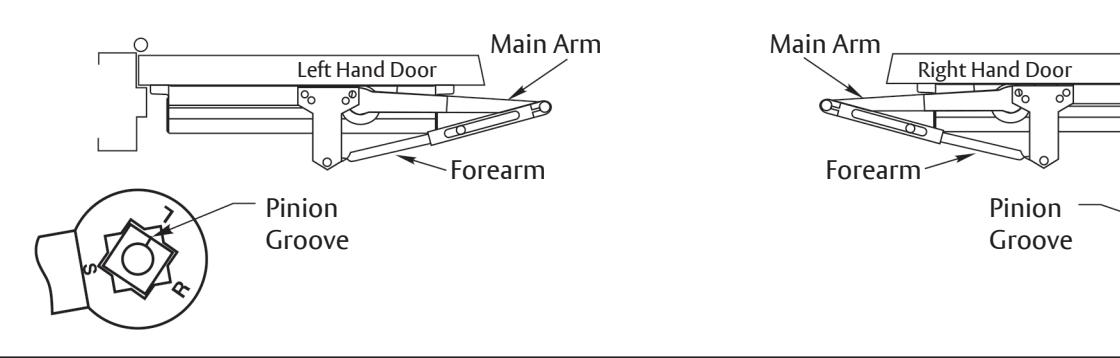

POSITION OF ARM AND PINION GROOVE

Notes:

• 1. Do not scale drawing
• 2. Left hand door shown.
• 3. Dimensions: inches / (mm)
• 4. Hollow metal doors require channel or box type reinforcement when through bolt mount is specified.
• 5. Sex bolt required on wood or plastic faced fire door mounting.
• 6. Minimum thickness recommended for reinforcements in hollow metal doors and frames: .105 (2.66) unless otherwise noted.

Copyright © 2012, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

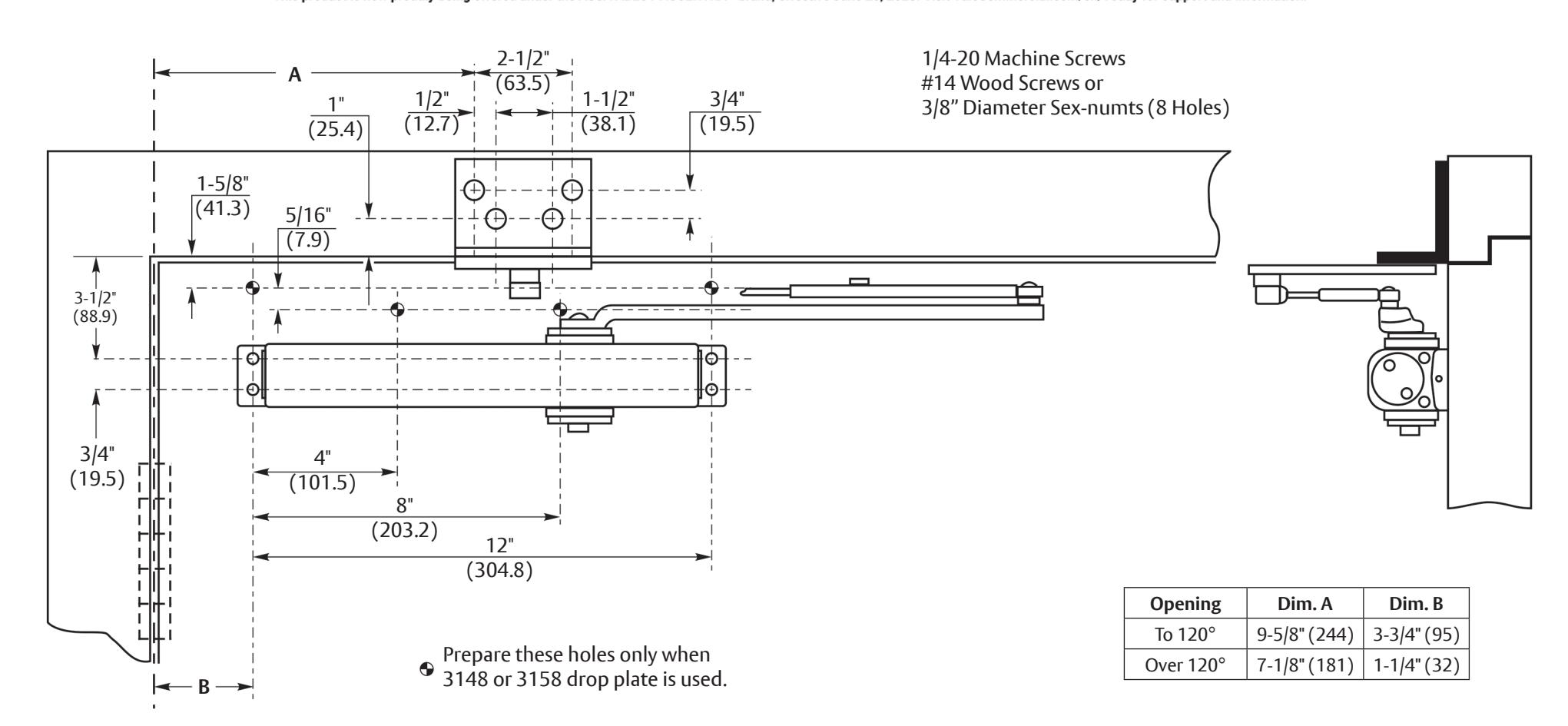

2701 Non-Hold Open Door Closer Parallel Arm Application With 589L Bracket With or Without 3148 or 3158 Drop Plate Date: 12/23

Template Number: 7327-0203

Sheet: 1 of 1

1-800-438-1951 www.assaabloy.com
