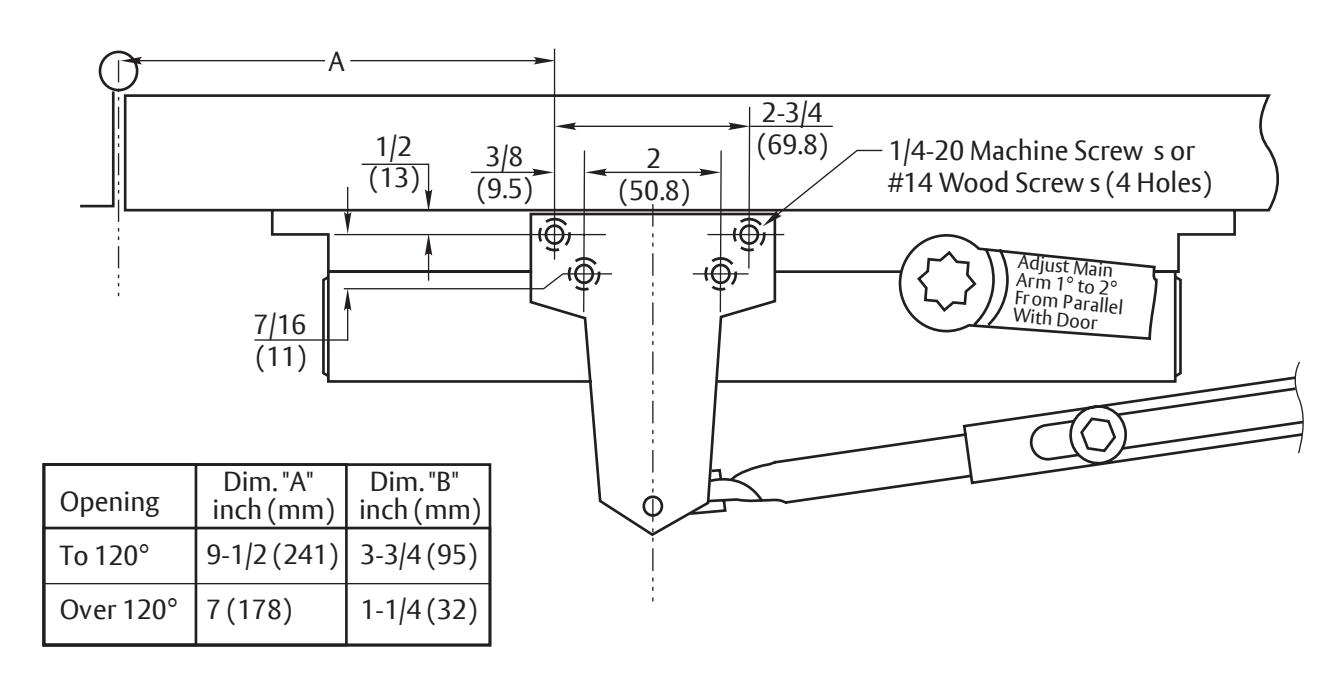

ASSA ABLOY ACCENTRA 2700 Series 2701 Door Closer Parallel Non-Hold Open Arm with or without 3148_7327-0201

• Do not scale drawing

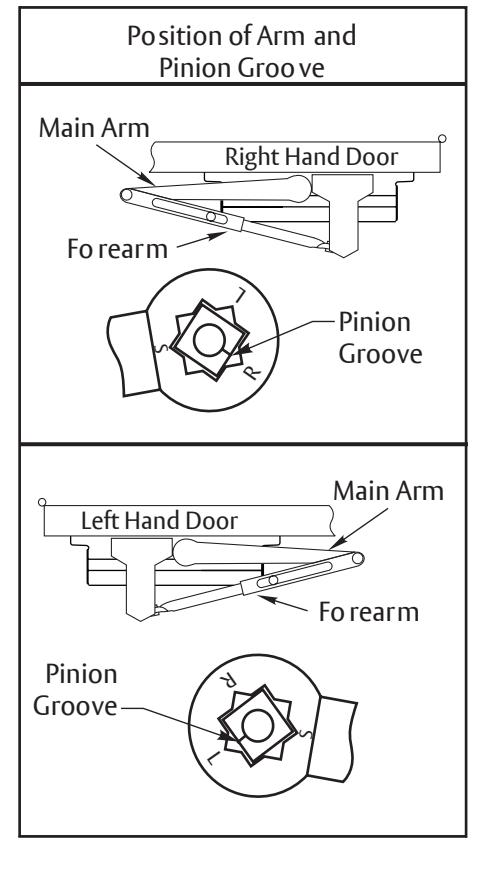

• Left hand door shown
• Dimensions are in inches (mm).
• Hollow metal doors require channnel or box type reinforcement when thru bolt mount is specified.
• Sex bolt required for wood or plastic faced fire door mounting.
• Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046 (2.66mm) unless otherwise noted.

Experience a safer and more open world

Copyright © 2012, 2024, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group. Inc. is prohibited.

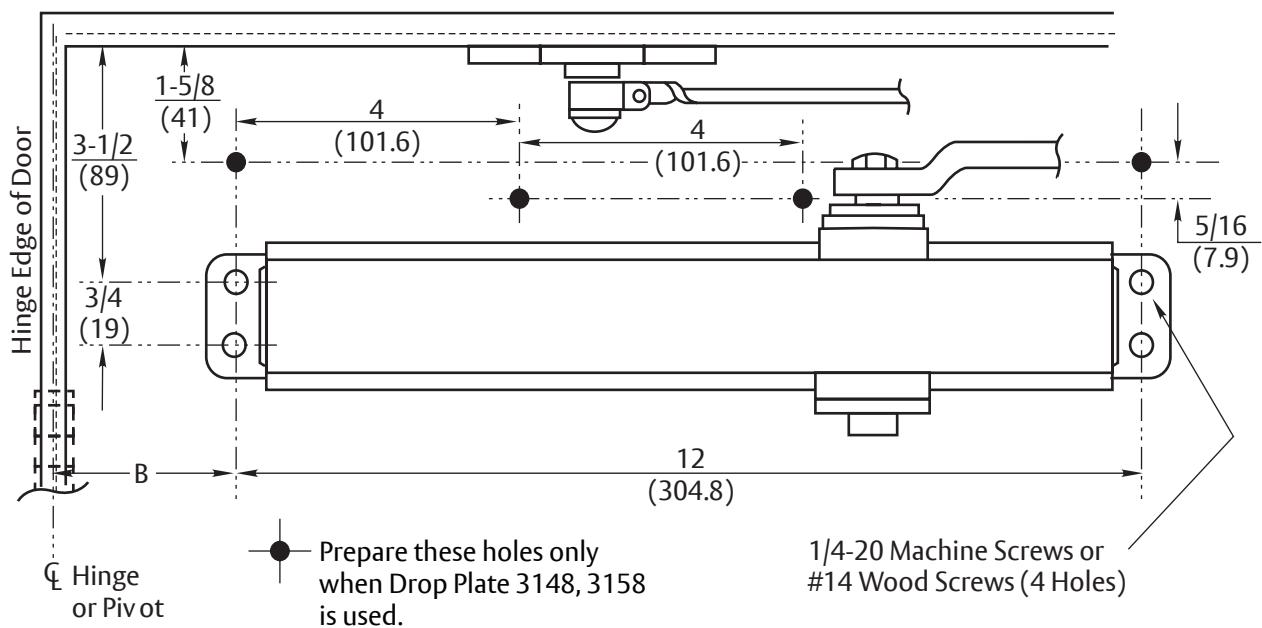

2701 Non-Hold Open Door Closer Parallel Arm Application With or Without 3148 or 3158 Drop Plate

Template Number: 7327-0201

Sheet: 1 of 1

Date: 01/24
