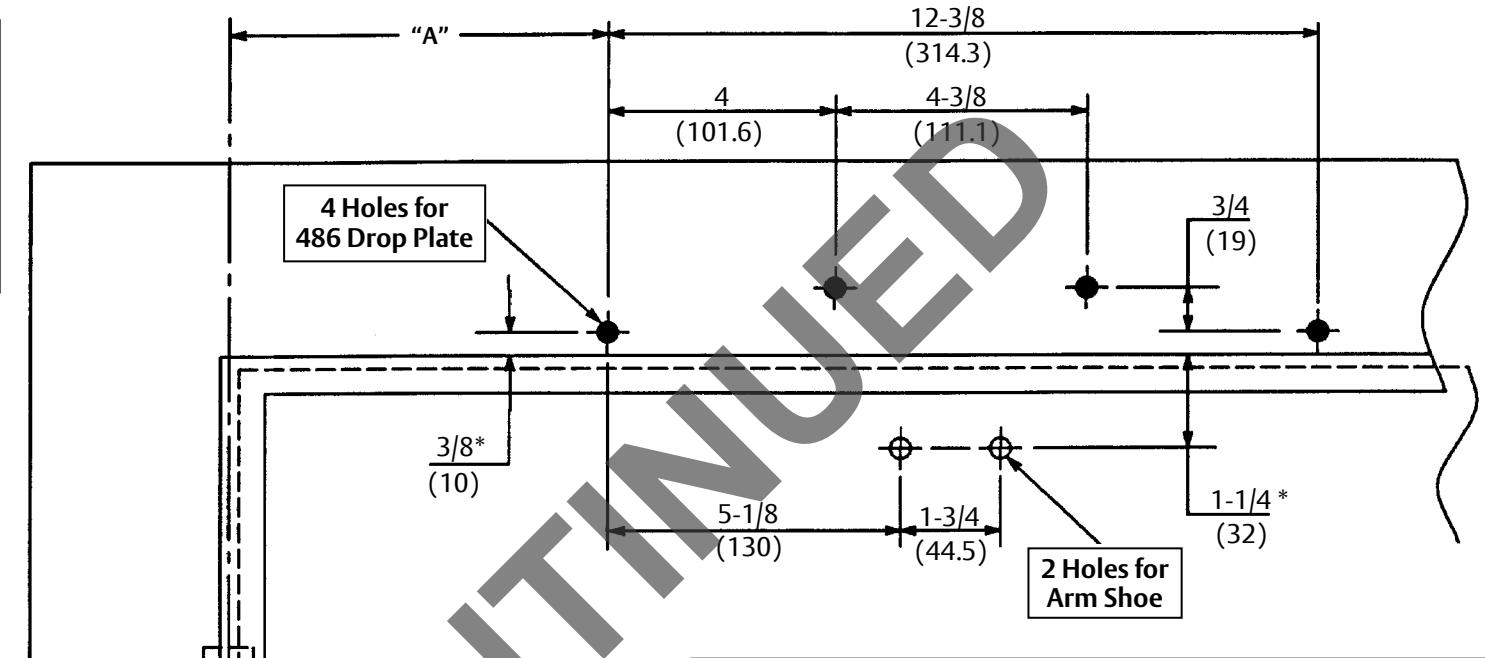

ASSA ABLOY ACCENTRA 2400, 4480 Top Jamb Low Profile Arm w, 486 Drop Plate Template_7344-0157

Opening	Dim. "A"
To 100°	7-5/8 (194)
100° to 120°	6-5/8 (168)
120° to 150°	4-5/8 (117)
150° to 180°	4-1/8 (105)

Caution: Door swing may be limited by door, frame, wall or hardware conditions.

C Hinge or Pivot

Notes:

• 1. Do not scale drawing.
• 2. Left hand door shown.
• 3. Dimensions are in inches (mm).
• 4. Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
• 5. Sex bolts may be required for wood or plastic faced fire door mounting.
• 6. Minimum thickness recommended for reinforcements in hollow metal doors and frames: 0.1046" (2.66mm) unless otherwise noted.

Preparation for Fasteners
		Fasteners	Door or Frame	Drill Sizes
	rd	#14 type "A" S.M. Screw	Wood	7/22//(5.5)
•	Standard	Arm: 1-1/4" (32mm) Closer: 2-3/4" (70mm)	Aluminum	7/32" (5.5mm)
	Sta	1/4-20 machine screw	Metal	drill: #7 (.201") tap: 1/4-20
	Optional	Sex nuts and bolts	Hollow Metal	9/32" (7.00mm) thru; 3/8" (9.50mm) on door or transom face opposite to closer
			Aluminum or Wood	3/8" (9.50mm) thru
		Thru bolts and grommet nuts	All	9/32" (7.00mm) thru; 3/8" (9.50mm) dia. x 3/8" (10mm) deep on door or transom face opposite to closer

Experience a safer and more open world

Copyright © 2004, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

2400/TJ2400 Series Door Closers - Sized 2 thru 6 4480/TJ4480 Series Door Closers - Multi-Size 1 to 6 With 486 Drop Plate Top Jamb Non-Hold Open Low Profile Arm Application

Template Number: 7344-0157 Sheet: 1 of 1

Date: 12/23

ASSA ABLOY

1-855-557-5078 www.assaabloy.com

^* Always use frame or transom rabbet as reference plane, not bottom of stop.
