2300BC Series
Door Closers
ACCENTRA ASSA ABLOY
ASSA ABLOY is transitioning the Yale Commercial brand to ACCENTRA. This affects only the brand name; the products and product numbers will remain unchanged. Prior to May 20, 2024, products may be shipped either as Yale Commercial brand or ACCENTRA brand. Products shipping after May 20, 2024, will be branded ACCENTRA.
contents
overview
introduction

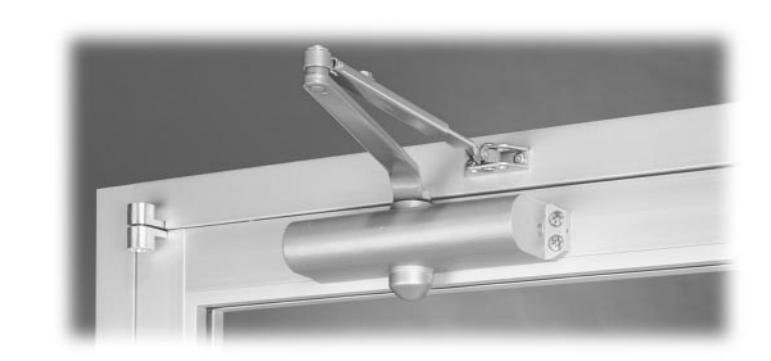

The 2300BC is a durable, economically priced door closer designed for commercial exterior and interior doors such as storefront and industrial applications.
Features :
- Spring sizes 2, 3, 4, 5
- Separate and independent valve for sweep speed and latch speed
- Adjustable backcheck
- Bi-packed (regular arm and top jamb mounting)
- 5-year limited warranty
Optional Features:
- Parallel mount (prefix PA)
- Friction hold open arm
| Finishes2 | |
|---|---|
| Applications3 | |
| Features4 | |
| Accessories5 | |
| Technical Details6-8 | |
| Parts List9-11 | |
| How To Order11 |
Introduction ..........................................2 Compliance Standards .........................2
compliance standards
All 2300BC series closers are ANSI/BHMA A156.4, Grade 3. All Yale® series 2300BC closers with non-hold open arms are listed by Underwriters' Laboratories for labeled fire doors. This includes compliance to UL10C and UBC-72 (1997) for 3-hour assemblies. The product is manufactured in an ISO 9001 facility. These closers are also listed by New York City Board of Standards and Appeals; Materials and Equipment Acceptance Division (41-60-SM).
finishes
All door closers are painted with waterborne acrylics. All steel parts, mounting plates and brackets are powder coated. The closers will withstand 120 hours of salt spray. ANSI only requires 25 hours.
Sprayed Finishes
| Description |
Specify
(BHMA) Designation |
Complements the Following
Finishes |
Old
Designation |
|---|---|---|---|
| Aluminum | 689 | 628, 625, 629, 630, 651, 652 | SB |
| Statuary Bronze | 690 | 640, 613 | STAT |
| Dull Bronze | 691 | 612, 637, 639 | BL |
| Black | 693 | 315 | 315 |
| Medium Amber | 694 | 312 | |
| Gold | 696 | 605, 606, 632, 633 | GB |
| Prime Coat (Beige) | 600* | SRI |
*600 is a special rust inhibiting prime coat. Closers can be ordered prime coat only (specify closer x 600). An additional charge applies if finish coat is required over prime coat (ex: 2303BC x 600 x 689).
applications
regular arm
This is the only pull-side application for the 2300BC series door closer. It is the most power-efficient application for a door closer. Sufficient frame, door and/or ceiling clearance must be considered.
Since the arm assembly projects directly out from the frame, this application may present an aesthetics issue or be prone to vandalism.
parallel arm

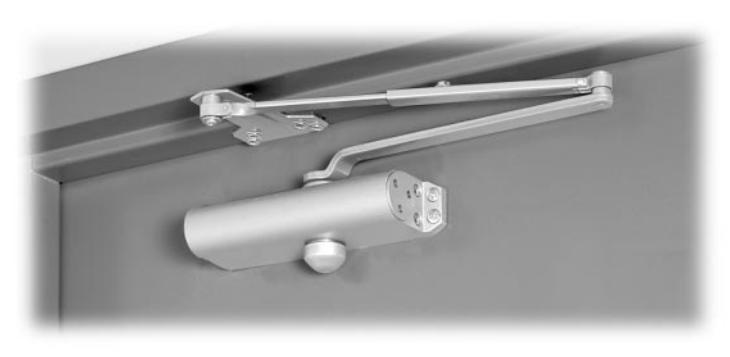

This application provides the most appealing design appearance for the 2300BC series door closer. It is on the push side of the door and the arm assembly extends almost parallel to the door. In the closed position, there is very little or no hardware projecting beyond the frame face in most situations.
Due to the geometry of the arm it is approximately 25% less power-efficient than a regular arm application.
The entire closer and arm assembly are mounted below the frame stop, requiring a top rail clearance on the door of 5" (127mm), without using a drop plate. A 2388 drop plate requires a top rail clearance of just 2-5/8" (67mm).
top jamb

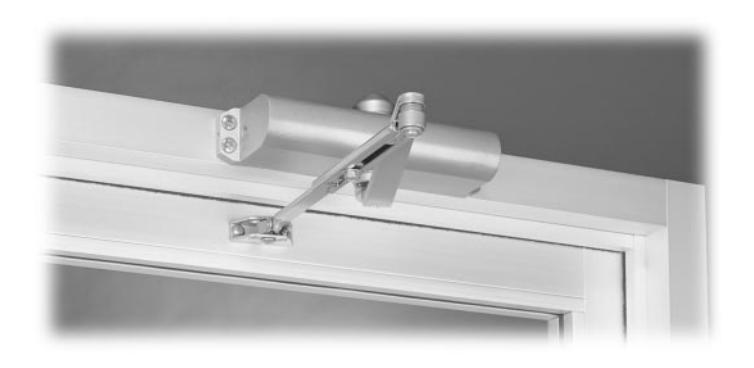

For efficiency reasons this push side application provides the best alternative to the regular arm application. There must be sufficient frame face and/or ceiling clearance for this application. It requires a top rail on the door of just 1-7/8" (48mm). This application provides the best door control for doors in exterior walls that swing out of a building. It will accommodate frame reveals to a maximum of 2-7/8" (73mm).
The entire door closer and arm assembly project from the frame, similar to the regular arm application, where matters of appearance can be of concern.
features
Aluminum Alloy Housing
Closer bodies are constructed of a special aluminum alloy, carefully selected to accommodate interactive steel components and operating conditions.
Rack & Pinion Operation
Provides a smooth constant control of the door through its full opening and closing cycle. 180° door swing can be achieved when door, frame, hardware and arm function do not interfere.
Closer Fluid
All door closers are supplied with a temperature stable, multi-viscosity fluid. This fluid will permit the door closer to perform within a wide temperature range from very high to as low as -40°F.
Non-Handed
Pinion shaft extends vertically through the closer body in both directions. This permits the closer to be positioned on either right- or left-hand doors for most applications.
Non-Critical Control Valves
All control valves for sweep speed, latch speed and backcheck cushioning are non-critical and are adjusted by a standard 1/8" (3mm) hex wrench.
Adjustable Backcheck Cushion Valve
Provides control of the door in the opening cycle, beginning at approximately 75° of door opening. It slows/cushions the door opening when the door is forcibly opened beyond its pre-adjusted speed limitation.
Adjusta Power Shoe
Supplied as standard for a 15% (±7-1/2%) power adjustment by relocating the forearm at the shoe, for regular arm and top jamb non-hold open installations.
optional features
Hold Open Arm
Closer arm has adjustable hold open feature (90° to 180°). This arm is non-handed.
Fasteners
|
Type
Description |
Arm | ||||
|---|---|---|---|---|---|
| RA | PA | TJ | |||
| DOOR | |||||
| SDST | Self Drilling Self Tapping | S | S | S | |
| MS | Machine Screw | S | S | S | |
| SN | Sleeve Nut | O | O | O | |
| TBGN | Thru Bolts & Grommet Nuts | O | O | O | |
| FRAME | |||||
| SDST | Self Drilling Self Tapping | S | S | S | |
| MS | Machine Screw | S | S | S | |
S = standard; O = optional
SN are for use on unreinforced hollow metal doors or to prevent any hollow metal door from collapse/dimpling. They can also be used for through-bolting on wood doors. SN are supplied for 1-3/4" (44mm) thick doors unless specified for 1-3/8" (35mm) or 2-1/4" (57mm) thick doors.
TBGN are an alternative to SN for wood doors. TBGN are supplied standard for 1-3/4" (44mm) thick doors. They can be specified for 1-3/8" (35mm) thick doors.
accessories
top jamb closer mounting plate

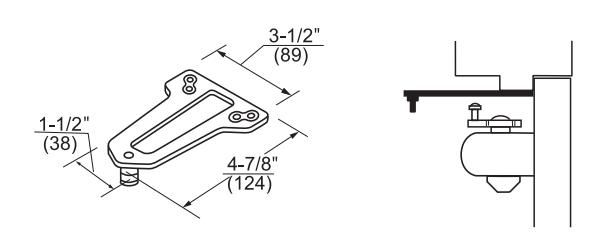

Top Jamb - #2388 Drop Plate
For use where there is insufficient ceiling clearance or the frame face is too narrow to mount a closer body. This drop plate can be used to mount a closer on a frame face as narrow as 1-1/2" (38mm).

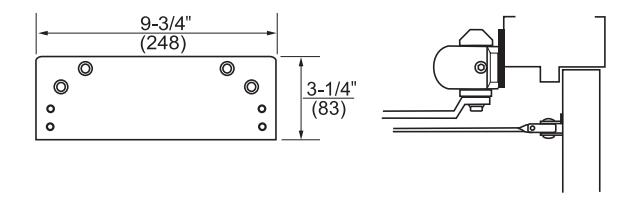

parallel arm closer mounting plate
Parallel Arm - #2388 Drop Plate
For use where a narrow top rail prevents the closer from being mounted directly to the door surface. This drop plate can be used to mount a closer on a top rail as narrow as 2-5/8" (57mm).
brackets for non-hold open arms brackets for hold open arms
This soffit plate is supplied to permit parallel arm mounting. It can be mounted where the frame soffit is as narrow as 1" (25mm).
#2588 Adapter Plate
This adapter plate is supplied standard with parallel arm hold open closer. It can also be used to convert hold open arms for parallel arm installation. It can be mounted where the frame soffit is as narrow as 1" (25mm).
technical details

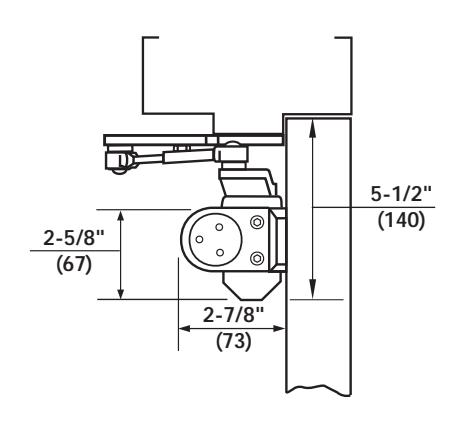

regular arm

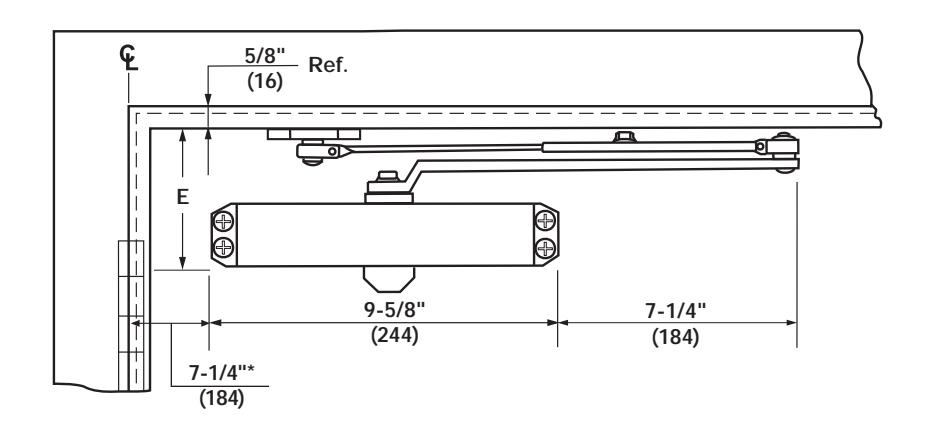

* Template position for 100° door opening
Mounting holes for closer body are spaced 3/4" vertically x 9-1/16" horizontally.
| E | ||||
|---|---|---|---|---|
| Minimum Ceiling Clearance | ||||
| Non-Hold Open | Hold Open | |||
| 1-1/2" (38mm) | 1-5/8" (41mm) | |||
door closer size
Note: Door closing force is not adjustable. Correct size must be selected.
|
Recommended Maximum Door Width
Inches (cm) |
Model # | ||
|---|---|---|---|
| Interior | Exterior | Non-Hold Open | Hold Open |
| 34" (86) | 30" (76) | 2302BC | 2312BC |
| 40" (102) | 34" (86) | 2303BC | 2313BC |
| 48" (122) | 40" (102) | 2304BC | 2314BC |
| — | 48" (122) | 2305BC | 2315BC |
All dimensions are for reference only and are in inches (mm) unless otherwise noted. Door sizing information is based on installation on standard weight doors, 7'0" (213cm) high x 1-3/4" (44mm) thick; hung on anti-friction hinges and operating under normal conditions. Doors in excess of 7'8" (234cm) high or 1-3/4" (44mm) thick, templated openings beyond 150° or doors subject to wind or draft conditions will generally require the next larger size closer.
technical details

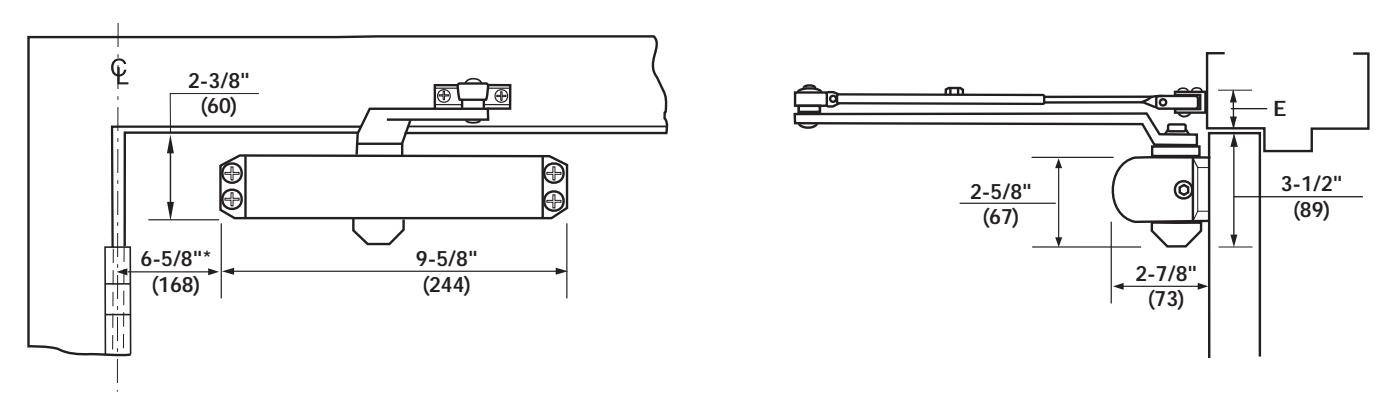

top jamb
* Template position for 100° door opening
Non-hold open - 2301-11A Hold open - 2301-31A
Mounting holes for closer body are spaced 3/4" vertically x 9-1/16" horizontally.
| E | A | ||
|---|---|---|---|
| Minimum Ceiling | Minimum Top Rail | ||
| Clearance | 5/8" (16mm) Frame Stop | ||
| Without | With 2388 | Without | With 2388 |
| Drop Plate | Drop Plate | Drop Plate | Drop Plate |
| 2-5/8" | 1-3/4" | 1-7/8" | 3-3/8" |
| (67mm) | (44mm) | (48mm) | (86mm) |
door closer size
Note: Door closing force is not adjustable. Correct size must be selected.
| Recommended Maximum Door Width Inches (cm) | Mode | l # | |
|---|---|---|---|
| Interior | Exterior | Non-Hold Open | Hold Open |
| 34" (86) | 30" (76) | 2302BC | 2312BC |
| 40" (102) | 34" (86) | 2303BC | 2313BC |
| 48" (122) | 40" (102) | 2304BC | 2314BC |
| _ | 48" (122) | 2305BC | 2315BC |
All dimensions are for reference only and are in inches (mm) unless otherwise noted. Door sizing information is based on installation on standard weight doors, 7'0" (213cm) high x 1-3/4" (44mm) thick; hung on anti-friction hinges and operating under normal conditions. Doors in excess of 7'8" (234cm) high or 1-3/4" (44mm) thick, templated openings beyond 150° or doors subject to wind or draft conditions will generally require the next larger size closer.
** For frame reveals in excess of 2-7/8" (73mm) order a longer adjusting rod:
technical details

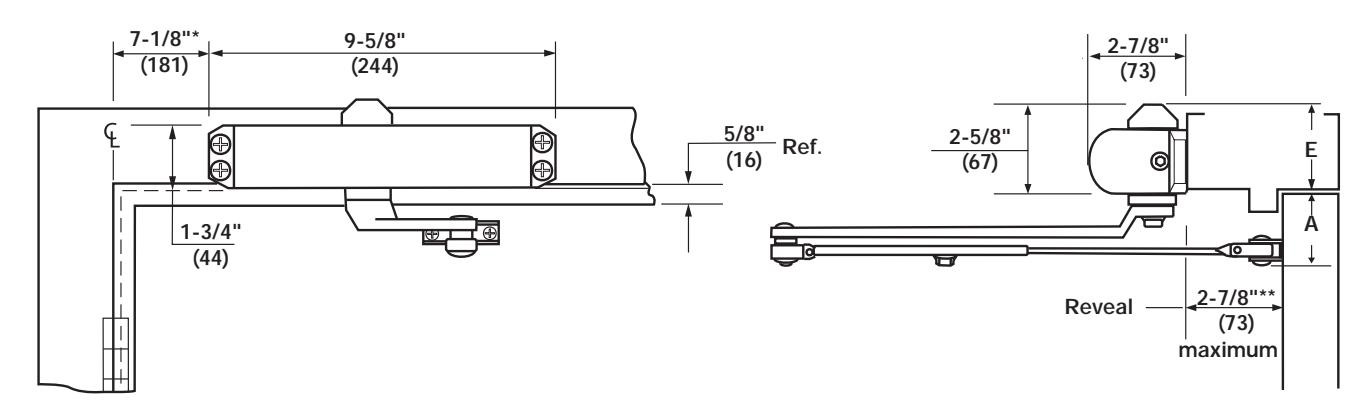

parallel arm
Mounting holes for closer body are spaced 3/4" vertically x 9-1/16" horizontally.
|
E
Minimum Top Rail 5/8" (16mm) Frame Stop |
||||
|---|---|---|---|---|
| Without Drop Plate | With 2388 Drop Plate | |||
| 5" (127mm) | 2-5/8" (67mm) | |||
door closer size
Note: Door closing force is not adjustable. Correct size must be selected.
|
Recommended Maximum
Door Width Inches (cm) |
Model # | ||
|---|---|---|---|
| Interior | Exterior |
Non-Hold Open
Hold Open |
|
| 32" (81) | 28" (71) | PA2302BC | PA2312BC |
| 38" (97) | 32" (81) | PA2303BC | PA2313BC |
| 46" (117) | 36" (91) | PA2304BC | PA2314BC |
| 52" (132) | 42" (107) | PA2305BC | PA2315BC |
All dimensions are for reference only and are in inches (mm) unless otherwise noted. Door sizing information is based on installation on standard weight doors, 7'0" (213cm) high x 1-3/4" (44mm) thick; hung on anti-friction hinges and operating under normal conditions. Doors in excess of 7'8" (234cm) high or 1-3/4" (44mm) thick, templated openings beyond 150° or doors subject to wind or draft conditions will generally require the next larger size closer.
* Template position for 100° door opening
parts list —

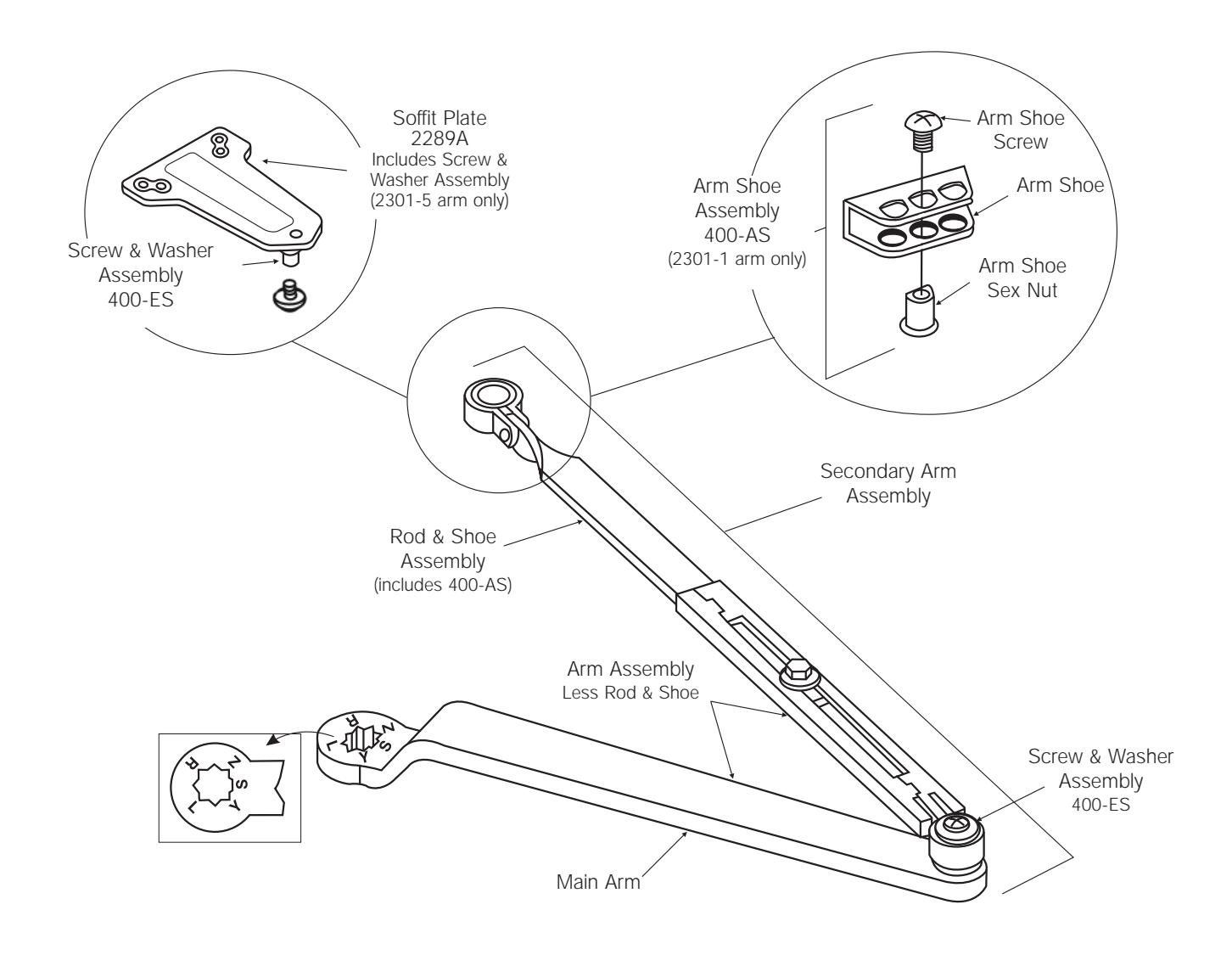

non-hold open arm assemblies
| Closer Series | Complete Arm | Main Arm |
Arm Assembly Less
Rod and Shoe |
Secondary Arm
Assembly |
Rod and Shoe
Assembly |
|---|---|---|---|---|---|
| 2300BC | 2301-1 | 400-1M | 2301-111 | 2301-11 | |
| 2300BC |
2301-1A
(deep reveal) |
2301-1W | 2301-111A | 2301-11A | |
| PA2300BC | 2301-5 | 2301-115 | 2301-15 |
parts list

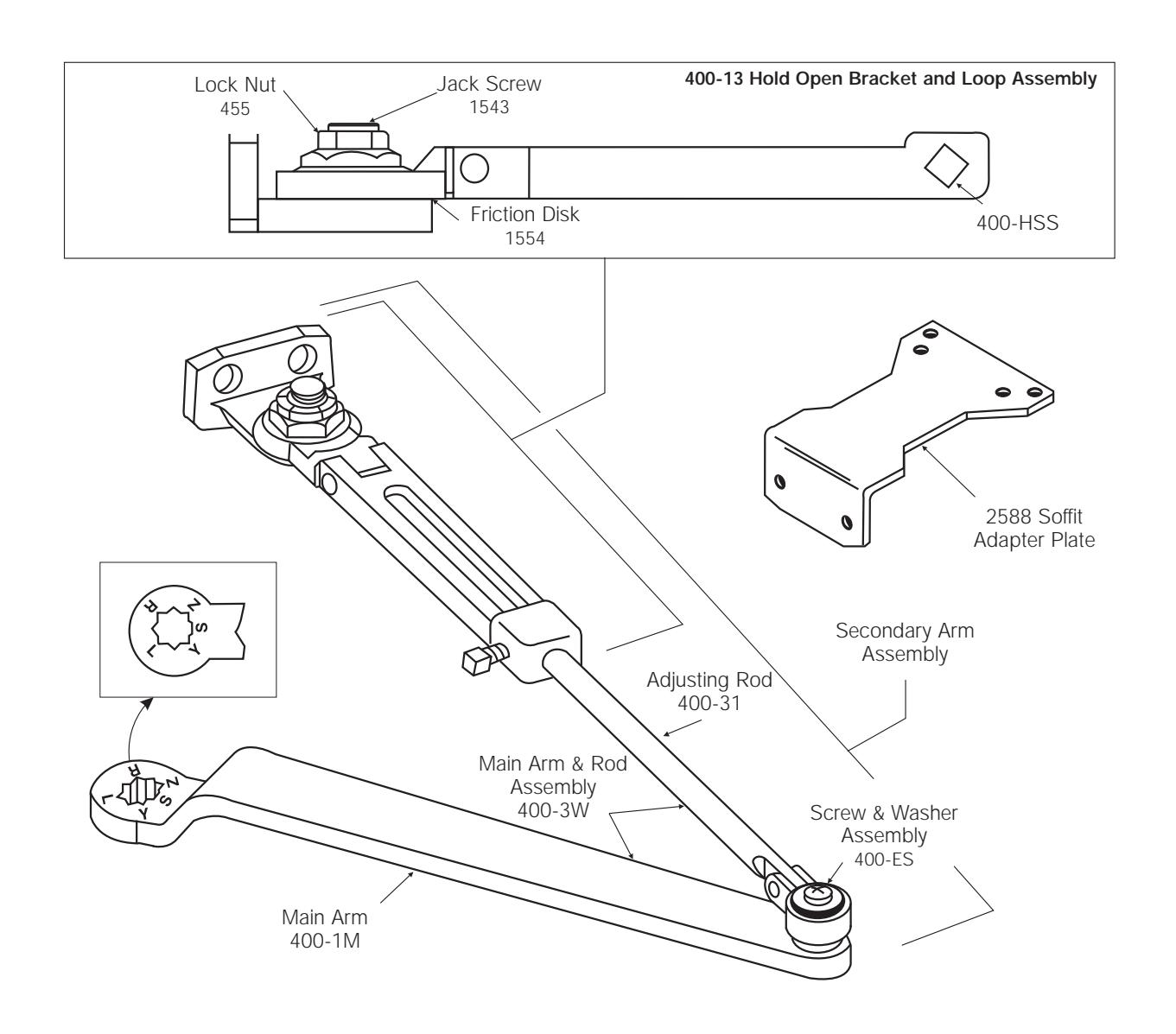

hold open arm assemblies
| Closer Series | Complete Arm | Secondary Arm Assembly |
|---|---|---|
| 2310BC | 2301-3 | 400-113 |
| PA2310BC | 2301-8* | 400-118* |
*2588 soffit adapter plate included.
parts list
| Sleeve Nuts Only |
Through-Bolts &
Grommet Nuts |
Door Thickness |
|---|---|---|
| SN-138 | TBGN138-38 | 1-3/8" |
| SN-134 | TBGN134-38 | 1-3/4" |
| SN-214 | TBGN214-38 | 2-1/4" |
screw packs miscellaneous parts
| Part Number | Description |
|---|---|
| 230XBCLAP | Closer Body Only |
| 1639 | Pinion Cap |
how to order
| PA | 23 | 1 | 2 | BC |
|---|---|---|---|---|
| Prefixes | First and Second Digit | Third Digit | Fourth Digit | |
|
No Prefix - 2300 series
regular and top jamb mount PA - 2300 parallel arm only |
Defines closer series |
O - Non-Hold Open
1 - Hold Open |
Defines closer size
"2" - ANSI size 2 "3" - ANSI size 3 "4" - ANSI size 4 "5" - ANSI size 5 |
Adjustable backcheck
cushioning (Standard) |
online literature and templates
For the latest information on Yale Commercial Lock and Hardware products, visit our website at www.yalecommercial.com.
Click on the "Literature" button to find:
- Catalogs
- Parts manuals
- Templates
- Specifications
- Installation instructions
Yale® customers can click on the ebusiness symbol on the website to register for an ebusiness account to:
- Check the status of orders
- Check availability of Quick-Ship items
- Track your order and confirm delivery
- Receive email notification of template changes And More...
www.yalecommercial.com
Yale Commercial Locks and Hardware
Address: 100 Yale Avenue, Lenoir City, TN 37771-3226 USA Tel: 1-800-438-1951 • Fax: 1-800-338-0965 • www.yalecommercial.com
