ASSA ABLOY ACCENTRA 2170F90, 2160F90, 6170F90, 6160F90, 7170F90, 7160F90 Thermal Pin Assembly_7470-1700

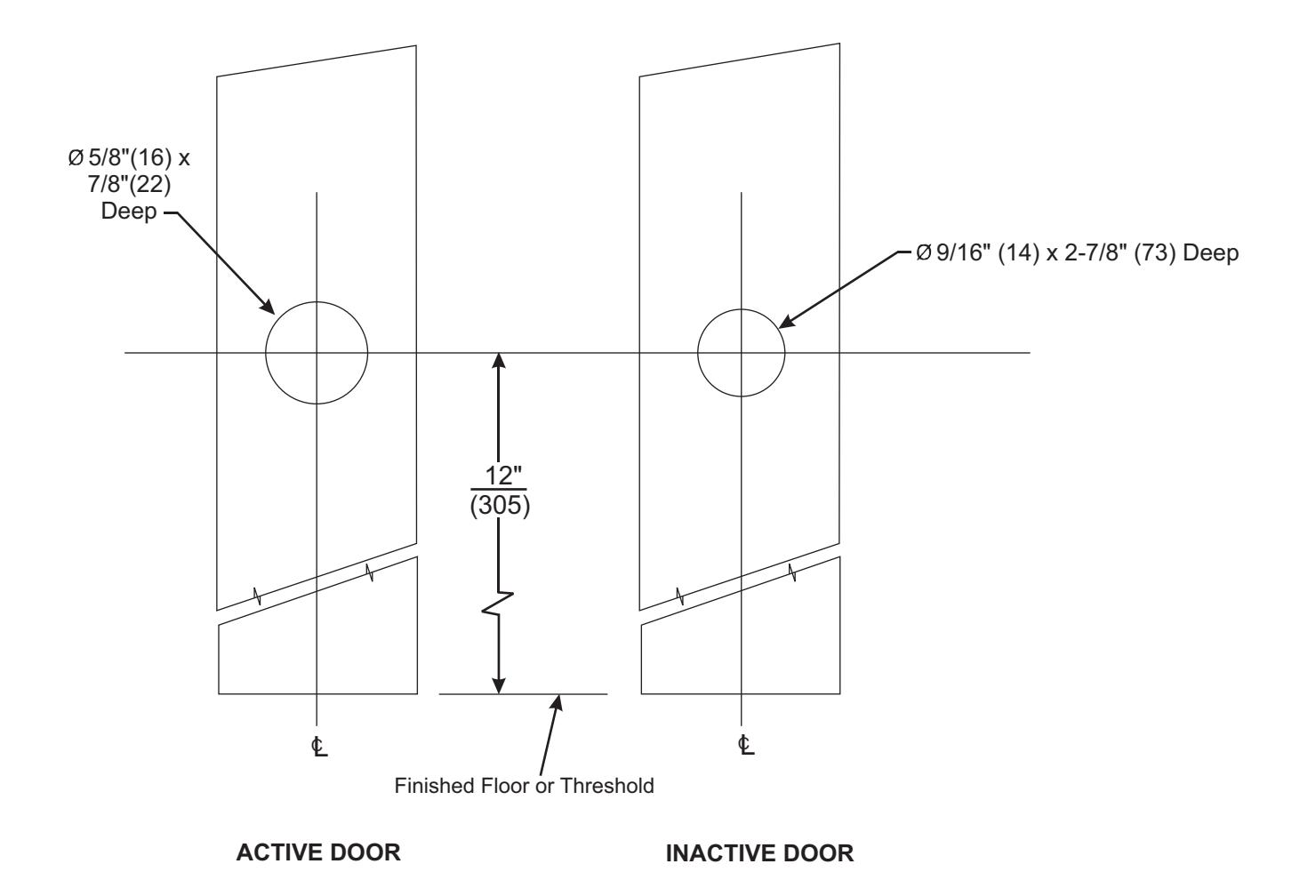

Installation Instructions for Horizontal application between door leafs:

• 1. Do not scale drawing.
• 2. Dimensions are given in inches (mm).
• 3. Hang the doors per the manufactures instructions. The doors should be square and plumb and have the correct gaps between the doors and finished floor.
• 4. Insert the 60-7110-0002-999 in the 9/16" (14) dia. hole in the inactive door.
• 5. Install black hole plug in the 5/8" (16) dia. hole in the active door.

Yale Thermal Pin Assembly ® For Fire Rated Less Bottom Rod Applications Pair of Wood or Metal Doors

www.yalelocks.com 1-800-438-1951

TEMPLATE NUMBER DATE 7470-1700

PAGE 1 of 2

12-16

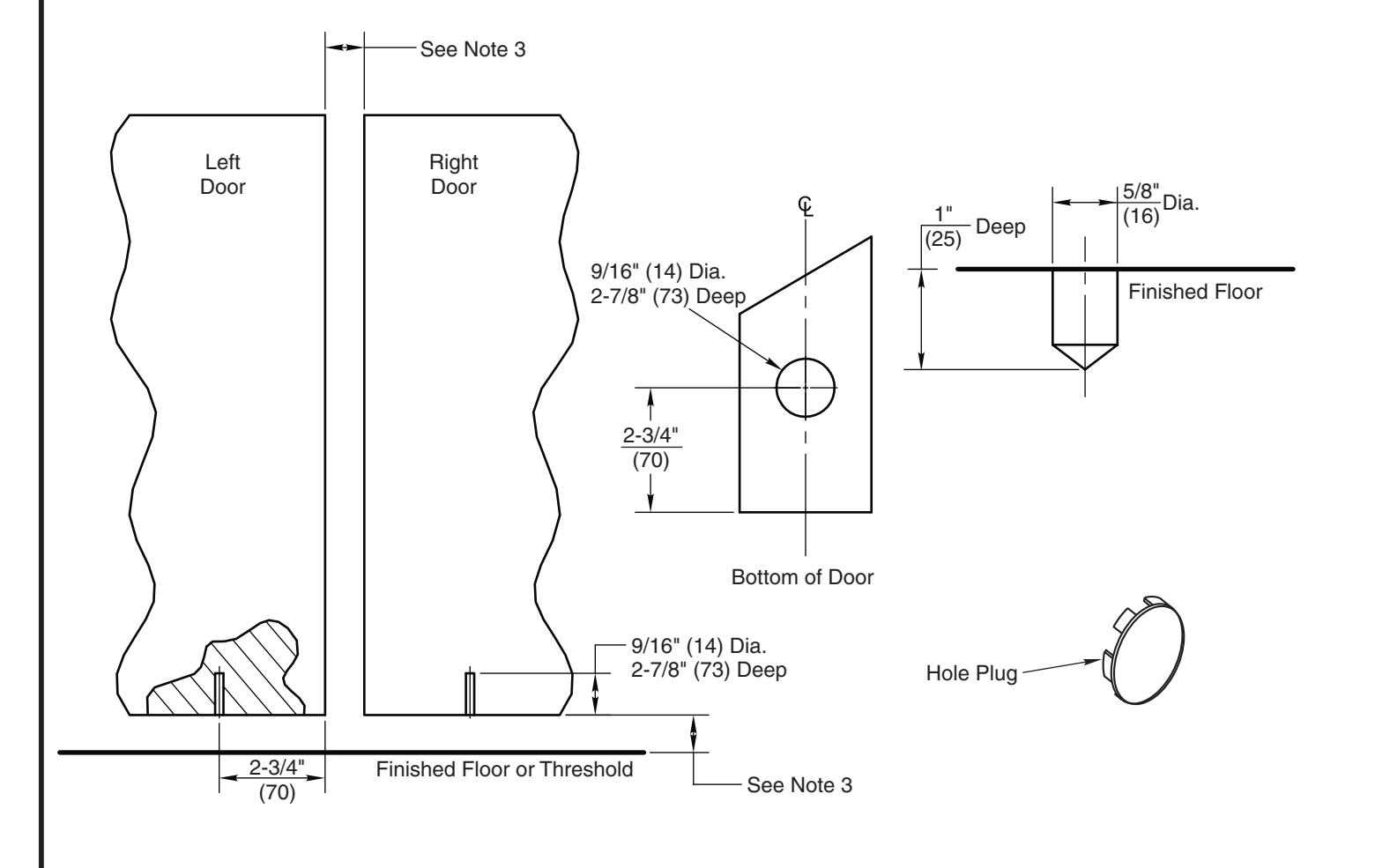

Installation Instructions for Vertical installation between door leaf and finished floor:

Notes:

• 1. Do not scale drawing.
• 2. Dimensions are given in inches (mm).
• 3. Hang the doors per the manufactures instructions. The doors should be square and plumb and have the correct gaps between the doors and finished floor.

Yale Thermal Pin Assembly ® For Fire Rated Less Bottom Rod Applications Pair of Wood or Metal Doors

12-16 TEMPLATE NUMBER DATE 7470-1700 PAGE 2 of 2 www.yalelocks.com 1-800-438-1951

An ASSA ABLOY Group brand
