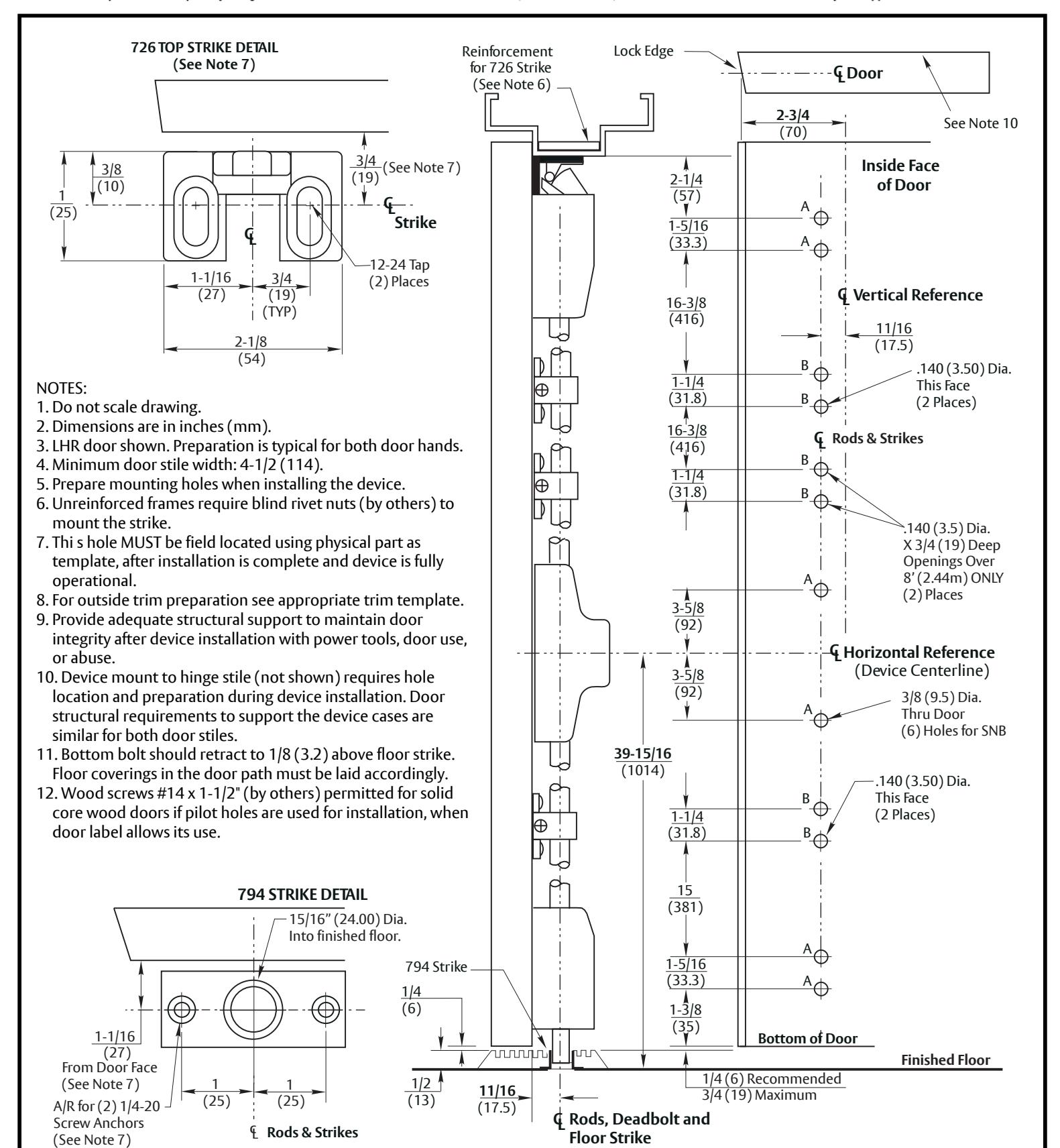

ASSA ABLOY ACCENTRA 2170(F) Wide Stile SVR 794 Floor Strike Wood or Composite Doors and H.M. Frame_7427-1011

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

2170(F)

Surface Vertical Rod Fire/Panic Exit Device

Application For Approved Wood or Composite Doors and H.M. Frame With 1/2" Threshold and Optional 794 Floor Strike

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

7427-1011 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 04/10 12-23
