ASSA ABLOY ACCENTRA 2170(F) Wide Stile SVR 794 Floor Strike Optional SNB Wood or Composite Doors_7427-1012

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

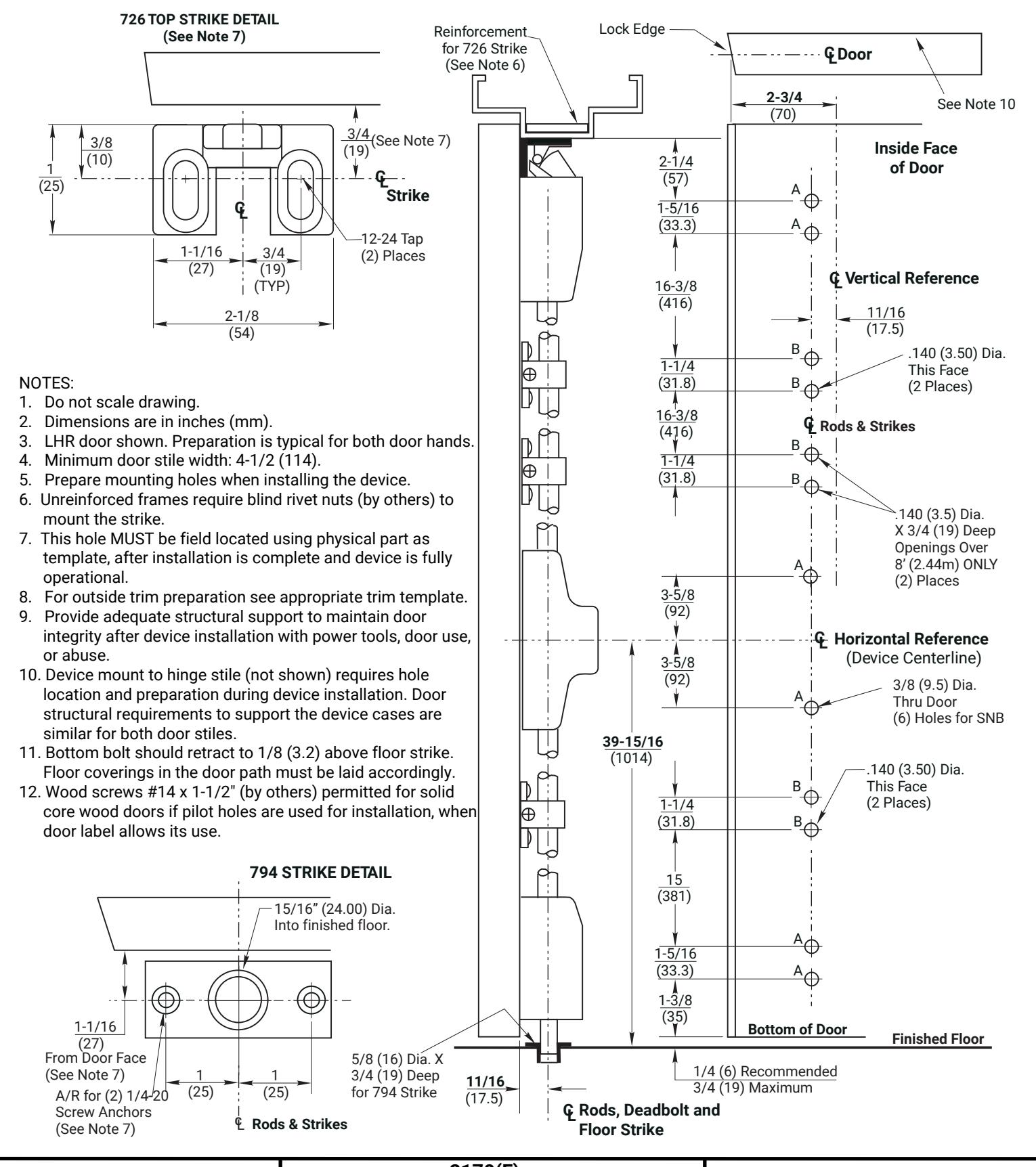

2170(F)

Surface Vertical Rod Fire/Panic Exit Device

Application For Approved Wood or Composite Doors and H.M. Frame

1-855-557-5078 Ext. 2 www.accentra-assaabloy.com

Copyright © 2010, 2024, ASSA ABLOY ACCENTRA™ Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

7427-1012 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 04/10 04/24 SHEET 1 of 1
