ASSA ABLOY ACCENTRA 2170(F) Wide Stile SVR 794 Floor Strike Optional SNB Metal Door and Frame_7427-0012

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

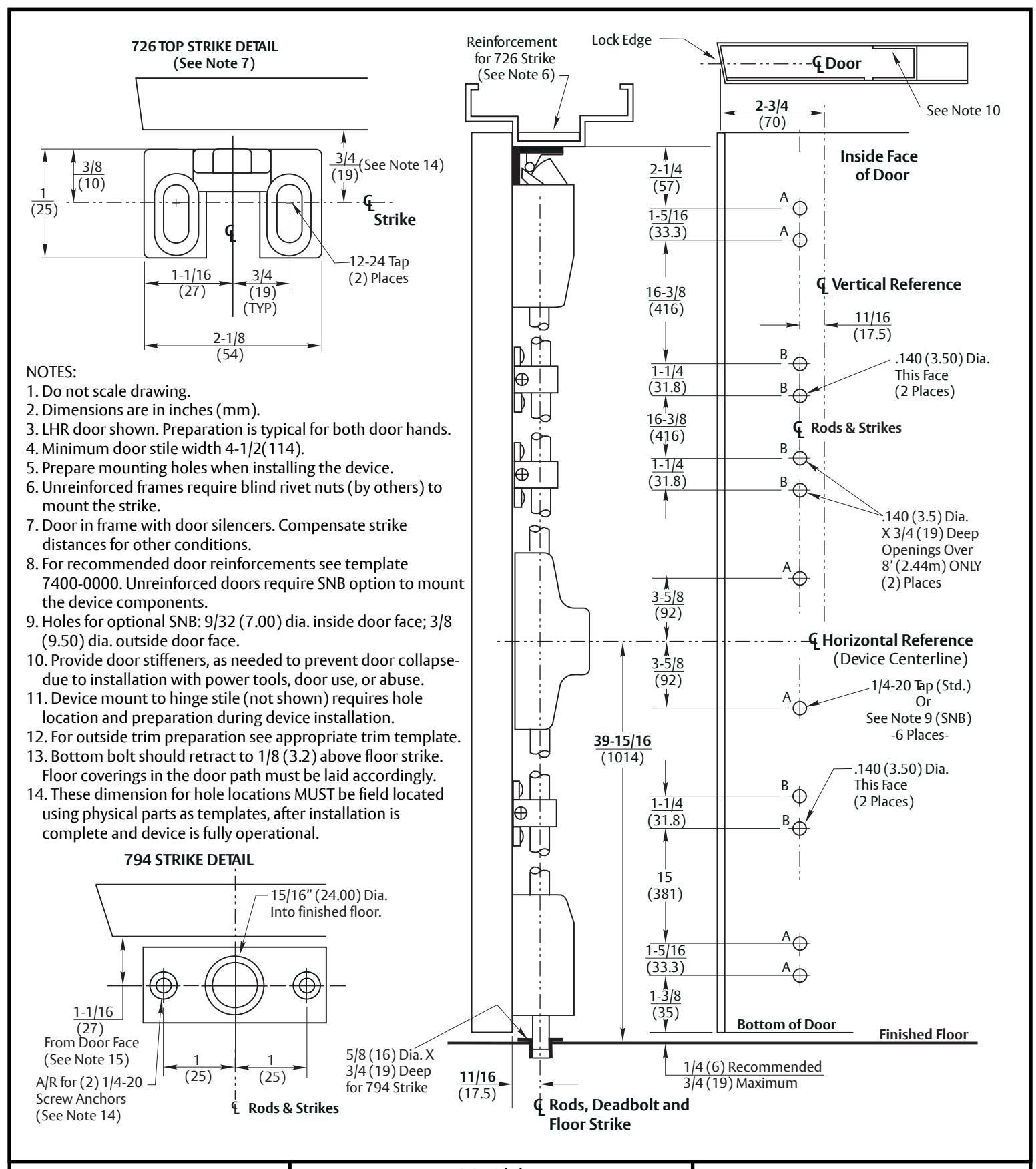

2170(F) Surface Vertical Rod Fire/Panic Exit Device

Application For Approved Metal Door and Frame With Optional 794 Floor Strike and SNB

7427-0012 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 04/10 12-23
