ASSA ABLOY ACCENTRA 2160(F90) LBR Series 2160-LBR-10, 2165-LBR-10, 2160(F90)-LBR-10 Wide Stile CVR_7421-1065

Open the original PDF document

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

2160(F90) LBR Series 2160-LBR-10, 2165-LBR-10, 2160(F90)-LBR-10 Concealed Vertical Rod Exit Devices

Application for Wood Door & Metal Frame Less Bottom Rod Contact us for support at 1-855-557-5078.

ASSA ABLOY

TEMPLATE NUMBER 7421-1065 SHEET 1 of 2 DATE 12-23

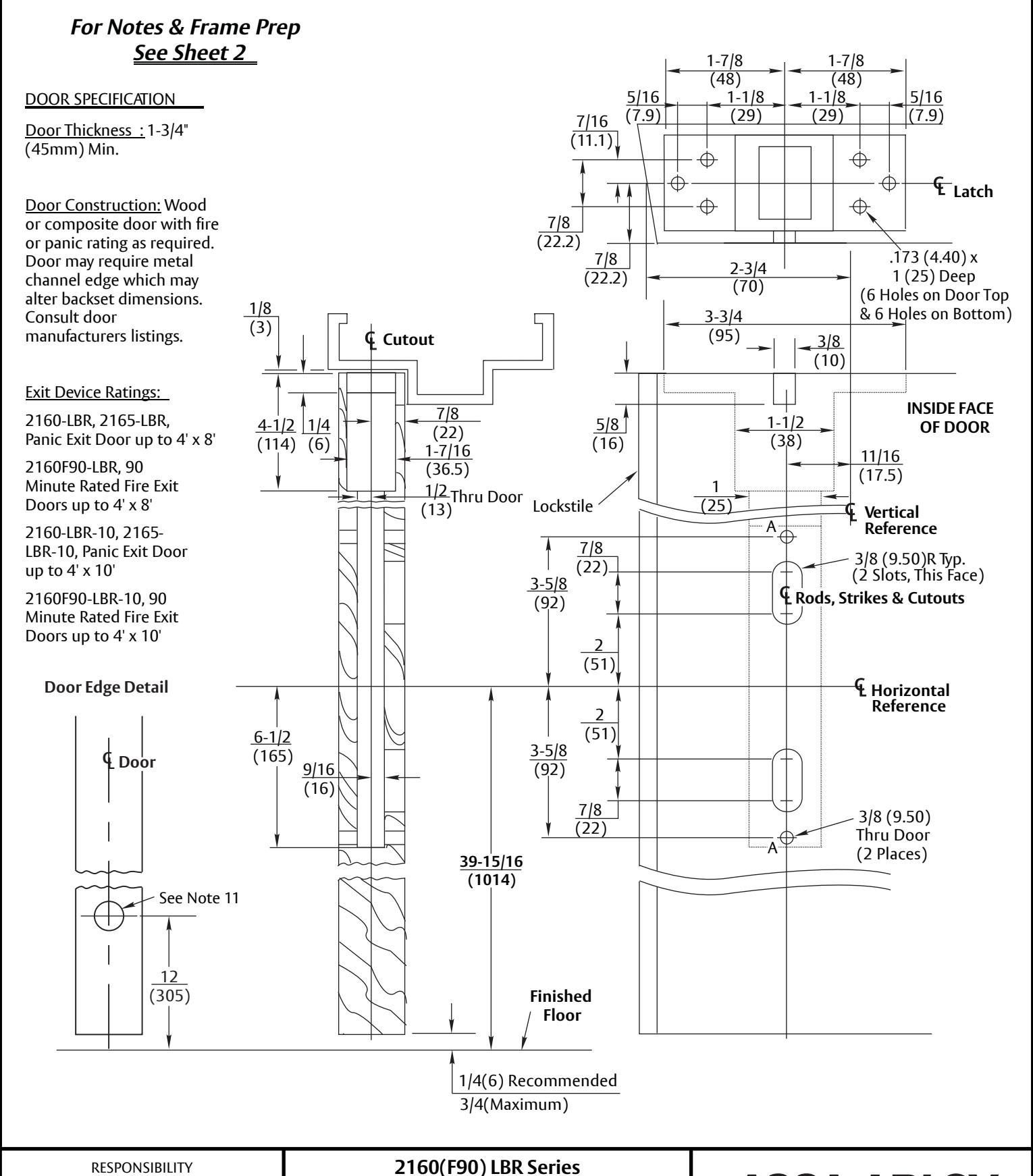

761 Top Strike Preparation (See Note 6)

Notes:

1. Do not scale drawing.
2. Dimensions are in inches (mm).
3. Preparation is typical for both hands.
4. Minimum door stile width: 4-1/2 (114).
5. Prepare mounting holes when installing the device.

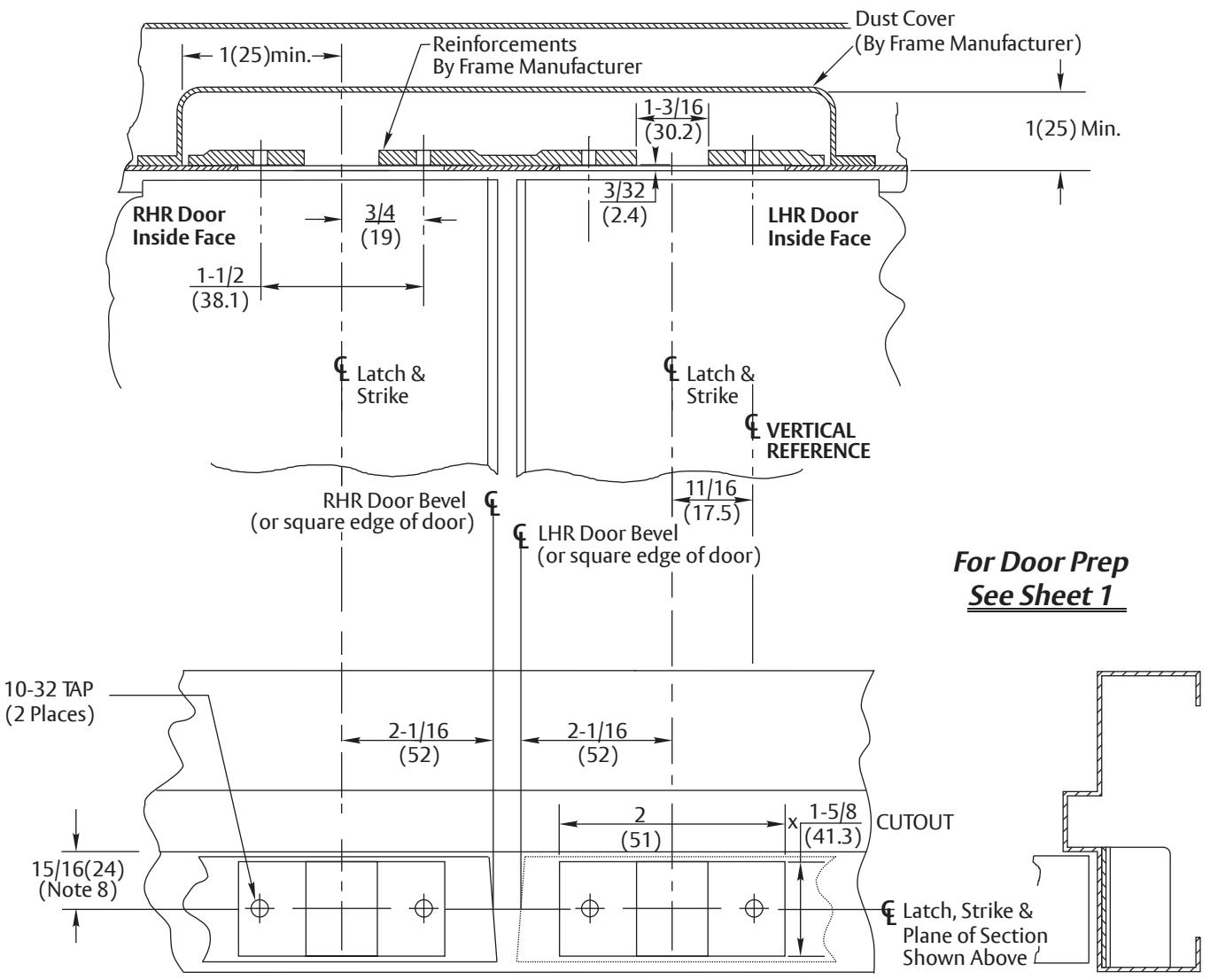

6. Drawing shows elevation (frame bisected on strike center), bottom view looking up and side view.
7. Provide adequate structural support to maintain door integrity after device installation with power tools, door use, or abuse.

Door located in frame for door silencers. If not used, compensate this dimension to seat the door against the stop without rattle.
9. Device mount to hinge stile (not shown) requires hole location and preparation during device installation. Door structural requirements are similar for both stiles.
10. For outside trim preparation see appropriate trim template.
For labeled door pairs only. Reinforce door as needed for heat activated interlocking bolt. See template 7470-1700.

RESPONSIBILITY

2160(F90) LBR Series 2160-LBR-10, 2165-LBR-10, 2160(F90)-LBR-10 Concealed Vertical Rod Exit Devices

Application for Wood Door & Metal Frame Less Bottom Rod Contact us for support at 1-855-557-5078.

ASSA ABLOY

SUPERSEDES 06/17 DO NOT SCALE DRAWING TEMPLATE NUMBER 7421-1065 SHEET 2 of 2 12-23
