ASSA ABLOY ACCENTRA 2160(F90), 2165 Wide Stile CVR 794 Floor Strike Wood Door and Metal Frame with 1_7421-1061

Open the original PDF document

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

2160, 2165, 2160(F90) Series Concealed Vertical Rod Exit Devices

Application for Wood Door & Metal Frame with 1/2" Threshold & Optional 794 Floor Strike

SUPERSEDES	04/10			DO NOT SCALE DRAWING
TEMPLATE NUMBER 7421-1061		SHEET 1 of 2	DATE	12-23

Notes:

1. Do not scale drawing.
2. Dimensions are in inches (mm).
3. Preparation is typical for both hands.
4. Minimum door stile width: 4-1/2 (114).
5. Prepare mounting holes when installing the device.

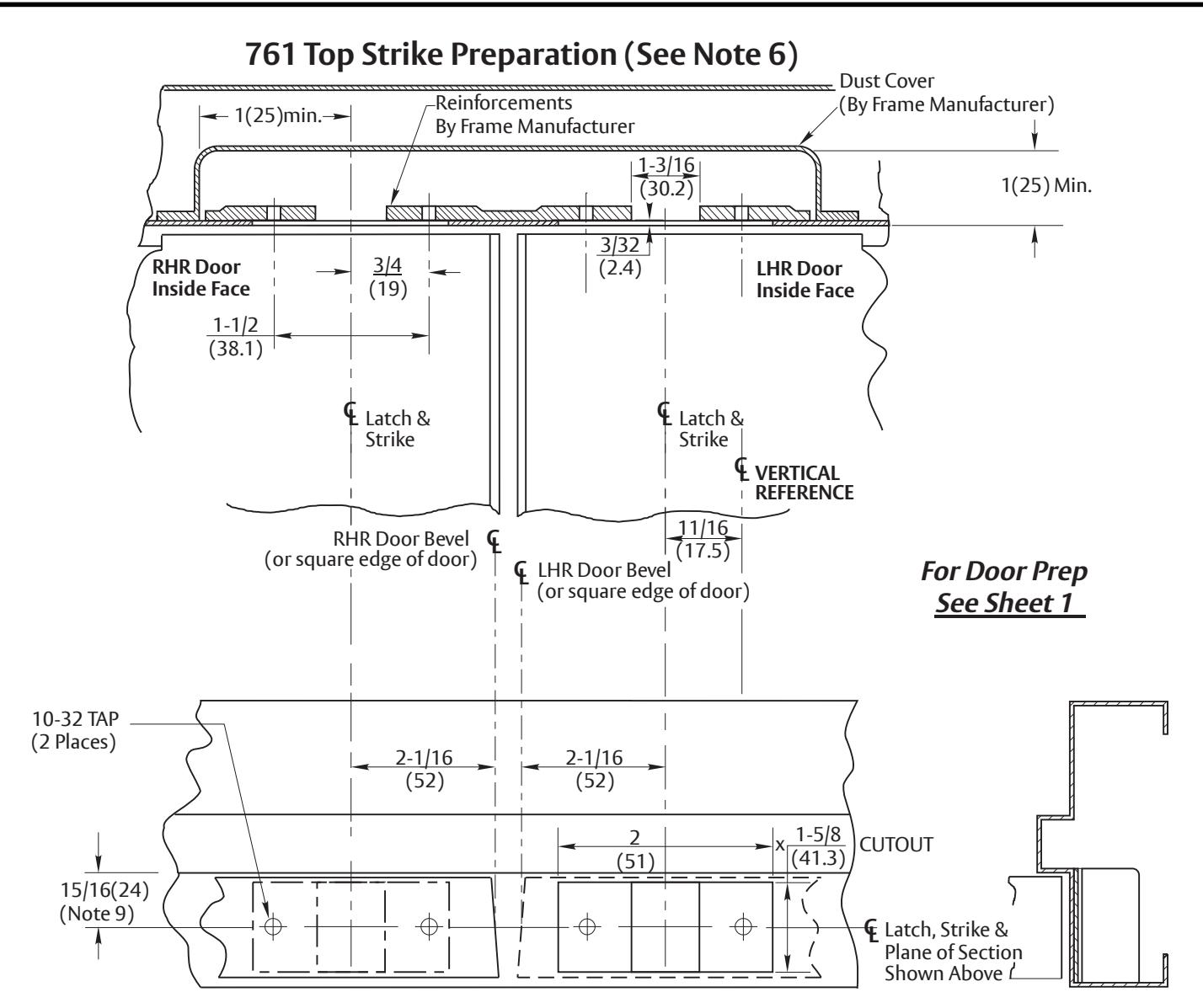

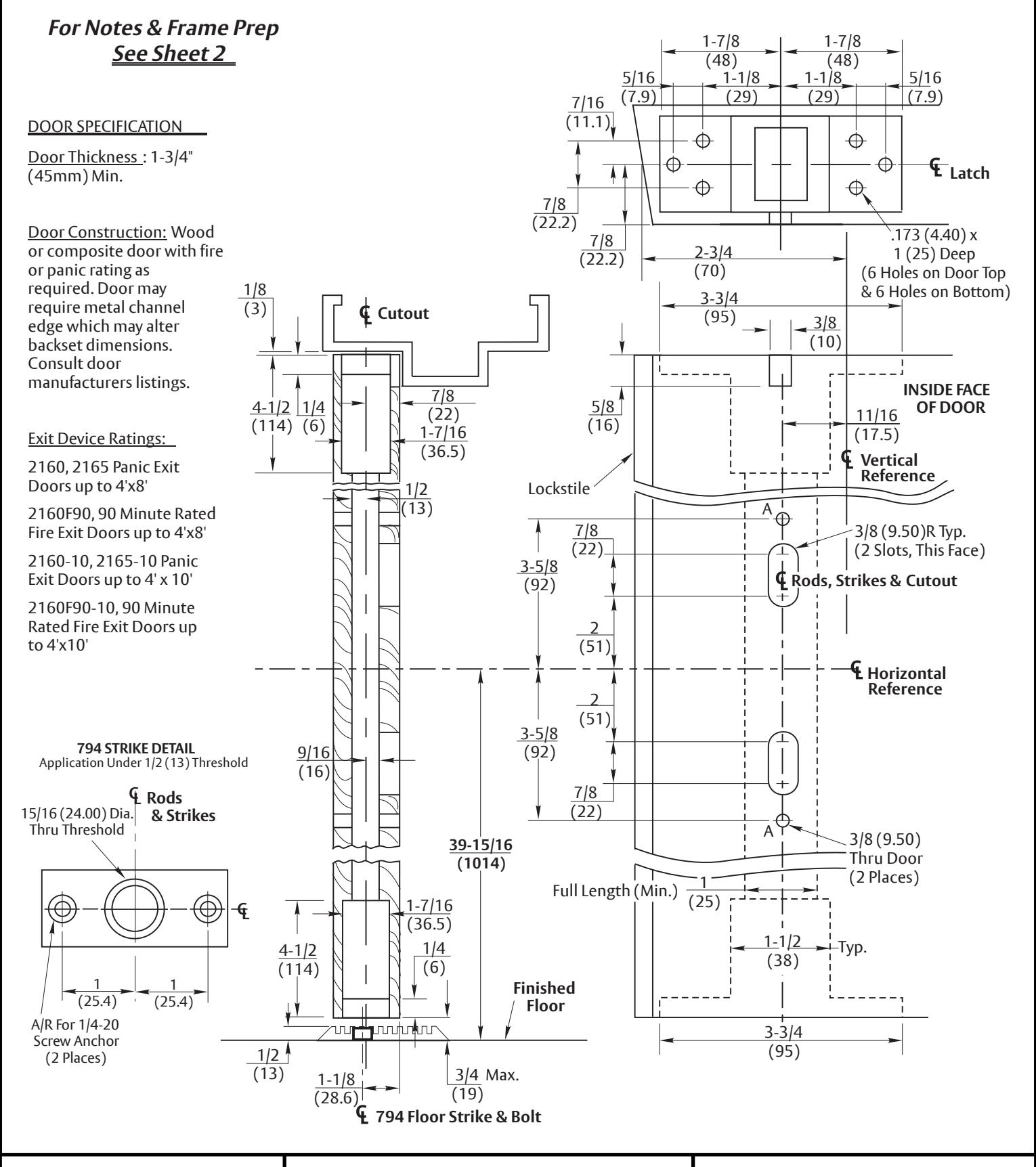

6. Drawing shows elevation (frame bisected on strike center), bottom view looking up and side view.
Provide adequate structural support to maintain door integrity after device installation with power tools, door use, or abuse.

8. This template does not cover devices without bottom rod ("-LBR" Series).
9. Door located in frame for door silencers. If not used, compensate this dimension to seat the door against the stop without rattle.
10. Device mount to hinge stile (not shown) requires hole location and preparation during device installation. Door structural requirements are similar for both stiles.
11. For outside trim preparation see appropriate trim template.
12. Bottom bolt should retract to 5/32 (4.0) above floor strike. Floor coverings in the door path must be laid accordingly.

RESPONSIBILITY

2160, 2165, 2160(F90) Series Concealed Vertical Rod Exit Devices

Application for Wood Door & Metal Frame with 1/2" Threshold & Optional 794 Floor Strike

ASSA ABLOY

SUPERSEDES 04/10 DO NOT SCALE DRAWING TEMPLATE NUMBER 7421-1061 SHEET DATE 12-23
