RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

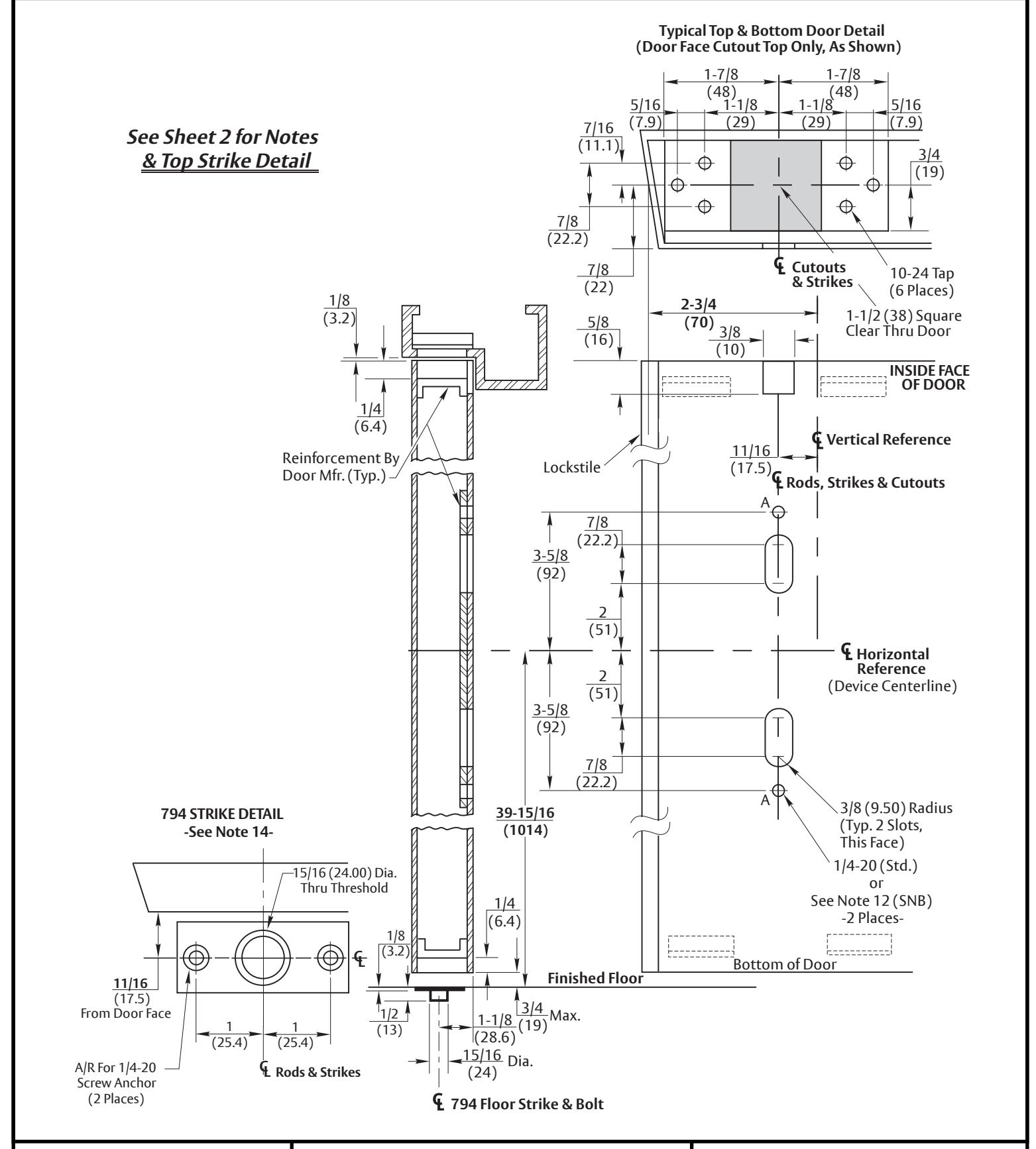

2160, 2165, 2160(F90) Series Concealed Vertical Rod Exit Devices with Optional 794 Floor Strike

Application for Metal Door and Frame Without Threshold

7421-0062 1 of 2 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER SHEET 04/10 12-23

Notes:

  • 1. Do not scale drawing.
  • 2. Dimensions are in inches (mm).
  • 3. Preparation is typical for both hands.
  • 4. Minimum door stile width: 4-1/2 (114).
  • 5. Prepare mounting holes when installing the device.

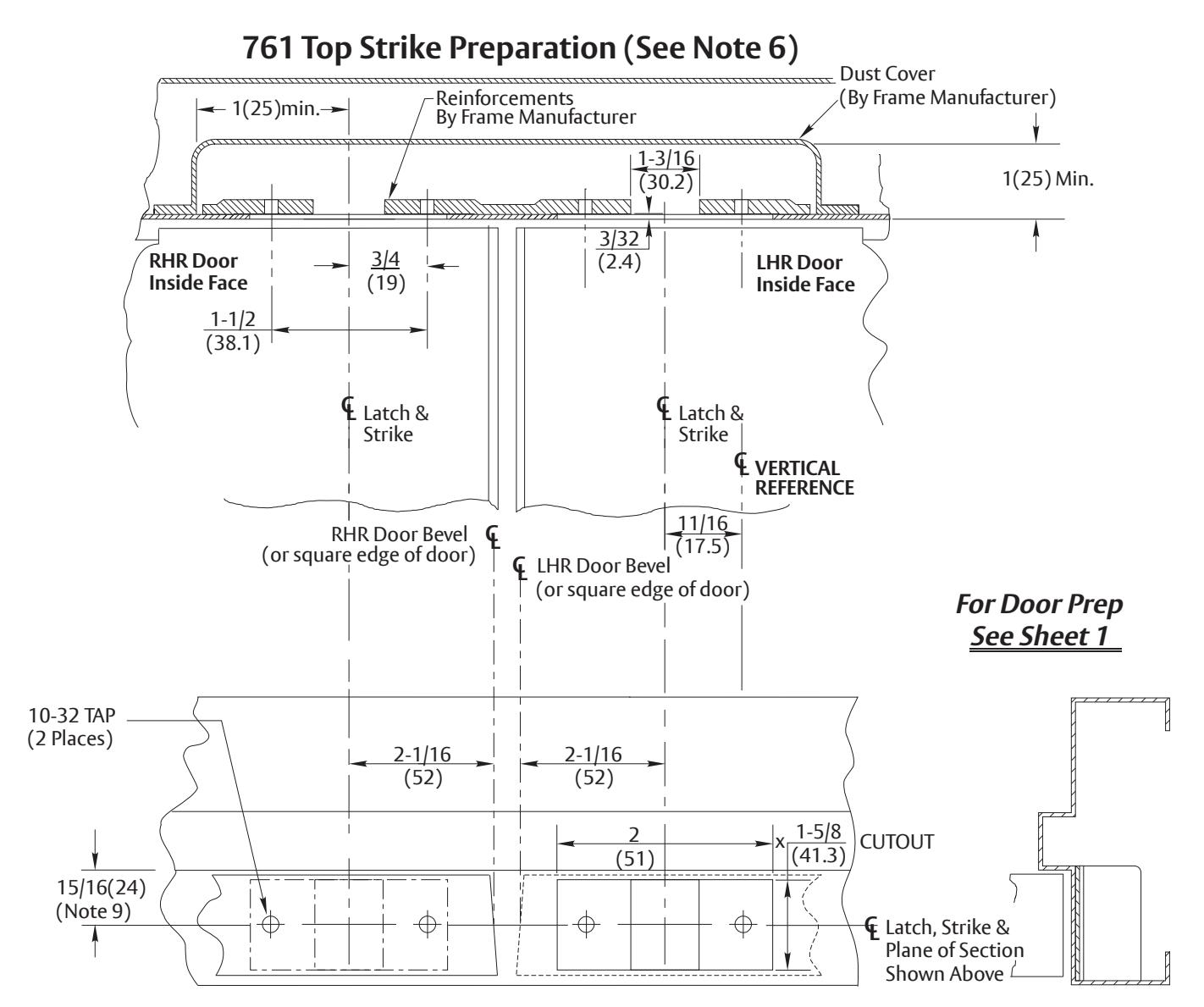

  • 6. Drawing shows elevation (frame bisected on strike center), bottom view looking up and side view.
  • Provide adequate structural support to maintain door integrity after device installation with power tools, door use, or abuse.
  • 8. For recommended door reinforcements see template 7400-0000.

  • 9. Door located in frame for door silencers. If not used, compensate this dimension to seat the door against the stop without rattle.
  • 10. Device mount to hinge stile (not shown) requires hole location and preparation during device installation.
  • 11. For outside trim preparation see appropriate trim template.
  • 12. Holes for optional SNB (Required for unreinforced doors): 9/32 (7.00) dia., inside door face; 3/8 (9.50) dia., outside door face.
  • 13. Maximum thickness 5/32 (4.0) when outside escutcheon trim is used.
  • 14. Bottom bolt should retract to 1/8 (3.2) above floor strike. Floor coverings in the door path must be laid accordingly.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

2160, 2165, 2160(F90) Series Concealed Vertical Rod Exit Devices with Optional 794 Floor Strike

Application for Metal Door and Frame Without Threshold

Contact us for support at 1-855-557-5078.

ASSA ABLOY

SUPERSEDES 04/10 DO NOT SCALE DRAWING TEMPLATE NUMBER SHEET DATE 12-23
