ASSA ABLOY ACCENTRA 2150 Wide Stile SquareBolt 757F Strike Wood or Composite Door and H.M. Frame or Mullion Template-7421-1050

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

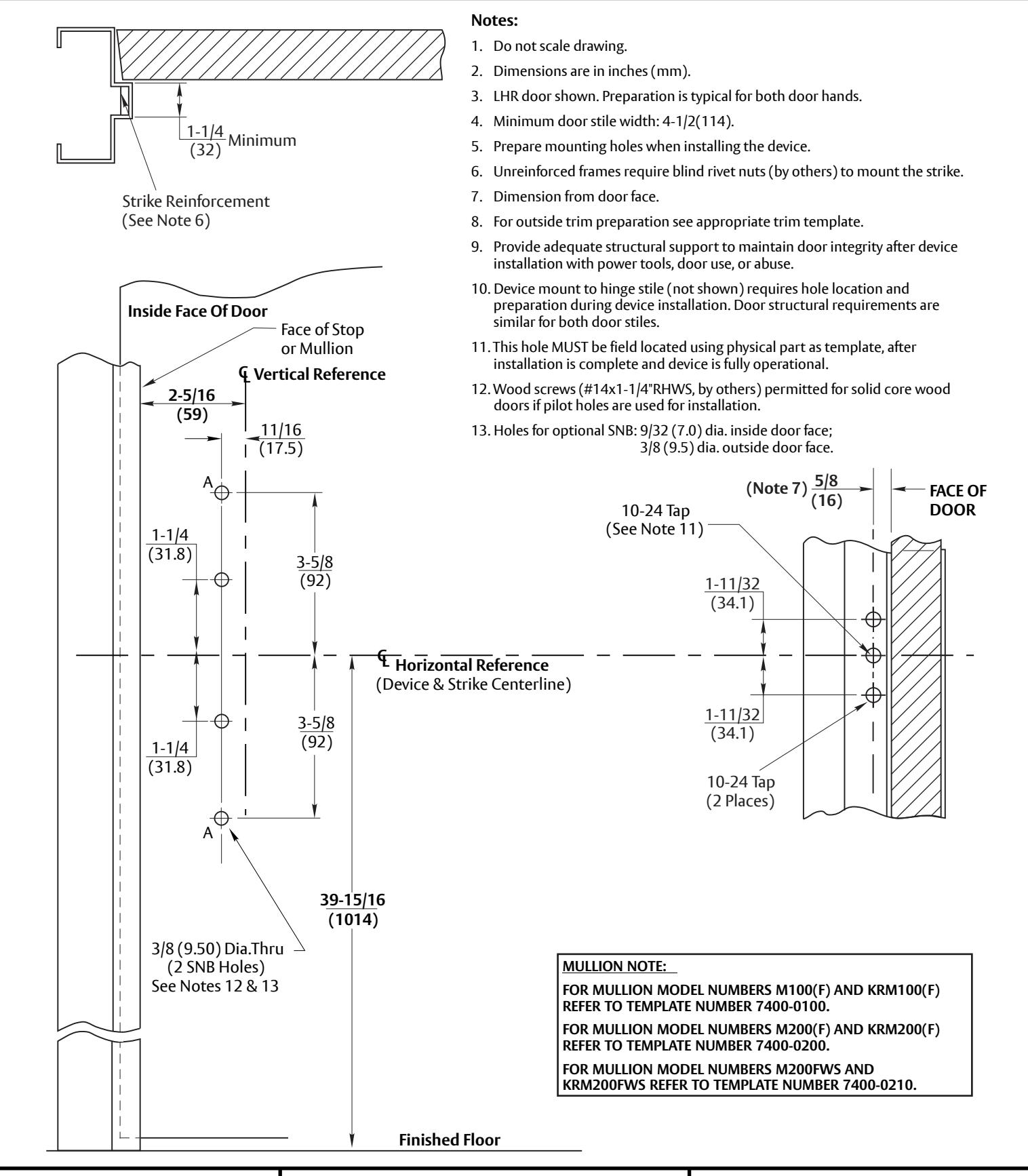

2150 SquareBolt Panic Devices with 757F Strike

Application for Wood or Composite Door and H.M. Frame or Mullion (Not for Fire Labeled Devices)

7421-1050 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 03/08

12-23
