ASSA ABLOY ACCENTRA 2150 Wide Stile SquareBolt 757F Strike Metal Door and Frame or Mullion Template_7421-0050

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

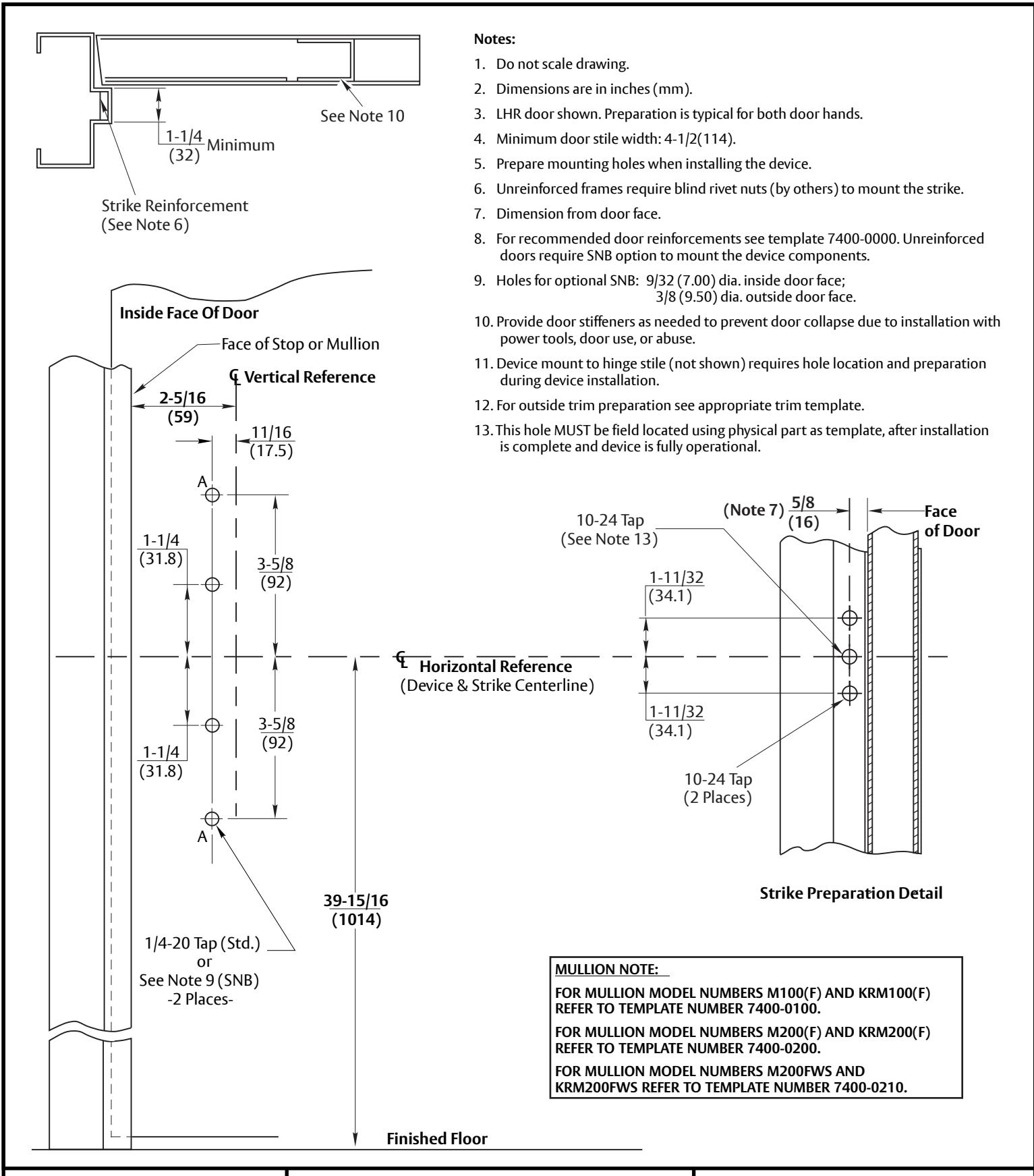

2150 SquareBolt Panic Devices with 757F Strike

Application for Metal Door and Frame or Mullion (Not for Fire Labeled Devices)

SUPERSEDES DO NOT SCALE DRAWING 03/08

7421-0050 DATE TEMPLATE NUMBER

12-23
