ASSA ABLOY ACCENTRA 214F Trim for 1800(F), 1810(F), 2100(F), 2150(F) Wide Stile Rim, SquareBolt_7400-0214

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

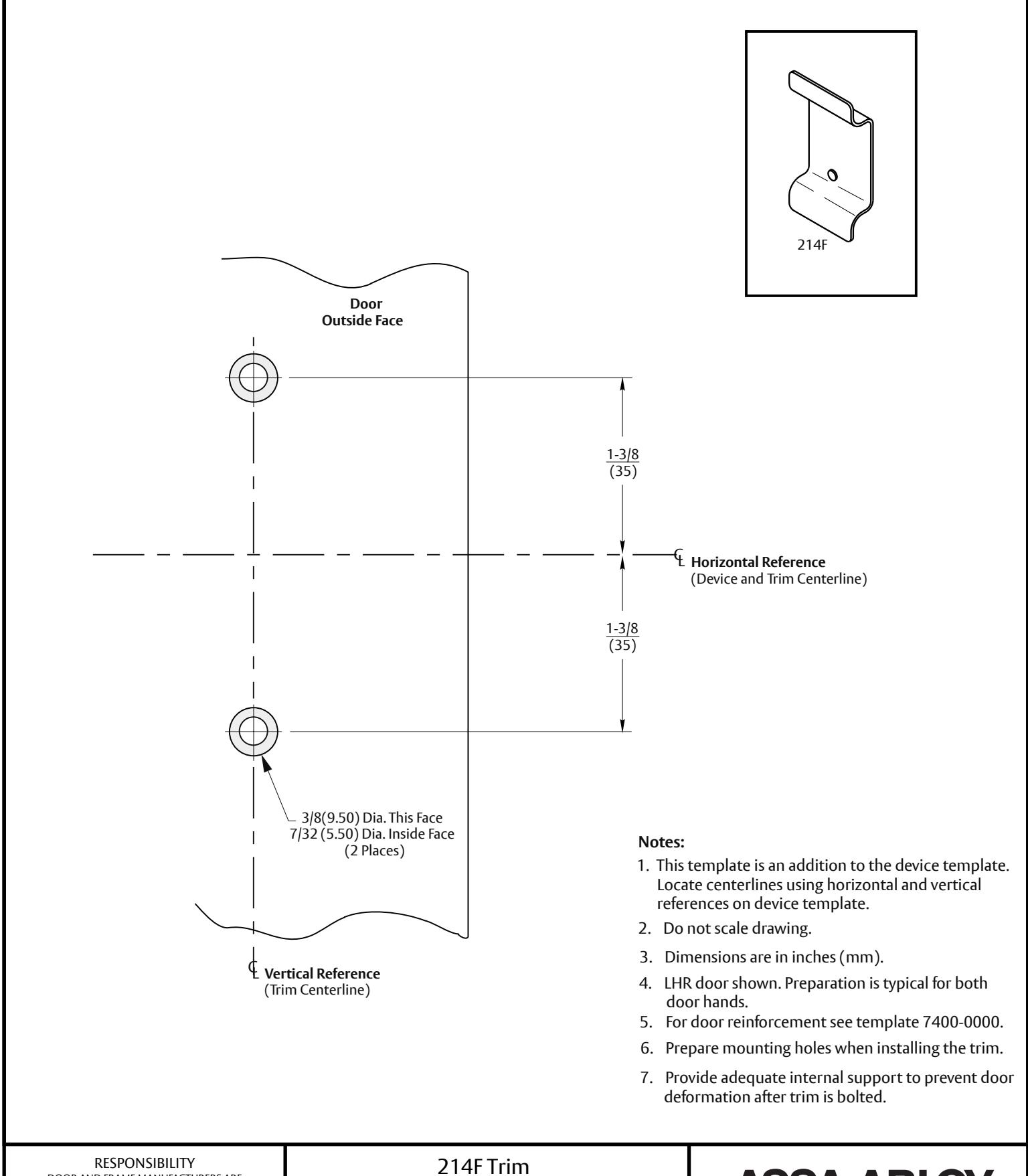

214F Trim Application for Metal Doors with 2100(F) Series Rim and Vertical Rod Exit Devices

7400-0214 08/99

SUPERSEDES DO NOT SCALE DRAWING

7400-0214 DATE TEMPLATE NUMBER

01-24

Experience a safer and more open world
