ASSA ABLOY ACCENTRA 213F and 217F Trim for 1800(F) and 2100(F) Series Wide Stile Rim, SquareBolt_7400-1213

Open the original PDF document

View PDF

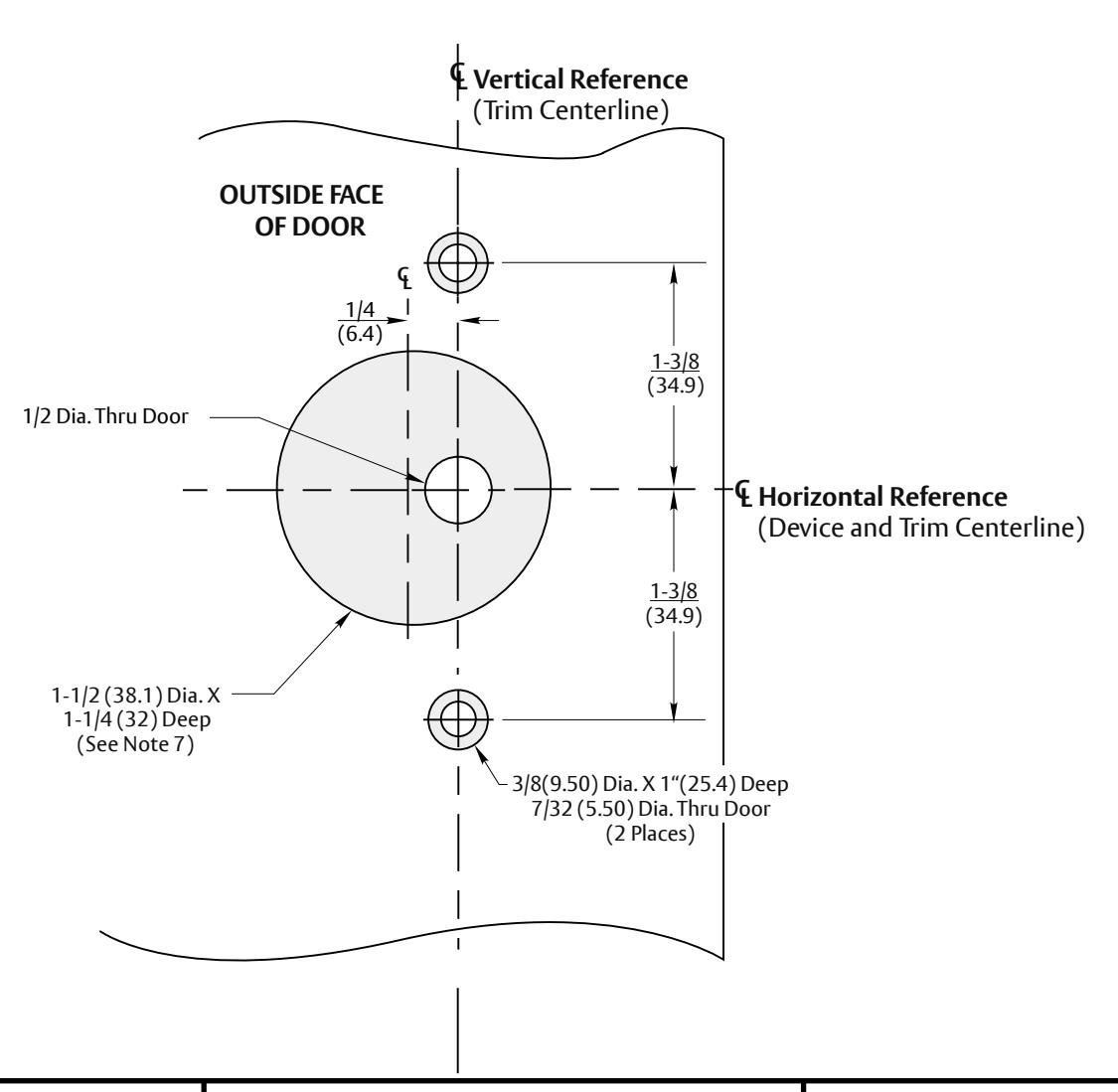

NOTES:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. Prepare mounting holes when installing trim.
  • 6. Provide adequate internal support to maintain door integrity during operation.
  • 7. At specifier's option, stock door with ANSI A115.W2 cutout may be substituted. These doors require a filler plate for the door edge cutout (by others).

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

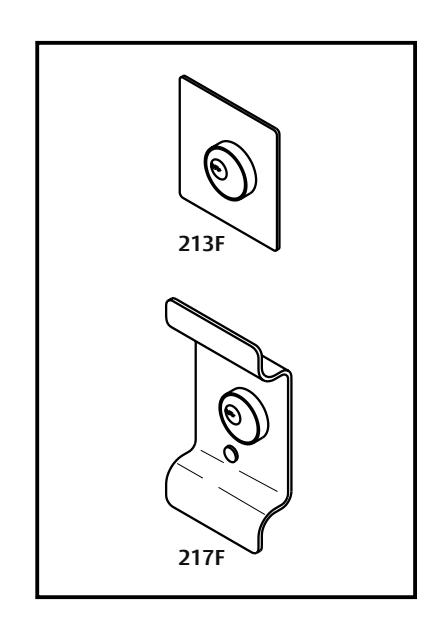

213F and 217F Trim

With 2100(F) Series Rim and Vertical Rod Exit Devices Wood or Composite Door

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

7400-1213 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 8/99 12-23
