ASSA ABLOY ACCENTRA 213F and 217F Trim for 1800(F), 2100(F), 2150(F) Wide Stile Rim, SquareBolt_7400-0213

Notes:

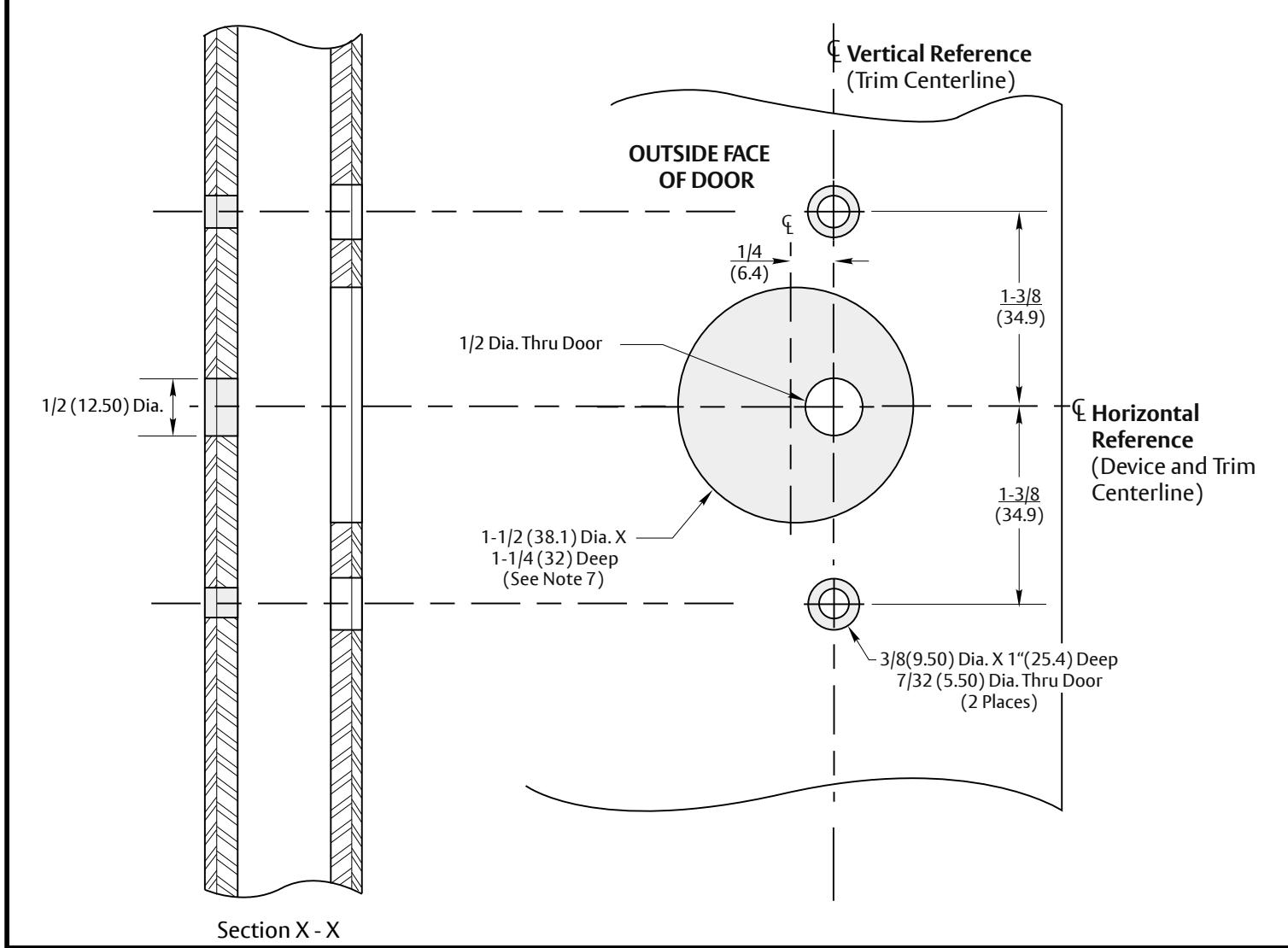

• 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
• 2. Do not scale drawing.
• 3. Dimensions are in inches (mm).
• 4. LHR door shown. Preparation is typical for both door hands.
• 5. For door reinforcement see template 7400-0000.
• 6. Prepare mounting holes when installing the trim.
• 7. Provide adequate internal support to prevent door deformation after trim is bolted to the door.
• 8. At specifiers option ANSI A115.2 cutout thru door may be substituted. If type 161 stock doors are used a filler plate (by others) is required for the door edge.
• 9. Dimensions given about a centerline are symmetrical.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

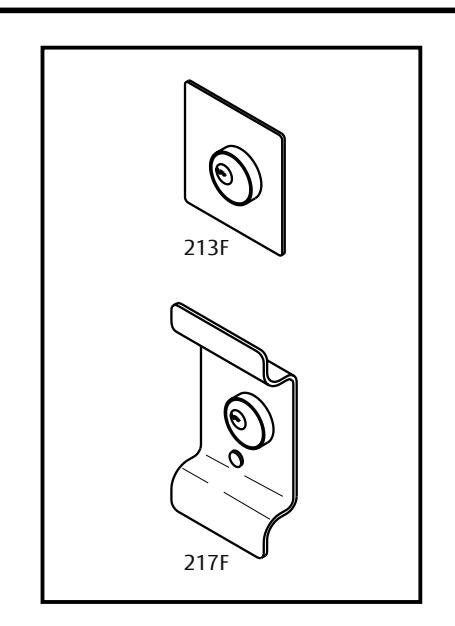

213F and 217F Trim

Application for Metal Door with 2100(F) Series Rim and Vertical Rod Exit Devices

SUPERSEDES DO NOT SCALE DRAWING 7400-0213 08/99

7400-0213 DATE TEMPLATE NUMBER
