ASSA ABLOY ACCENTRA 2120(F) Wide Stile CVR 794 Strike Metal Door and Frame without Threshold_7421-0022
Open the original PDF document
View PDF
RESPONSIBILITY
DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

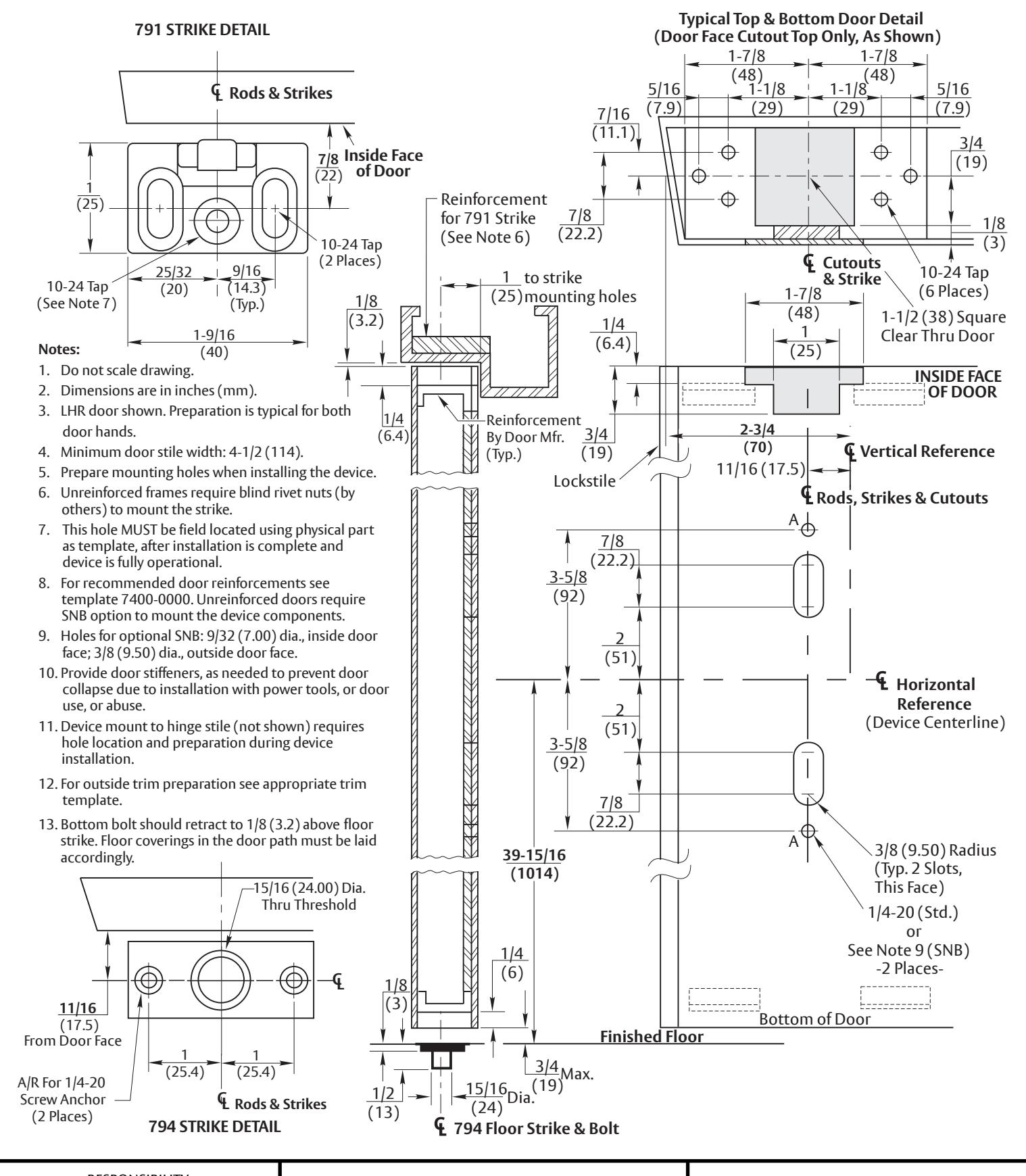

2120, 2125 & 2120F with Optional 794 Strike
Application for Metal Door and Frame Without Threshold
Contact us for support at 1-855-557-5078.
ASSA ABLOY
SUPERSEDES 04/10 DO NOT SCALE DRAWING TEMPLATE NUMBER 7421-0022 DATE 12-23
