ASSA ABLOY ACCENTRA 2120(F) Wide Stile CVR 794 Floor Strike Metal Door and Frame with 1, 2-Inch_7421-0021
Open the original PDF document
View PDF
RESPONSIBILITY
DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERTY REINFORCED DOORS AND FRAMES REGARDLESS OF TYPE MATERIAL, OR METHOD OF CONSTRUCTION.

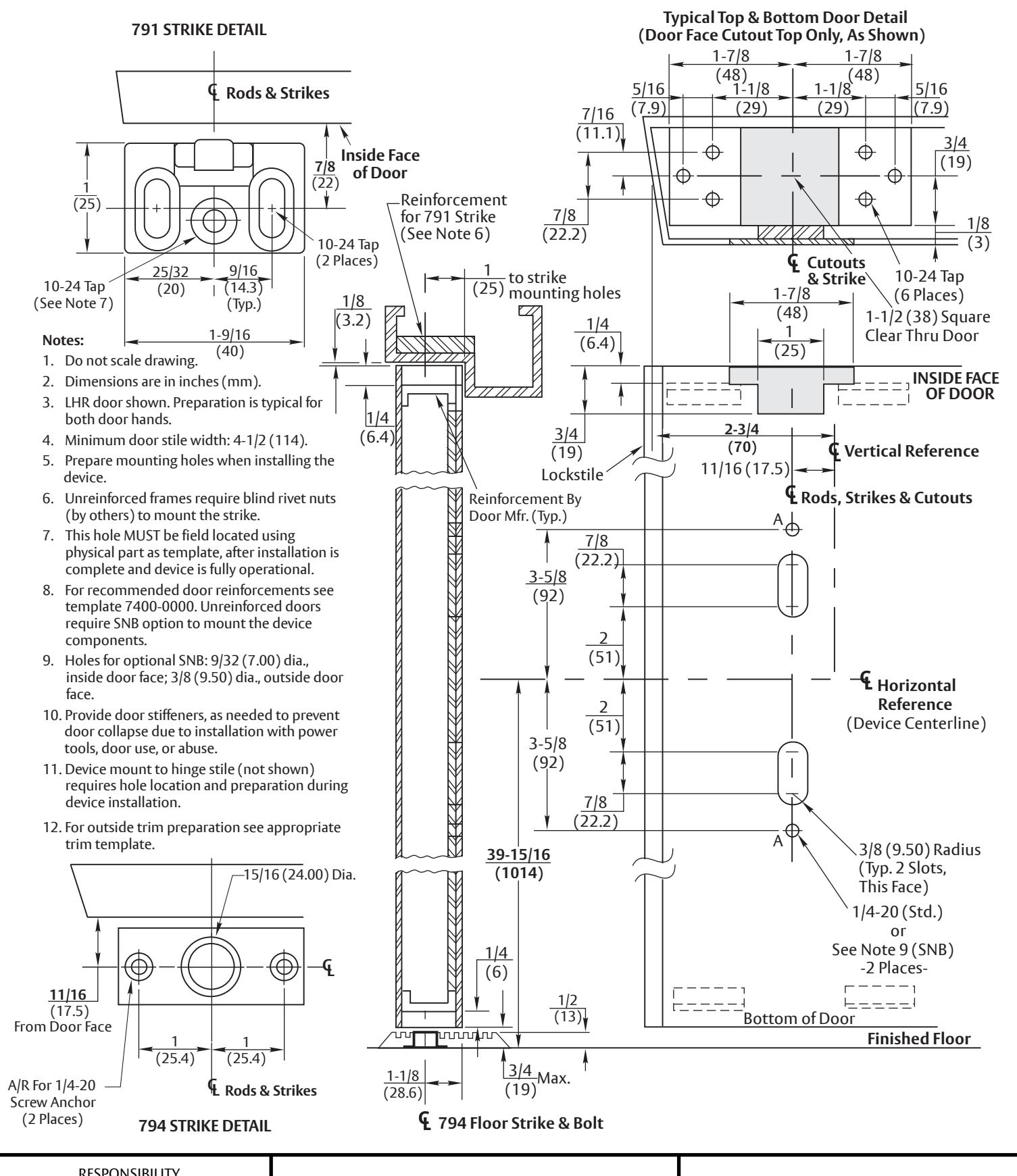

2120, 2125 & 2120F
Application for Metal Door and Frame With 1/2" Threshold and 794 Optional Floor Strike
Contact us for support at 1-855-557-5078.
ASSA ABLOY
SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 7421-0021 12 - 23
