ASSA ABLOY ACCENTRA 2100 Series 2170(F90) Wide Stile SVR LBR Wood or Composite Doors and H.M. Frame_7427-1075

NOTES:

• 1. Do not scale drawing.
• 2. Dimensions are in inches (mm).

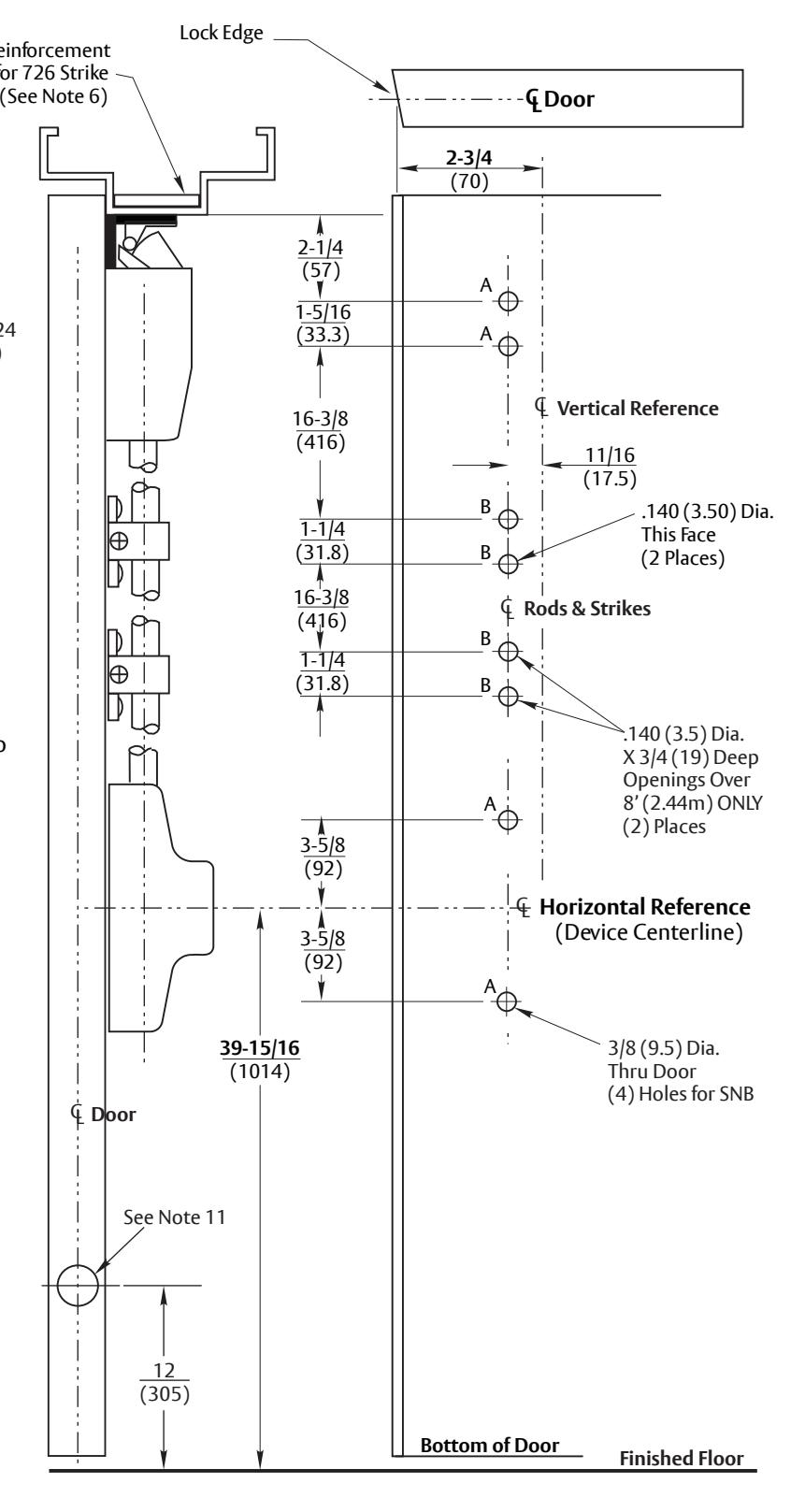

• 3. LHR door shown. Preparation is typical for both door hands.
• 4. Minimum door stile width: 4-1/2 (114).
• 5. Prepare mounting holes when installing the device.
• 6. Unreinforced frames require blind rivet nuts (by others) to mount the strike.

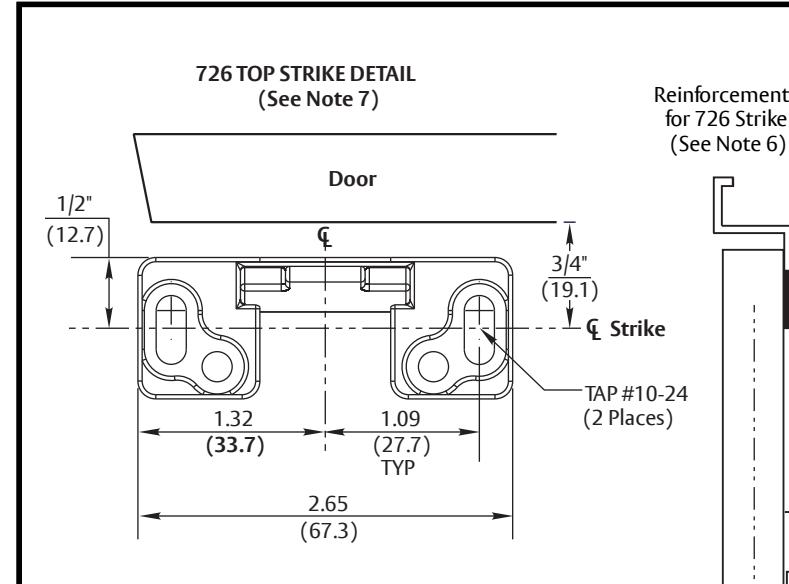

• 7. Door in frame with door silencers. Compensate strike distances for other conditions.
• 8. For outside trim preparation see appropriate trim template.
• 9. Provide adequate structural support to maintain door integrity after device installation with power tools, door use, or abuse.
• 10. Device mount to hinge stile (not shown) requires hole location and preparation during device installation. Door structural requirements to support the device cases are similar for both door stiles.
• 11. Door structure as required for heat activated interlocking bolt. See Template 7470-1700.
• 12. Wood screws #14 x 1-1/2" (by others) permitted for solid core wood doors if pilot holes are used for installation, when door label allows its use.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

2170(F90) LBR Surface Vertical Rod Fire/Panic Exit Device

Application For Approved Wood or Composite Doors and H.M. Frame and Less Bottom Rod

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

7427-1075 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 06/17 01-24
