ASSA ABLOY ACCENTRA 2100 Series 2170(F90) Wide Stile SVR LBR Metal Door and Frame and Less Bottom_7427-0075

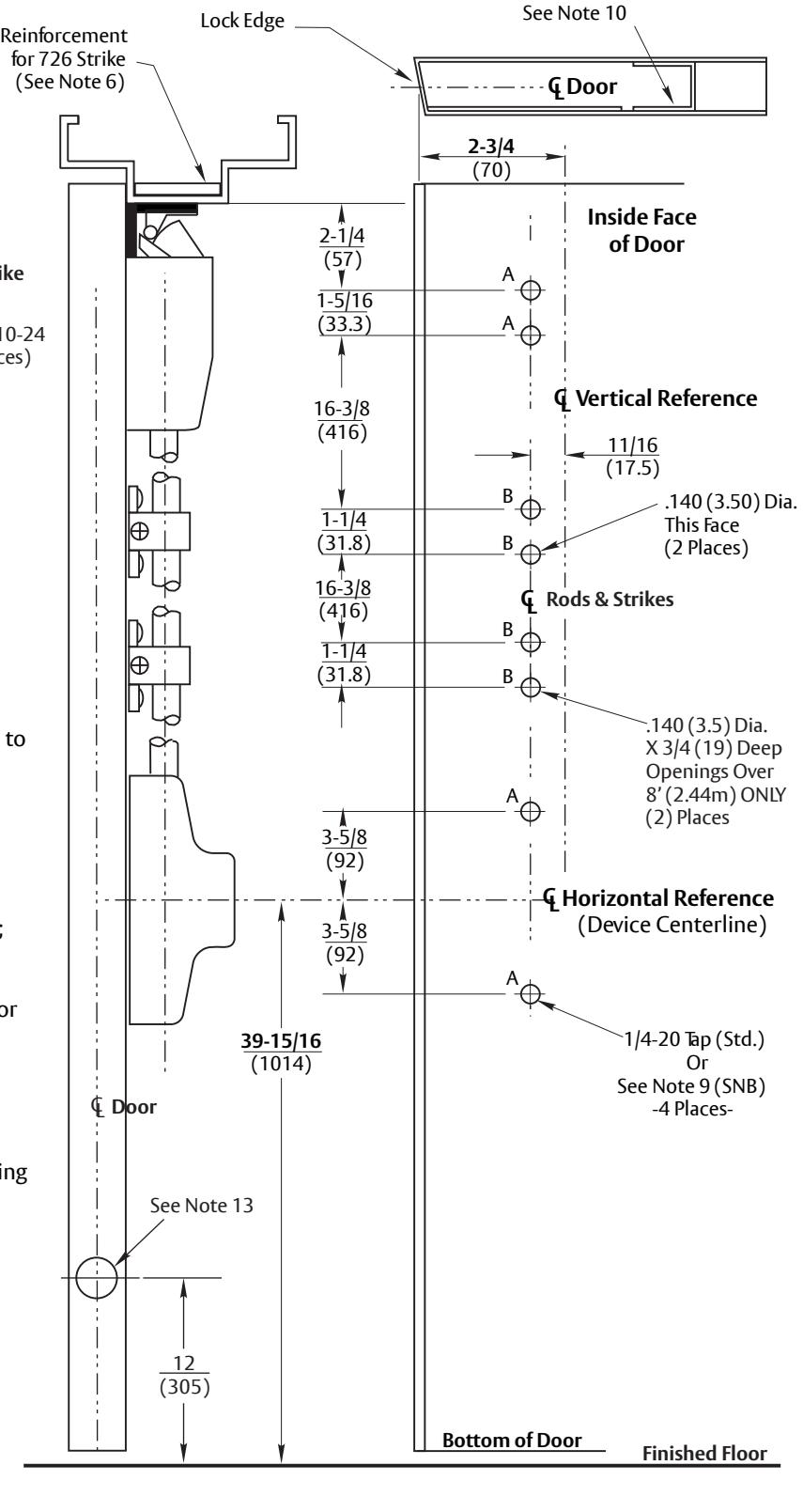

NOTES:

• 1. Do not scale drawing.
• 2. Dimensions are in inches (mm).
• 3. LHR door shown. Preparation is typical for both door hands.
• 4. Minimum door stile width 4-1/2(114).
• 5. Prepare mounting holes when installing the device.

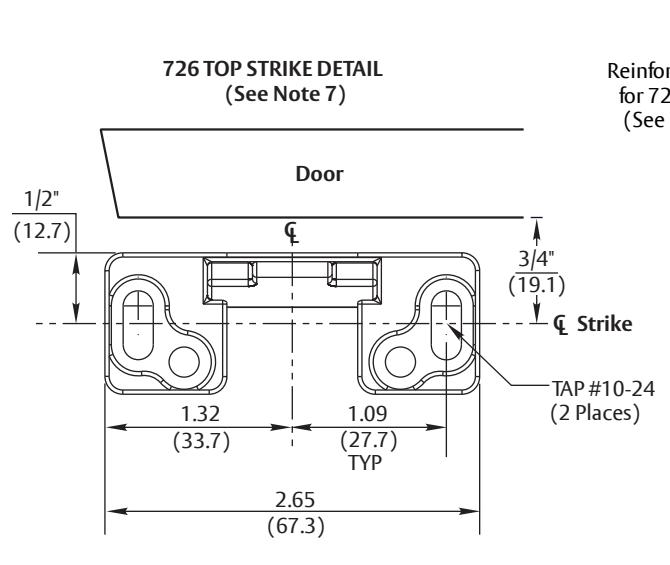

• 6. Unreinforced frames require blind rivet nuts (by others) to mount the strike.
• 7. Door in frame with door silencers. Compensate strike distances for other conditions.
• 8. For recommended door reinforcements see template 7400-0000. Unreinforced doors require SNB option to mount the device components.
• 9. Holes for optional SNB: 9/32 (7.00) dia. inside door face; 3/8 (9.50) dia. outside door face.
• 10. Provide door stiffeners, as needed to prevent door collapse due to installation with power tools, door use, or abuse.
• 11. Device mount to hinge stile (not shown) requires hole location and preparation during device installation.
• 12. For outside trim preparation see appropriate trim template.
• 13. Door structure as required for heat activated interlocking bolt. See Template 7470-1700.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

2170(F90) LBR Surface Vertical Rod Fire/Panic Exit Device

Application For Approved Metal Door and Frame and Less Bottom Rod

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.
