2160, 2165, 2160(F90) (LBR) Series Concealed Vertical Rod Exit Devices

Standard Application for Metal Door and Frame

7421-0060 1 of 2 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER SHEET 06/17 12-23

Notes:

• Do not scale drawing. 1.
• Dimensions are in inches (mm). 2.
• Preparation is typical for both hands. 3.
• Minimum door stile width: 4-1/2 (114). 4.
• Prepare mounting holes when installing the device. 5.

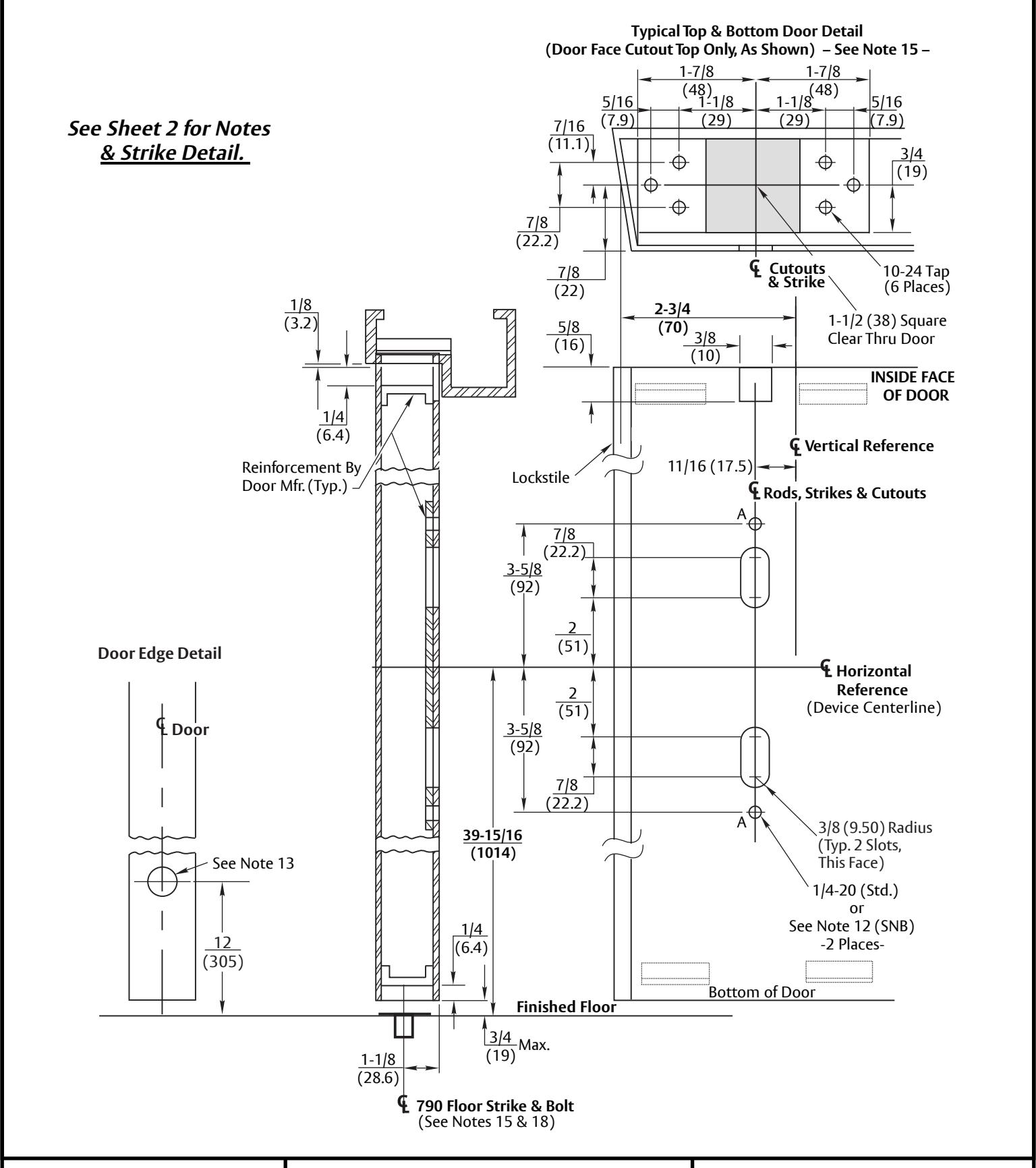

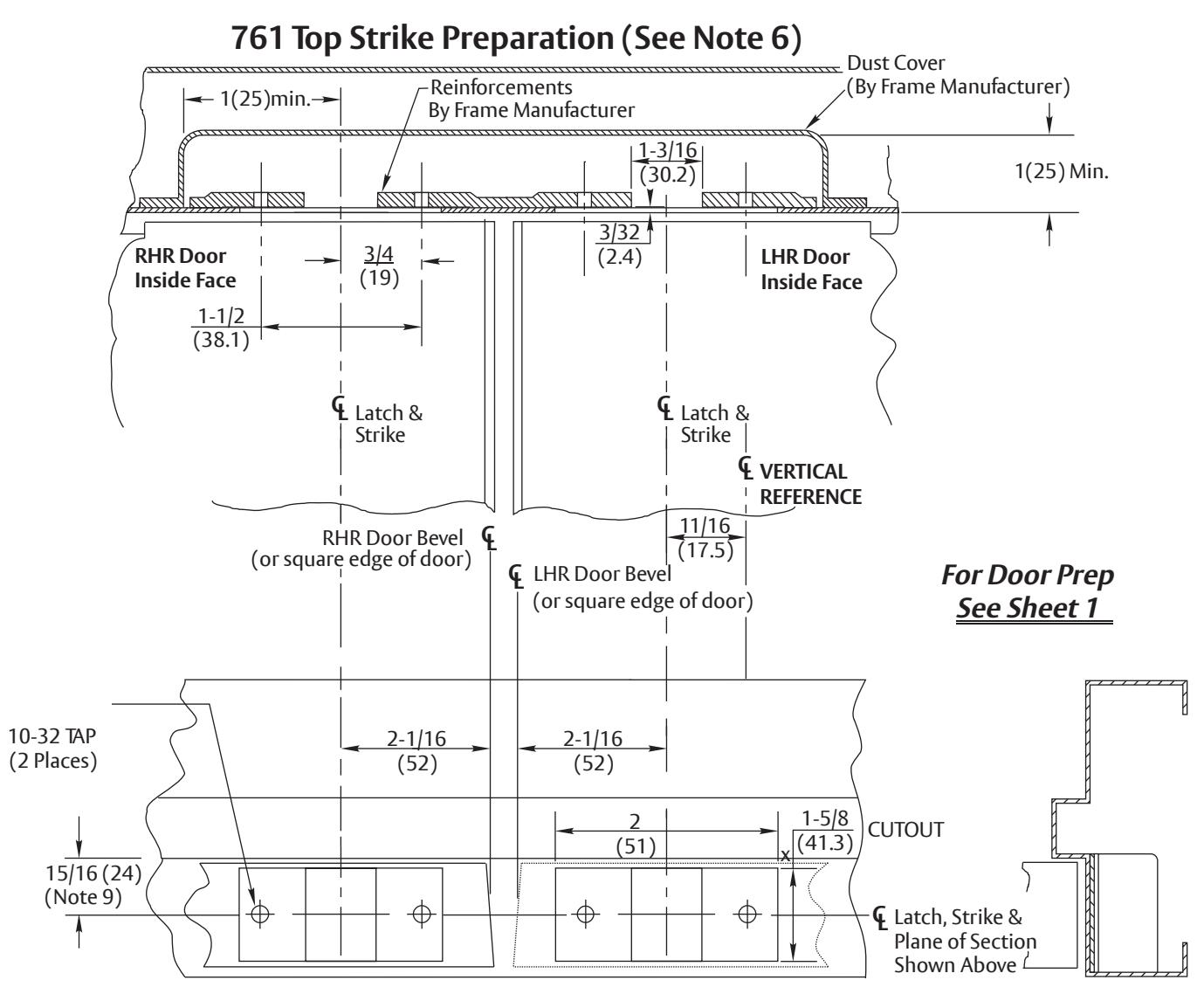

• Drawing shows elevation (frame bisected on strike center), bottom view looking up and side view. 6.
• Provide adequate structural support to maintain door integrity after device installation with power tools, door use, or abuse. 7.
• For recommended door reinforcements see template 7400-0000. 8.
• Door located in frame for door silencers. If not used, compensate this dimension to seat the door against the stop without rattle. 9.

• Device mount to hinge stile (not shown) requires hole location and preparation during device installation. 10.
• For outside trim preparation see appropriate trim template. 11.
• Holes for optional SNB (Required for unreinforced doors): 9/32 (7.00) dia., inside door face; 3/8 (9.50) dia., outside door face. 12.
• Only for 2160F90-LBR & 2160F90-10LBR in door pairs: Reinforce door as needed for heat activated interlocking bolt. See template 7470-1700. 13.
• 5/8 (16.00) dia. x 3/4 (19) deep hole in floor, required. 14.
• For "LBR" suffix, omit bottom door prep, and floor strike. 15.
• Maximum thickness 5/32 (4.0) when outside escutcheon trim is used. 16.
• Bottom bolt should retract to 1/8 (3.2) above floor strike. Floor coverings in the door path must be laid accordingly. 17.
