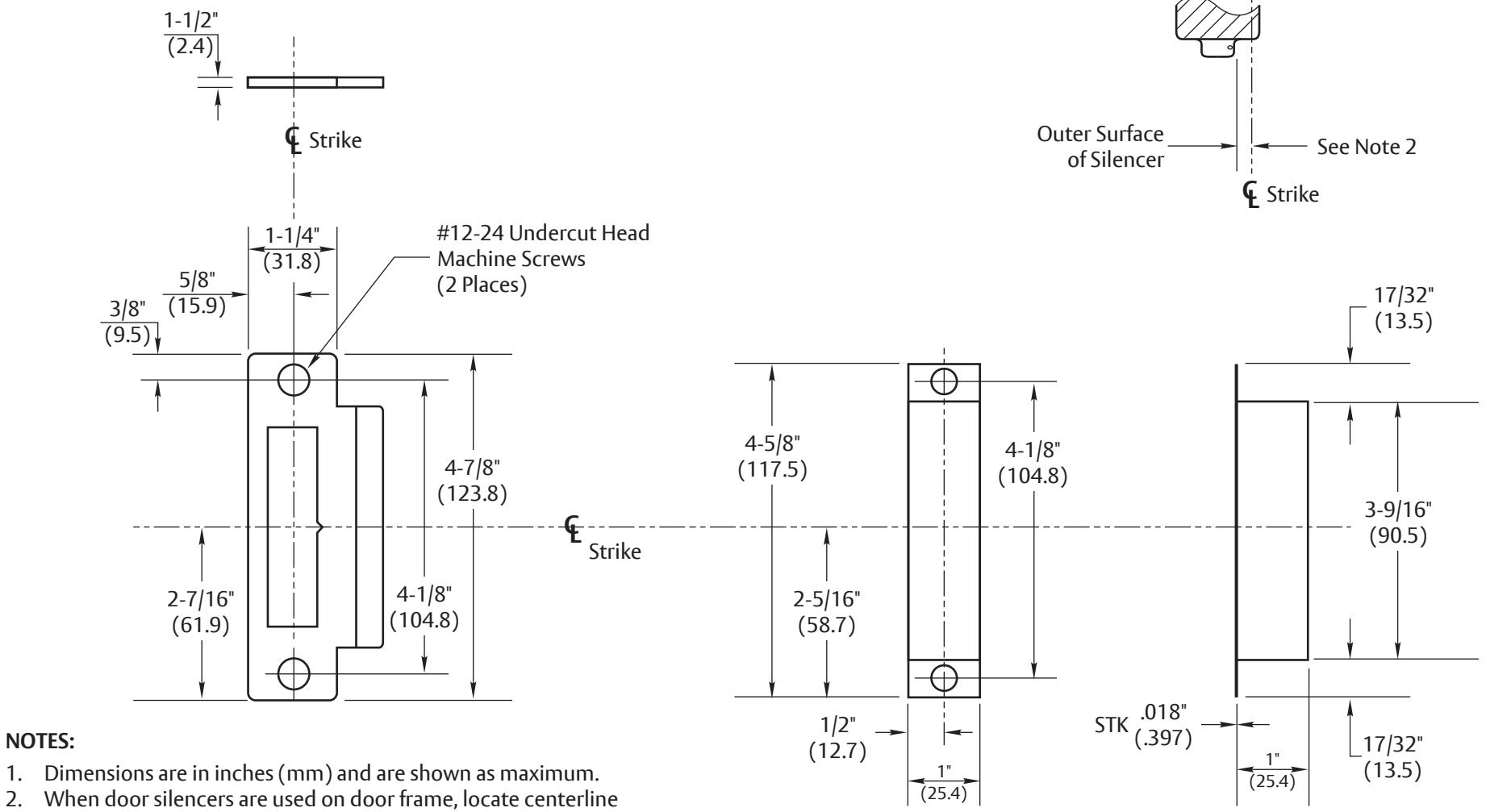

ASSA ABLOY ACCENTRA 202 Strike Box for 8800 Series Mortise Locks H.M. and Wood Frame Template_7088-0001

1. Dimensions are in inches (mm) and are shown as maximum.

of strike from surface of door silencer as shown.

Detail of Strike Box

Experience a safer and more open world

NOTES:

Copyright © 2009, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

202 Strike Box for 8800 Series Mortise Locks H.M. and Wood Frame Preparation

Template Number: 7088-0001

Sheet: 1 of 1

Date: 12/23
