ASSA ABLOY ACCENTRA 1900 Series PA1912, 4, PA1915, 6 Door Closer Parallel Hold Open Arm_7319-0208

1/4-20 Machine Screws or

(13) 3/4 " (19) 3 " (76) 1-3/8 " (35) 3/4 " (19) 1 " (25) 3/4 " (19) 1-1/2 " (38) 1/4"-20 Machine Screws or #14 Wood Screws (4 Holes) #14 Wood Screws (4 Holes) Prepare these holes only when No: 1988 Drop Plate is used

4-1/8 " (105)

For Closer or Drop Plate

Openings to 130°- 8-1/2 " (216)

Openings over 130°- 6-1/2 " (165)

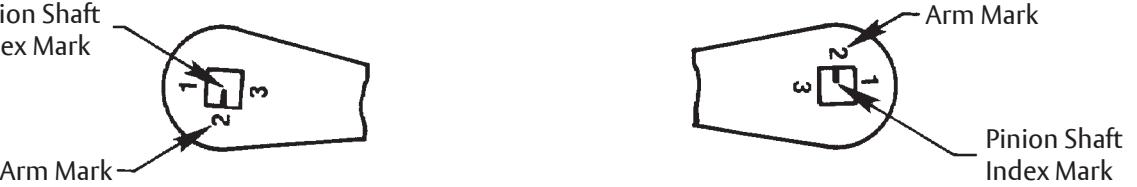

Indexing of Main Arm

Measurements are given in inches (mm)

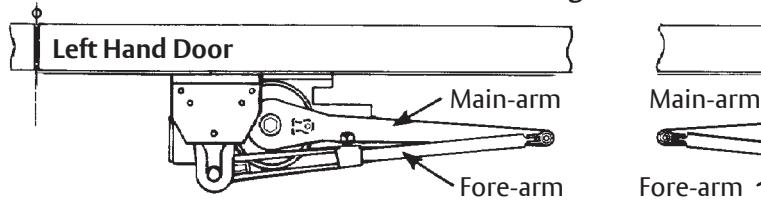

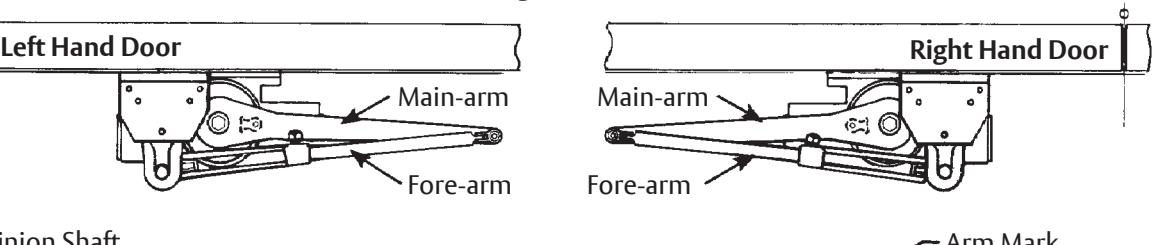

Do Not Scale Drawing Left Hand Door Shown

Copyright © 2006, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

Pinion Shaft Index Mark

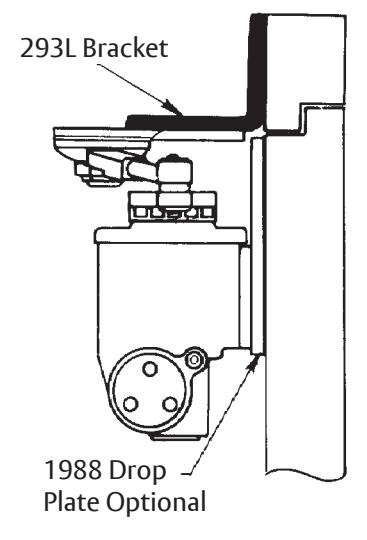

PA1910 Series Door Closers with 293L Bracket Hold Open Parallel Arm Installation With or without No. 1988 Drop Plate Closer Sizes PA1912/4 or PA1915/6 Date: 12/23

Template Number: 7319-0208

Sheet: 1 of 1
