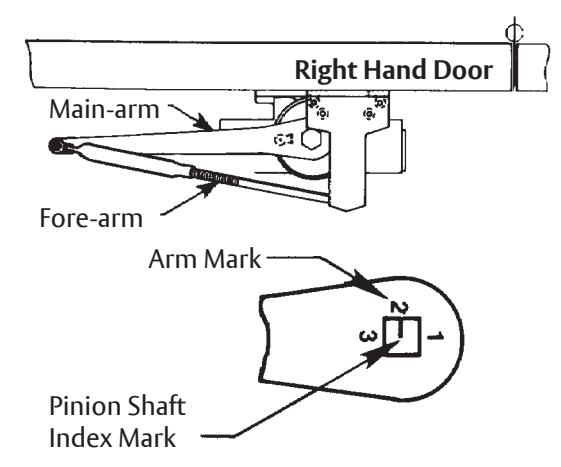

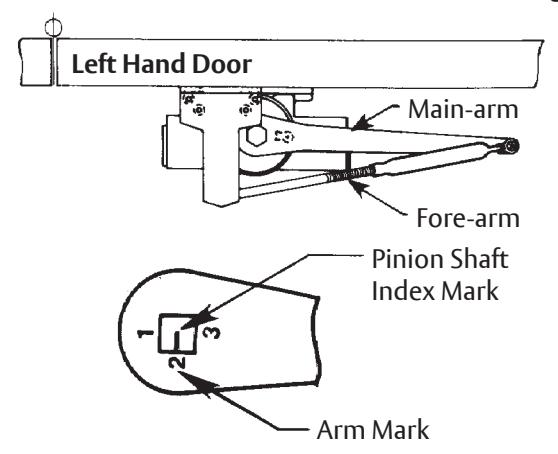

Indexing of Main Arm
Measurements are given in

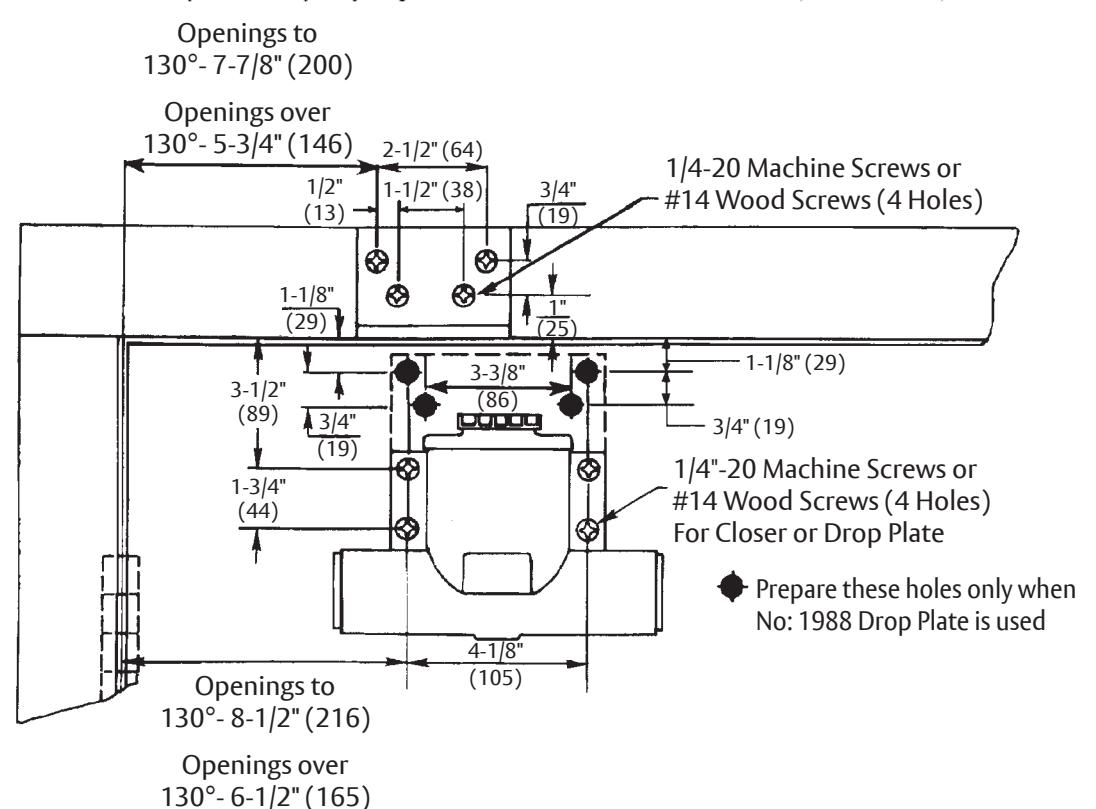

Do Not Scale Drawing Left Hand Door Shown
Experience a safer and more open world
Copyright @ 1997, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

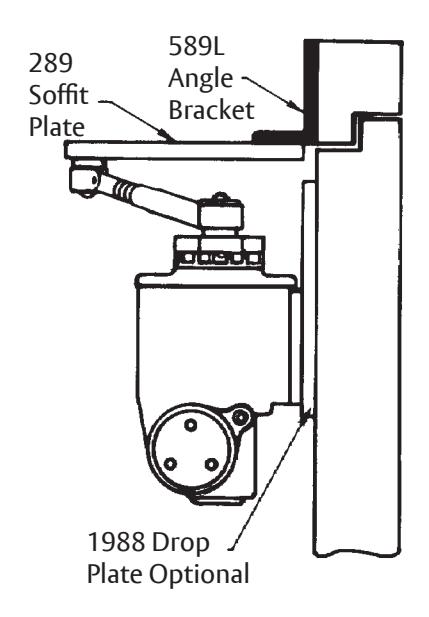

PA1900 Series Door Closers with 589L Angle Bracket and 289 Soffit Plate Non Hold Open Parallel Arm Installation With or without No. 1988 Drop Plate Closer Sizes PA1902/4 or PA1905/6
Template Number: 7319-0205 Sheet: 1 of 1
Date: 12/23
