ASSA ABLOY ACCENTRA 1900 Series PA1902, 4, PA1905, 6 Door Closer Parallel Non-Hold Open Arm_7319-0202

Copyright © 1980, 2009, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

Openings over 130°- 6-1/2 " (165)

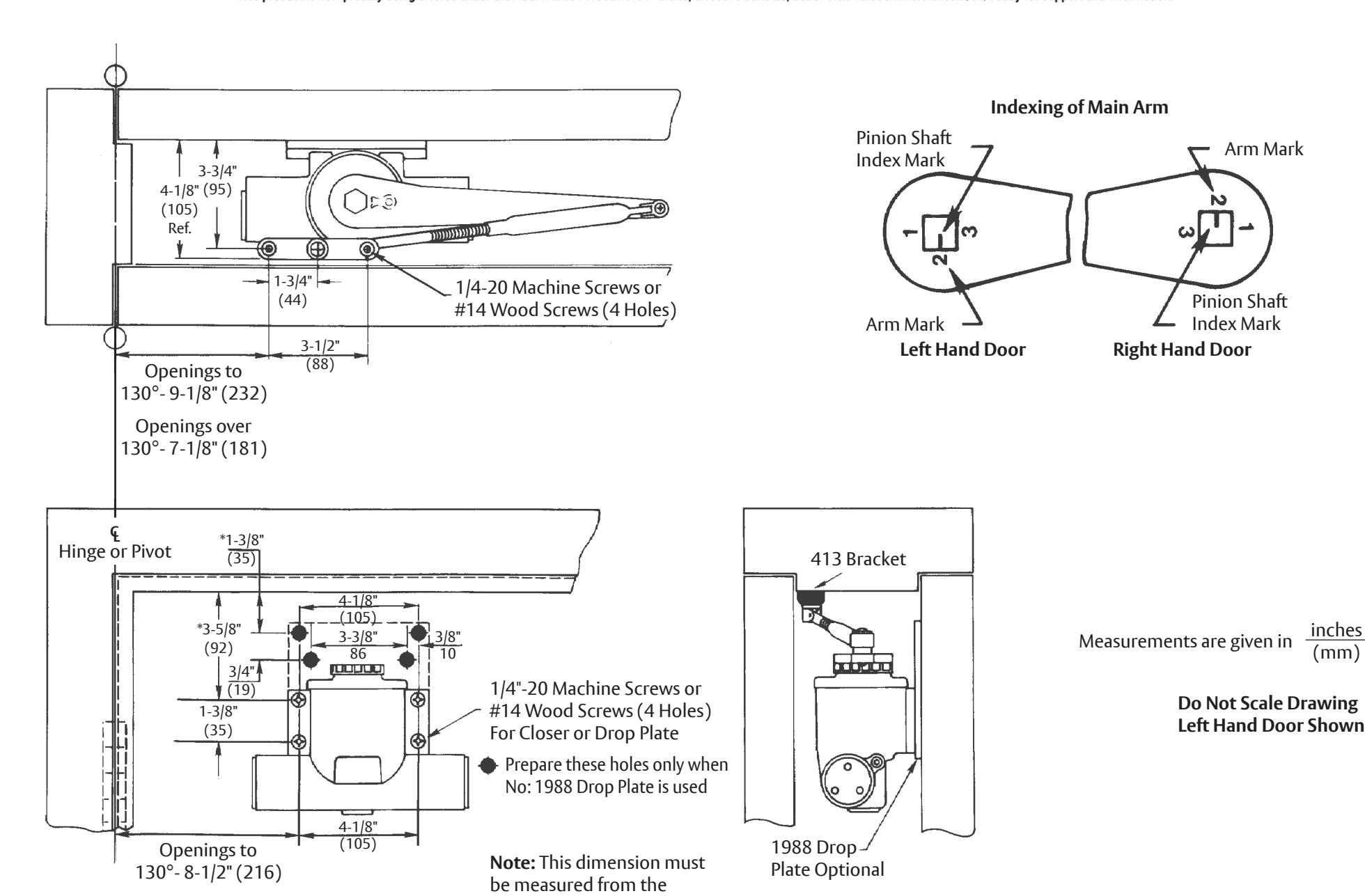

PA1900 Series Door Closers with 413 Bracket Non Hold Open Parallel Arm Installation With or without No. 1988 Drop Plate Closer Sizes PA1902/4 or PA1905/6 Date: 12/23

same surface that the 413 Bracket is mounted to.

Template Number: 7319-0202

Sheet: 1 of 1

1-800-438-1951 www.assaabloy.com
