ASSA ABLOY ACCENTRA 1900 Series PA1902, 4, PA1905, 6 Door Closer Parallel Non-Hold Open Arm_7319-0201
Open the original PDF document
View PDF
Do Not Scale Drawing Left Hand Door Shown
Copyright © 1997, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

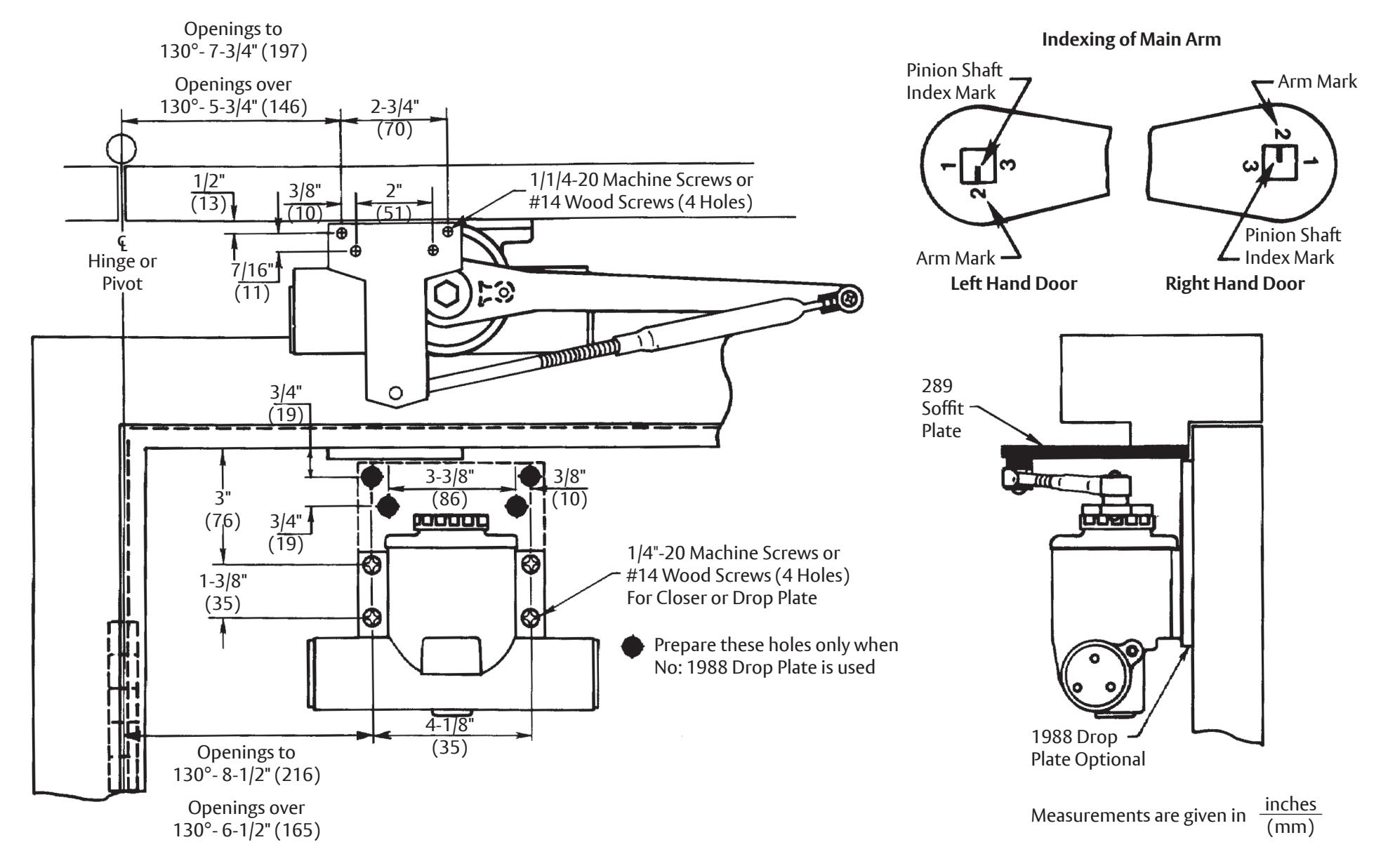

PA1900 Series Door Closers with 289 Softfit Plate Non Hold Open Parallel Arm Installation With or Without No. 1988 Drop Plate Closer Sizes PA1902/4 or PA1905/6
Template Number: 7319-0201 Sheet: 1 of 1
Date: 12/23
1-800-438-1951 www.assaabloy.com
