ASSA ABLOY ACCENTRA 1900 Series Door Closer Regular Non-Hold Open Arm with 291(A) Brackets Sizes 2-4_7319-0102
Open the original PDF document
View PDF
| Bracket | Dim "A" | Dim "B" | |
|---|---|---|---|
| Max. | Min. | Max. | |
| 291 | 2-¼/(57) | 1-½/(38) | 2/(51) |
| 291A | 3/(76) | 2-3/4/(70) | |

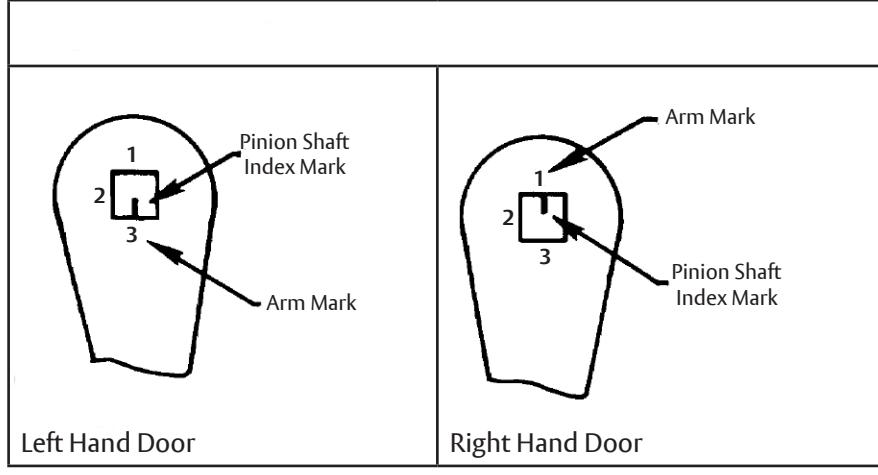

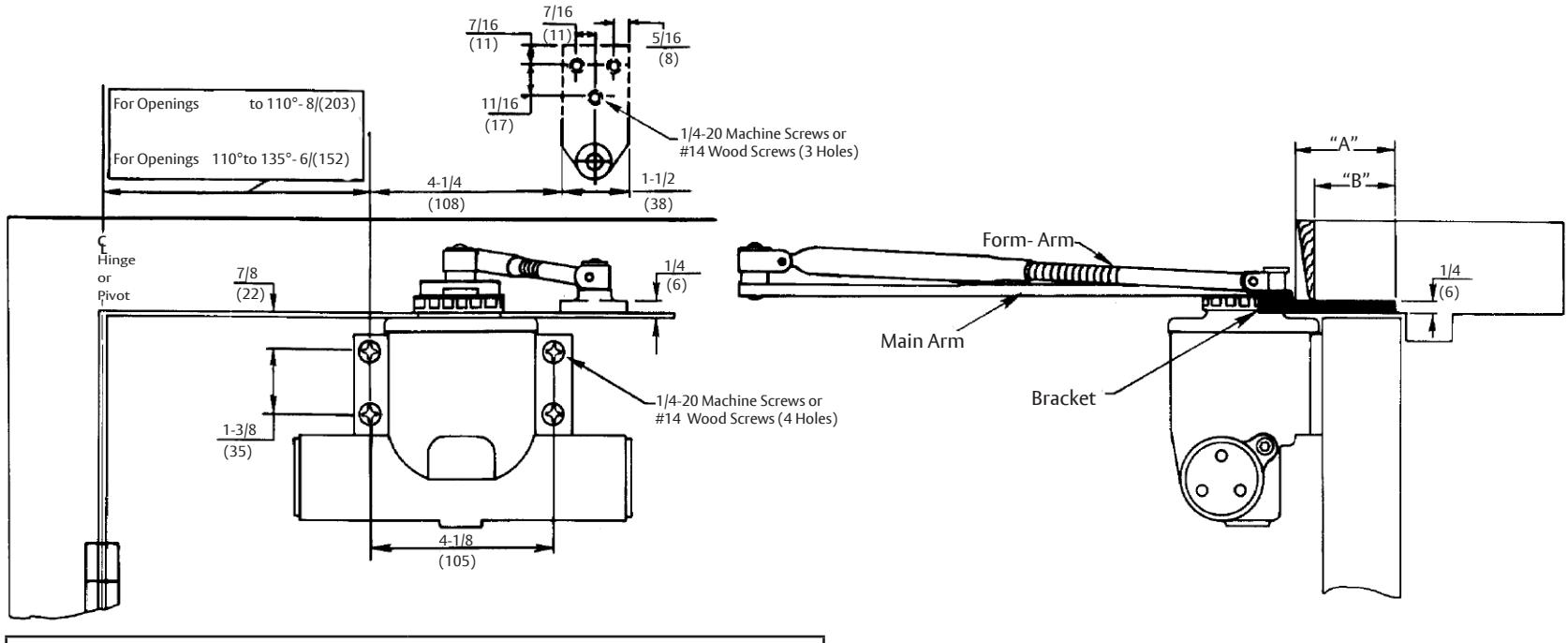

This template covers all regular arm installations to 135°
Measurements are given in inches/mm
Do Not Scale Drawing Right Hand Door Shown
Experience a safer and more open world
Copyright @ 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
1900 Series Door Closers with 291 or 291A Bull-Nose Bracket Non Hold Open Regular Arm Installation Closer Sizes 1902/4 or 1905/6
Template Number: 7319-0102 Sheet: 1 of 1
