ASSA ABLOY ACCENTRA 1900 Series Door Closer Regular Non-Hold Open Arm Sizes 2-4, 5 or 6 Template_7319-0101

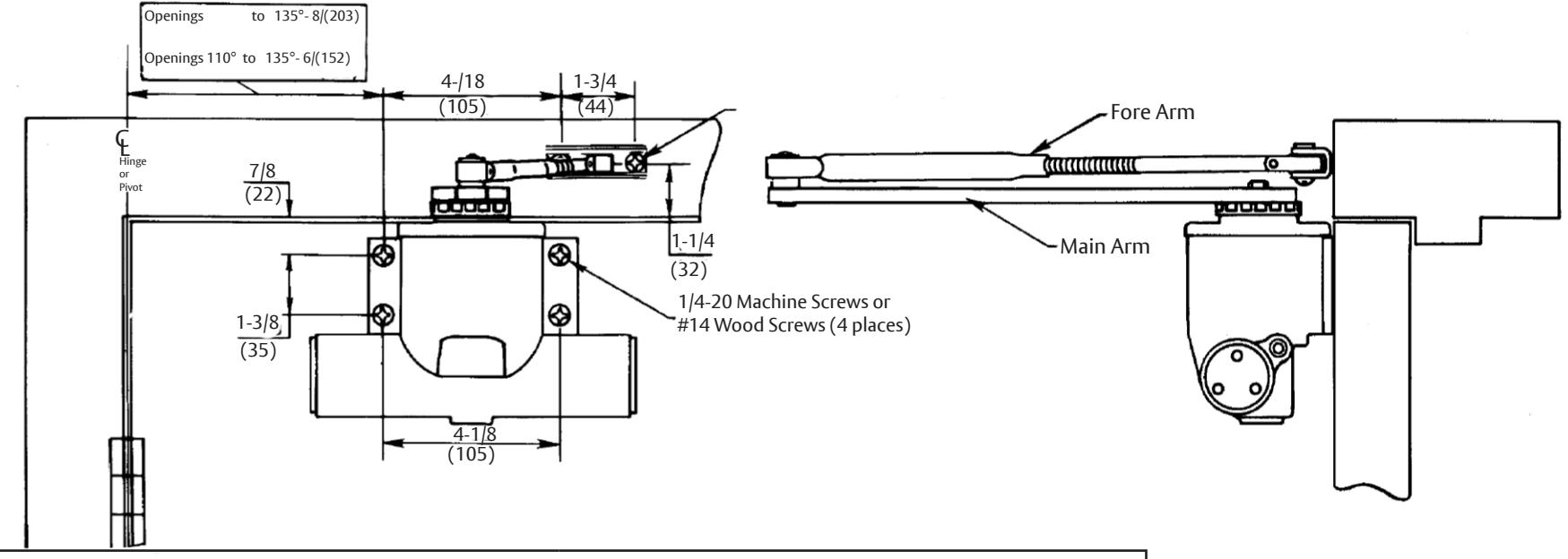

This template covers all regular arm installations to 135°

Measurements are given in inches/mm

Do Not Scale Drawing Right Hand Door Shown

Copyright © 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

1900 Series Door Closers Non-Hold Open, Regular Arm Installation Closer Sizes 1902/4 or 1905/6 Date: 12/23

Template Number: 7319-0101

Sheet: 1 of 1

1-855-557-5078 www.assaabloy.com
