ASSA ABLOY ACCENTRA 1900 Series 1912, 4, 1915, 6 Door Closer Regular Hold Open Arm with 292_7319-0104

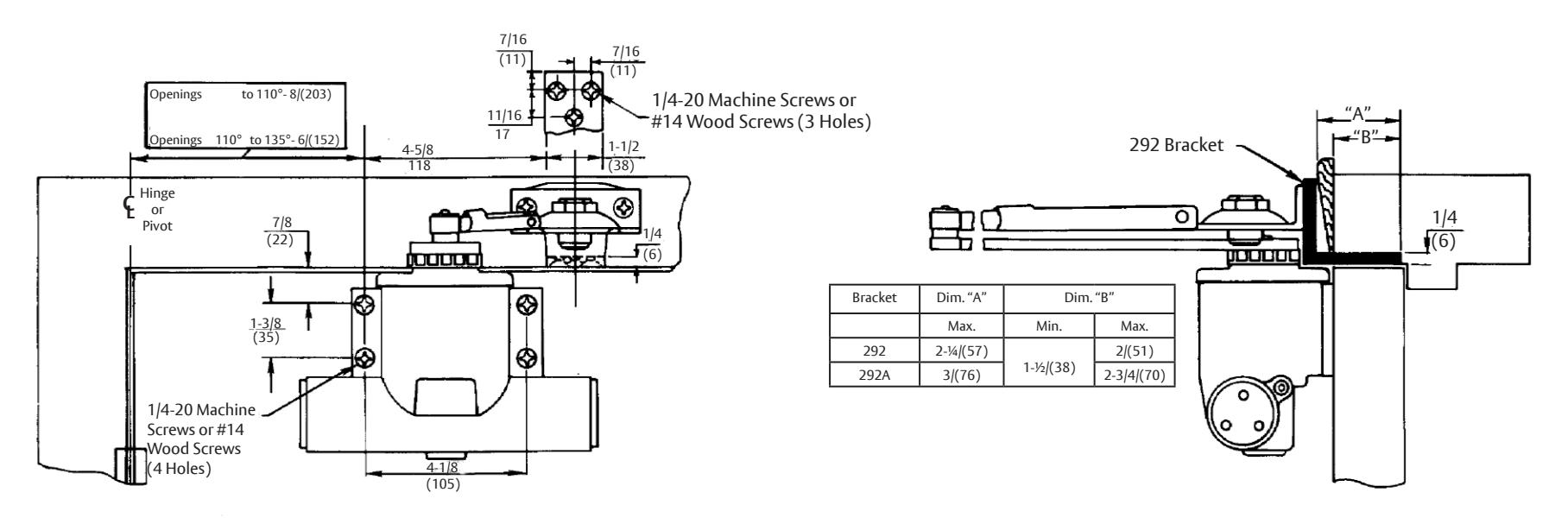

This template covers all holders arm installations from 90° to 135°

Measurements are given in inches/mm

Do Not Scale Drawing Right Hand Door Shown

Experience a safer and more open world

Copyright © 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

1910 Series Door Closers with 292 or 292A Bull Nose Bracket Hold Open Regular Arm Installation Closer Sizes 1912/4 or 1915/6

Template Number: 7319-0104

Sheet: 1 of 1

Date: 12/23
